Installing the 9VBattery and Fuses
A9Vbatteryissuppliedwiththeinverteraccessories.Installthe9Vbatteryintheholderonthetopboard
oftheConnectionUnitandconnectittothebatterypad.

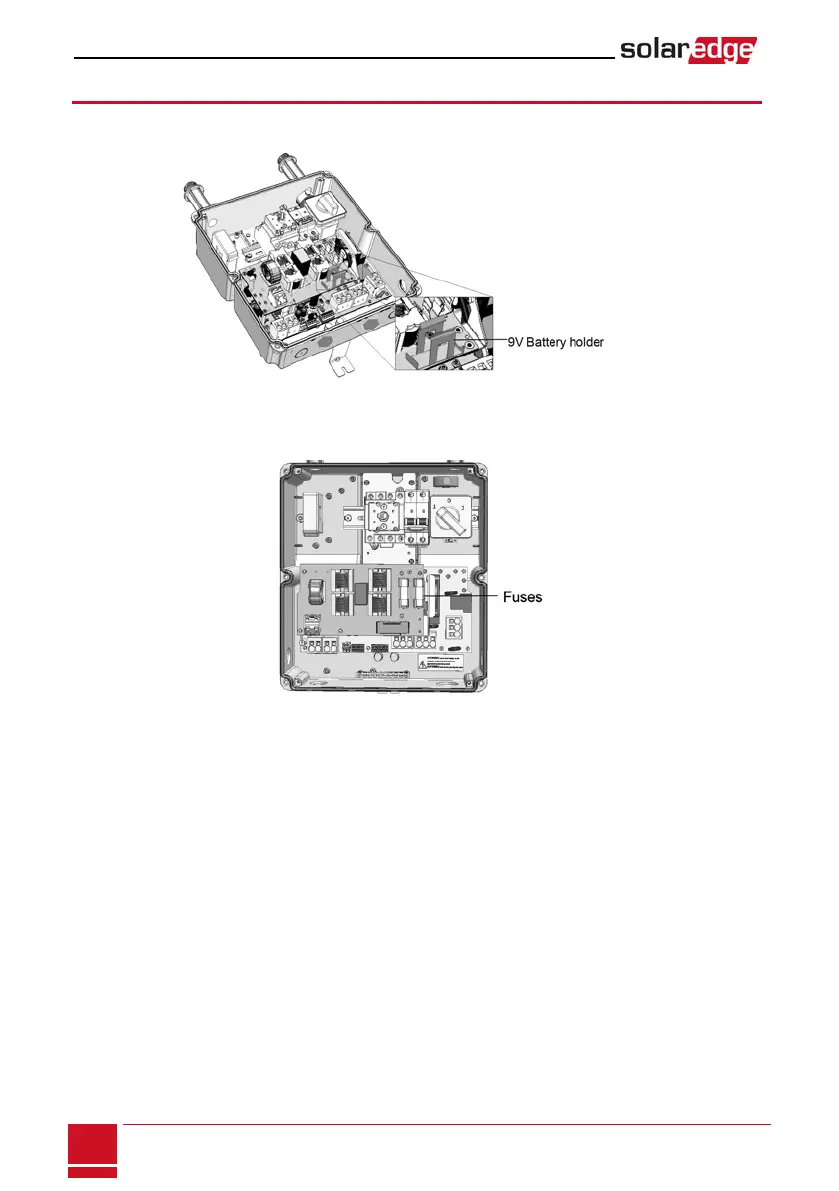

Figure 18: The battery holder
Two25Afusesaresuppliedwiththehighpowerinverters.Installthefusesintheholdersonthetopboard
oftheConnectionUnit.
Figure 19: Connection Unit fuses
