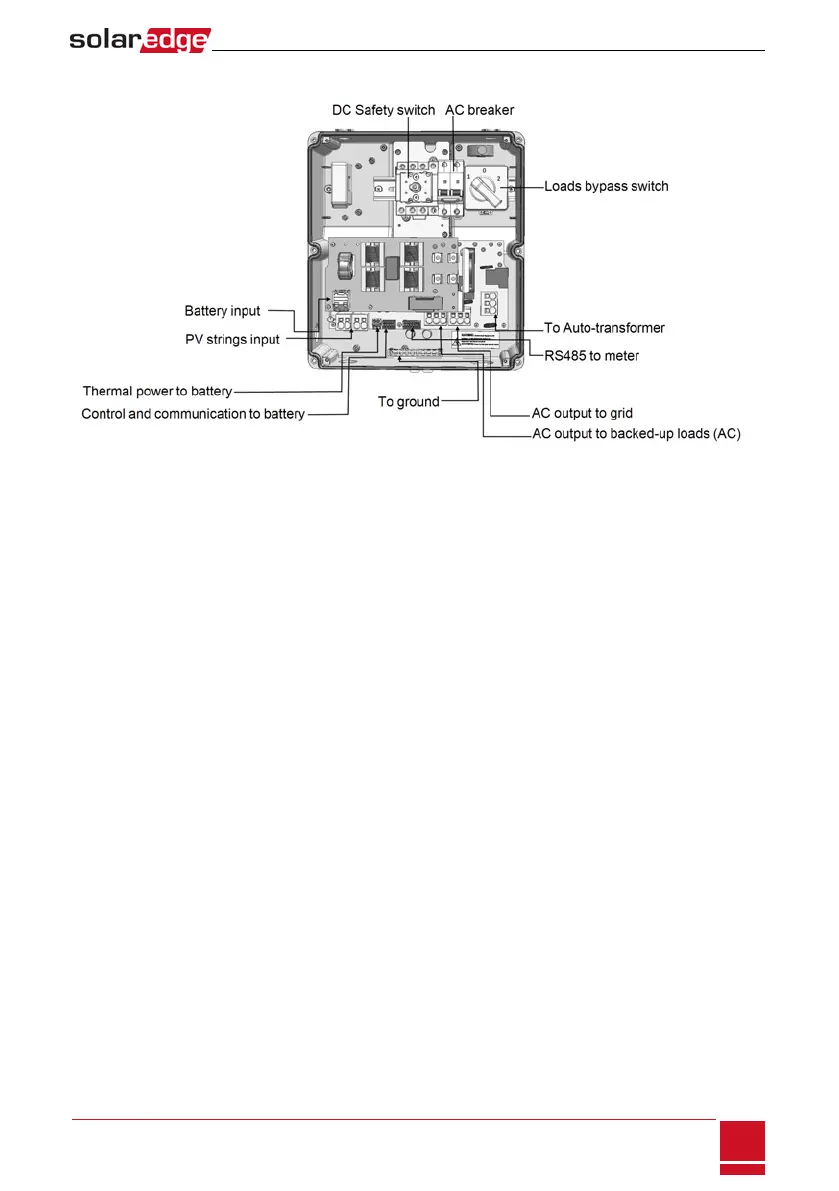

ThefollowingfigureshowstheconnectionsintheConnectionUnit:

Figure 17: The Connection Unit connections

