5 Fit the
outer slide
members to
the rack,
as shown in
Fig
2.
1
1
Note that
the
tapped holes
in the nut
plate are
positioned
off-centre
to provide
maximum
lateral
adjustment.
Fit the plates,
as
shown, with
the
holes offset
towards
the rack
exterior.
Fitting
one end
of an
outer member
is made
easier if the other
end
is
supported.
Hook the bracket
at the
other end over
an M5 screw
pushed into
the top
caged nut.
Tighten
the M5 screws
securing
the outside
slide members
until each
member
is held
moderately
firmly in
the rack,
approximately
in
the centre of its
travel.
The
members must, however,
be
free
to take
up any adjustment
when the
instrument
is
first
fitted into the
rack.

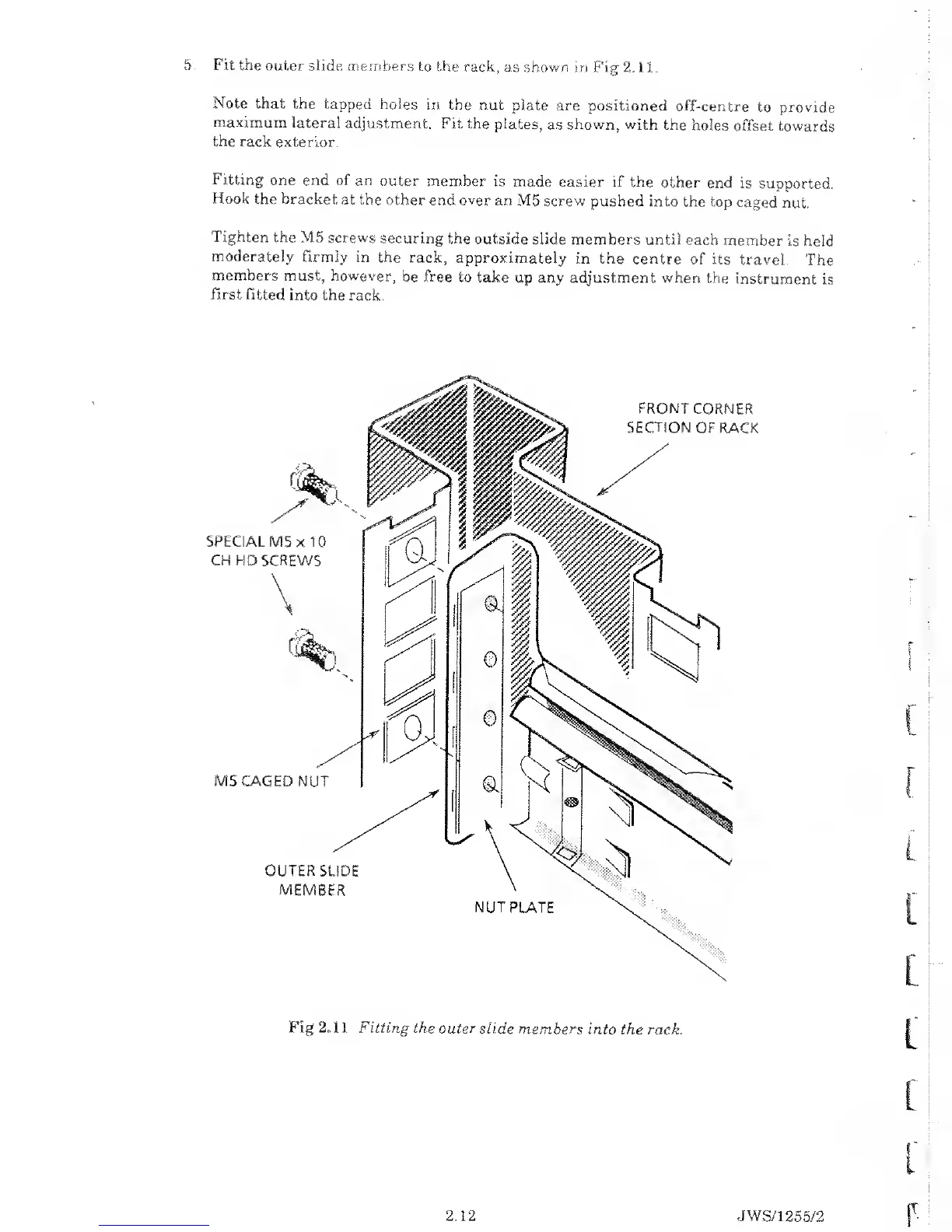

Fig 2„ 1 1. Fitting the outer
slide members
into the rack.
2.12 JWS/1255/2
