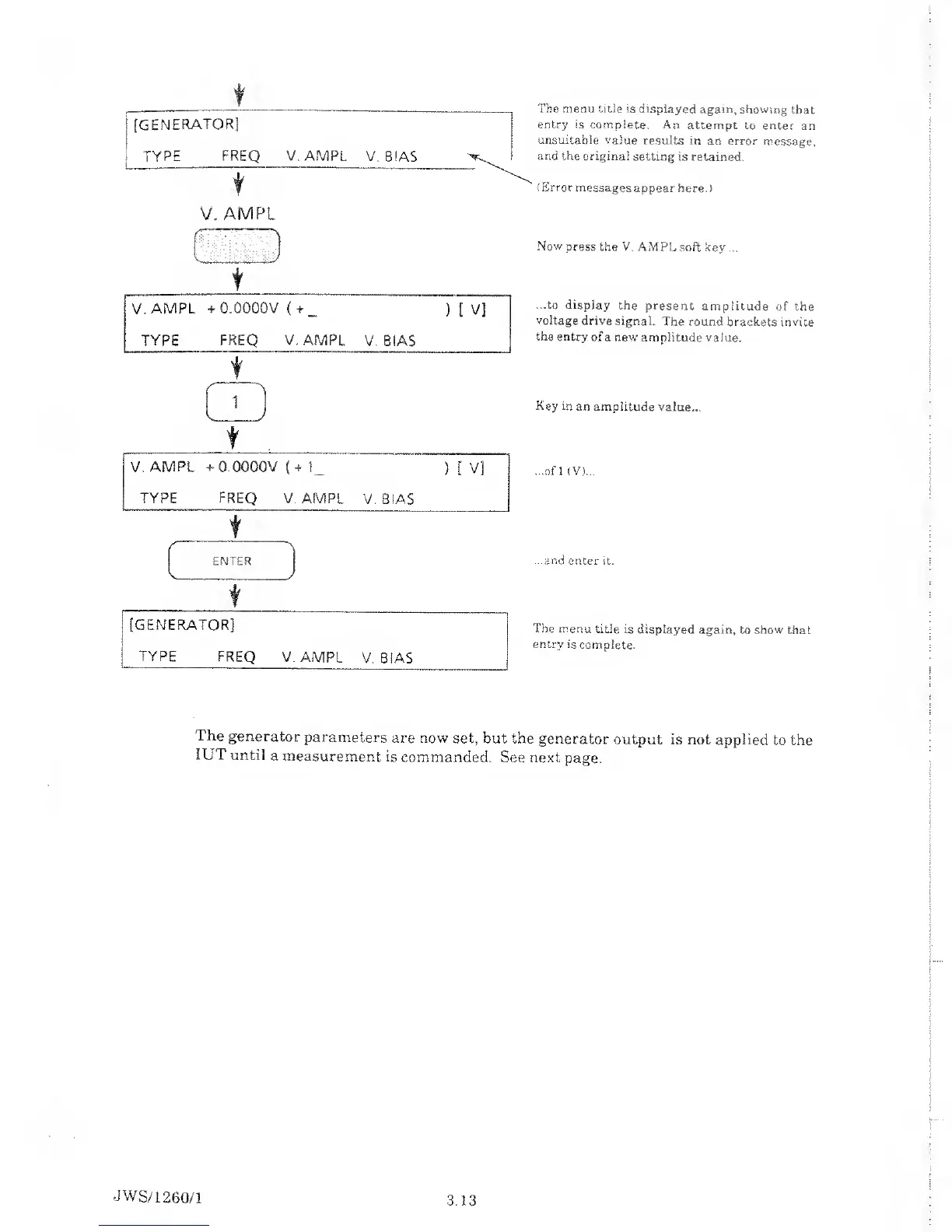

[GENERATOR]
TYPE
FREQ
V.AMPL
V. BIAS
*
The menu title is
displayed again, showing
that
entry is
complete. An
attempt to enter
an
unsuitable value
results in
an error message,
and
the original
setting is retained.
(
Error
messages
appear here .
)
V. AMPL
V
AMPL
+
0.0000V
(
+
_
)
[
V]
TYPE FREQ V.AMPL
V. BIAS
f
Now
press the V.
AMPL soft key
...
...to display
the present
amplitude
of the
voltage drive
signal.
The round brackets
invite
the entry
of
a
new
amplitude value.
Key in
an
amplitude value...
...ofl (V)...
...and
enter it.
The menu
title is displayed
again, to show
that
entry is
complete.
The
generator
parameters
are now
set, but the generator
output is
not applied
to the
IUT
until a
measurement is
commanded..
See next
page.
