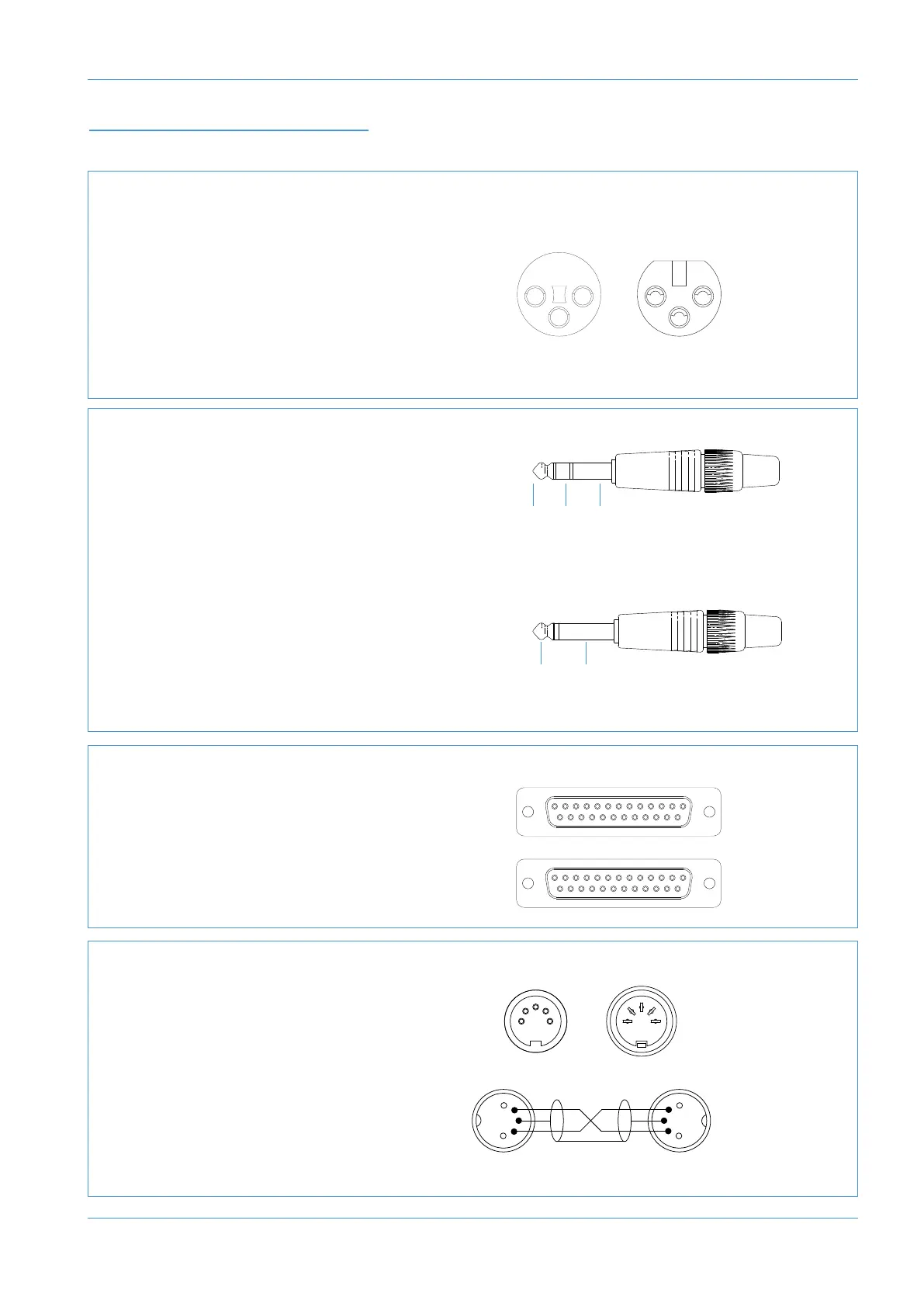

BCONNECTOR DETAILS
Connectors Viewed From Wiring Side
12345678910111213
14 15 16 17 18 19 20 21 22 23 24 25
12345678910111213
141516171819202122232425
D-Type Multipin
25-way
Dimensions: 55 x 15mm (approx)
Cable Dia: 8mm (typical)
Plug
Socket
Connectors Viewed From Wiring Side
Plug
Socket
1
2
3
1
2
3
XLR 3-PI
N
Dimensions: 19 x 60mm (approx)
C
able Dia: 4mm - 8mm (typical)
Pinout for balanced audio:
Pin 1 Screen
Pin 2 Hot (+ve)
Pin 3 Cold (–ve)
Connectors Viewed
From Wiring Side
Plug–Plug
MIDI Lead
Plug
Socket
2
5
3
4
1
2
5
3
4
1
DIN 5-PIN 180°
Dimensions: 15mm dia.
Cable Dia: 4mm - 7mm (typical)
Pinout used for MIDI signals:
Pin 1 n/c
Pin 2 Screen
Pin 3 n/c
Pin 4 Midi +
Pin 5 Midi -
1
2
4
5
3
1
2
4
5
3
1/4" TRS JACK
Pinout for balanced audio inputs and outputs:
Tip Hot (+ve)
Ring Cold (-ve)
Sleeve Screen
Pinout for Instrument / Footswitch* inputs:
Tip Signal Hot (+ve) / switch
Sleeve Screen / 0V
*Connect Tip to Sleeve to trigger input
Stereo Plug
Mono Plug
Tip
(T)
Ring
(R)
Sleeve
(S)
Tip
(T)
Sleeve
(S)
