THE TFT SCREEN
The centre section TFT screen provides access to a number of console configuration items, in addition to its primary role
as plug-in editor.
The 16 boxes at the base of the screen indicate the functions assigned to the 16 buttons in two rows of eight below the
s
creen.
The four boxes above them indicate the functions assigned to the central four buttons in the row of six. Note that the
two outside buttons are used for scrolling left and right, where relevant.

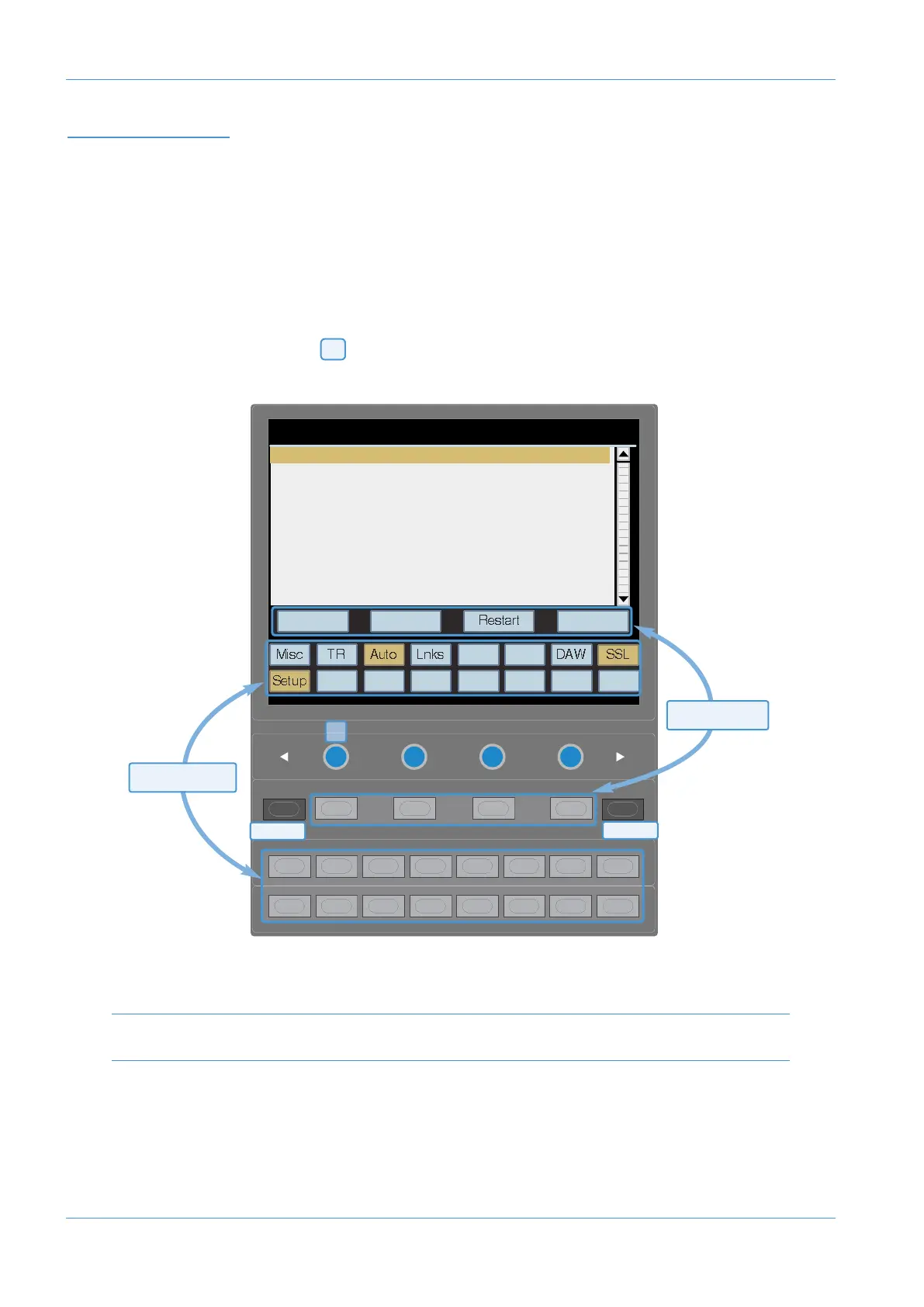

The picture below provides example illustrations of how the screen and controls relate.
To change a setting: use the first V-pot to select the item, then click the V-pot to enter adjustment mode. Turn the
V-pot to the desired setting and click a second time to save the setting.
Note that a VGA output on the back of the console allows the console’s screen to be displayed on an external monitor.
See Section 1 for details.
1
Analogue Operations
Page 3-2 AWS δelta Owner’s Manual
TR Auto LnksMisc DAW SSL
Setup
Restart
In Mix show : Channel names in Mix running
Project Testing :: Title
Latched Match and Play : OFF
Talkback switces are : Auto (Play)
Listen switch is : Auto (Play)
R
ed light switch is : Auto (Record)
MIDI connects via : Network
DAW 1 : Protocol HUI
Monitor Gain display : Gain (Off to 0dB)
M
onitor set CAL level is : 85
DAW 2 : Protocol Nuendo
1
16 FUNCTION KEYS
4 FUNCTION KEYS
SCROLL R
SCROLL L
