DIRECT OUTPUT
By default, the channel direct output is sourced post-fader. To source it pre-fader, press the DIRECT PRE/EFX (948:
CHOP PRE/EFX) switch, located above the CUE ST gain pot.
DIRECT OUTPUTS AND EFX
The EFX system allows redundant auxiliary send controls to be used to control the channel’s send to the direct output.
T
o employ EFX for any channel, select the auxiliary send control which is least likely to be needed in the channel (Stereo
Cue, FX1 or FX2), and assign it to the EFX system:
Note also that only one auxiliary send control from each channel may feed the EFX system – if a second auxiliary send
is assigned to EFX within the same channel, it will replace the originally assigned auxiliary.
TRACK BUS ROUTING

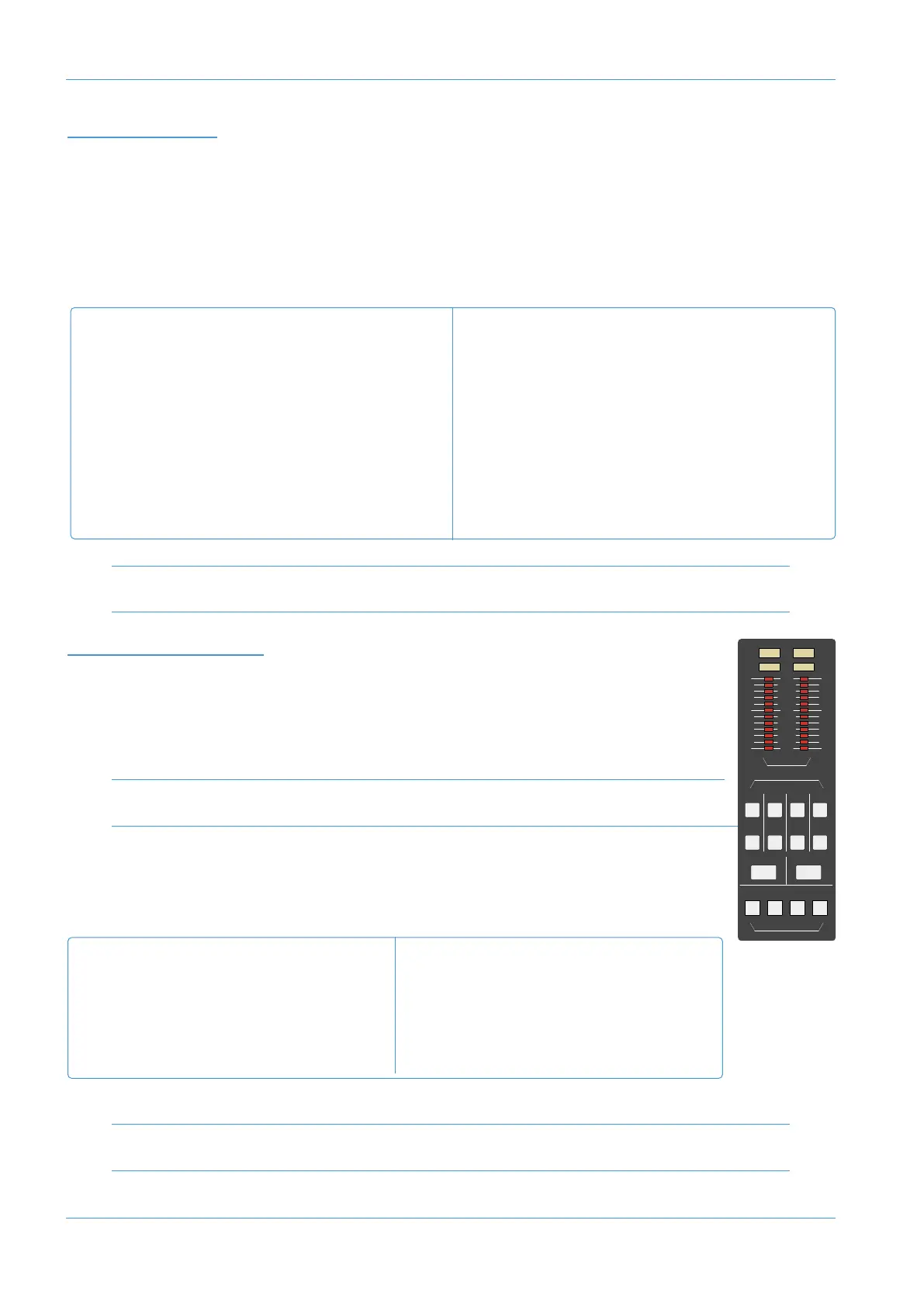

Channel signals can be routed to the track busses using the eight numbered switches immediately
underneath the channel meters. By default, signals are sent post-fader. To source the send pre-fader or
post pan-control, press the PRE or PAN switches beneath the track bus selection switches. When the
source is post-pan, the odd-numbered track busses receive the left component, and the even-numbered
busses receive the right component.
Note that the Track busses are designed for external tracking and not for internal sub-grouping – they
cannot be routed to the Mix and Rec busses.
TRACK BUSSES AND EFX:
The EFX system allows redundant auxiliary send controls to be used to control the channel’s send to
the Track busses. To employ EFX for any channel, select the auxiliary send control which is least likely
to be needed in the channel (Stereo Cue, FX1 or FX2), and assign it to the EFX system:
The selected gain pot will now allow you to adjust the level being sent to any active track busses.
Note that only one auxiliary send control from each channel may feed the EFX system – if a second auxiliary send is
assigned to EFX within the same channel, it will replace the originally assigned auxiliary.
AWS 916-924
Press the EFX button beside the gain pot. The
EFX LED will light. Check that EFX CHOP in
the Channel Setup screen is not selected, as this
employs the EFX on the direct channel output,
not the track busses.
AWS 948
Press and hold the ALT/EFX SEL switch
below the FX controls and press the relevant
gain pot twice. The EFX LED will light. Check
that EFX CHOP in the Channel Setup screen
is not selected, as this employs the EFX on the
direct channel output, not the track busses.
Analogue Operations
Page 3-12 AWS δelta Owner’s Manual
All Consoles
12
3
4
5678
1
2IPOP
PRE
PAN
DYNAMICS
0
2
4
6
8
10
14
20
3
0
40
50
60
R
EC
OVER
O
VER
EDIT
TRACK ASSIGN
L R
AWS 916-924
Press the EFX button beside the send gain pot. The
EFX LED will light and the selected gain pot will now
control allow you to adjust the Channel output level.
In the Channel Setup screen, select EFX CHOP to
switch the channel’s EFX send from the Track bus to the
Channel output. The DIRECT PRE/EFX LED in the
channel strip lights green to indicate that the channel
output has been assigned to the EFX once the DIRECT
PRE/EFX switch is activated.
AWS 948
Press and hold the ALT/EFX SEL switch below the FX
controls and press the relevant gain pot twice. The EFX
LED will light and the selected gain pot will now control
allow you to adjust the Channel output level.
In the Channel Setup screen, select EFX CHOP to
switch the channel’s EFX send from the Track bus to the
Channel output. The CHOP PRE/EFX LED in the
channel strip lights green to indicate that the channel
output has been assigned to the EFX once the DIRECT
PRE/EFX switch is activated..
