Appendices
AWS δelta Owner’s Manual Appendices Page A-5

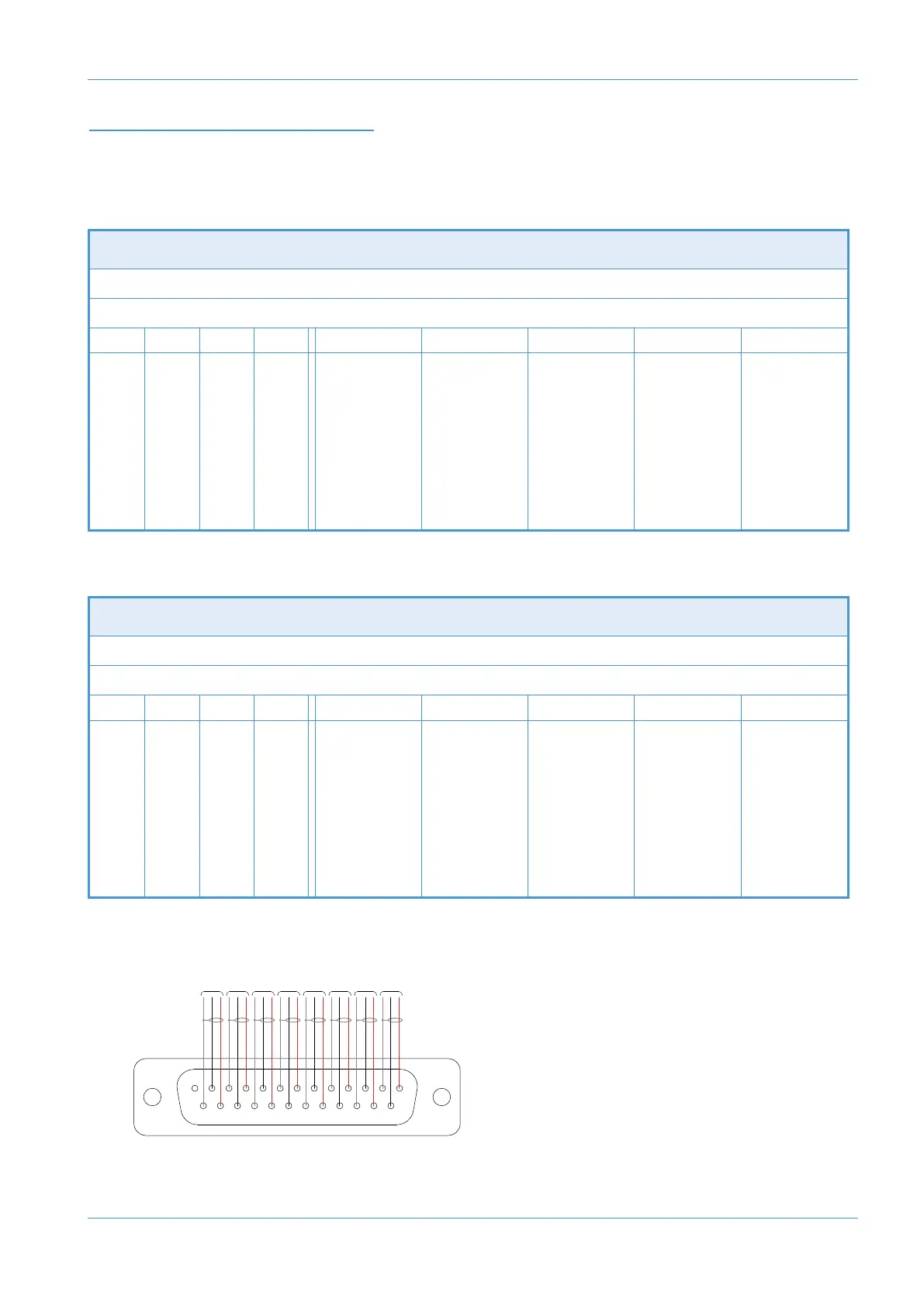

CCONNECTOR PINOUTS
Ext A 1–4 / Ext B / Meter Out / Monitor Insert
Location: Center section rear panel
Connector Type: 25-way D-type female
Cct Hot Cold Screen
Ext A In 1–4 Ext B input Meter Output Mon Ins Send Mon Ins Ret
1 24 12 25 Left 1-Left Left Left Left
2 10 23 11 Right 1-Right Right Right Right
3 21 9 22 Centre 2-Left Centre Centre Centre
4 7 20 8 LFE 2-Right LFE LFE LFE
5 18 6 19 Surr’ Left 3-Left Surr’ Left Surr’ Left Surr’ Left
6 4 17 5 Surr’ Right 3-Right Surr’ Right Surr’ Right Surr’ Right
7 15 3 16 – 4-Left Solo Left Lt to Decoder Lt from Enc
8 1 14 2 – 4-Right Solo Right Rt to Decoder Rt from Enc
Mon A / Mon B / 8 Track Bus Out / Cue FX Bus Out / Bus Inject
Location: Center section rear panel
Connector Type: 25-way D-type female
Cct Hot Cold Screen
Mon A Mon B 8 Track Out CUE/FX Out Cue Bus Inj
1 24 12 25 Main A Left Main B Left Bus 1 St Cue AL St Cue in AL
2 10 23 11 Main A Right Main B Right Bus 2 St Cue AR St Cue in AR
3 21 9 22 Main A Centre Main B Centre Bus 3 St Cue BL St Cue in BL
4 7 20 8 Main A LFE Main B LFE Bus 4 St Cue BR St Cue in BR
5 18 6 19 Main A Ls Main B Ls Bus 5 FX 1 FX 1 in
6 4 17 5 Main A Rs Main B Rs Bus 6 FX 2 FX 2 in
7 15 3 16 Mini A Left Mini B Left Bus 7 FX 3 FX 3 in
8 1 14 2 Mini A Right Mini B Right Bus 8 FX 4 FX 4 in
12345678910111213
1415161718192021
22232425
12345678
Signal arrangement for 8-circuit
25-way D-type connectors
