Printer Subordinate Systems
35

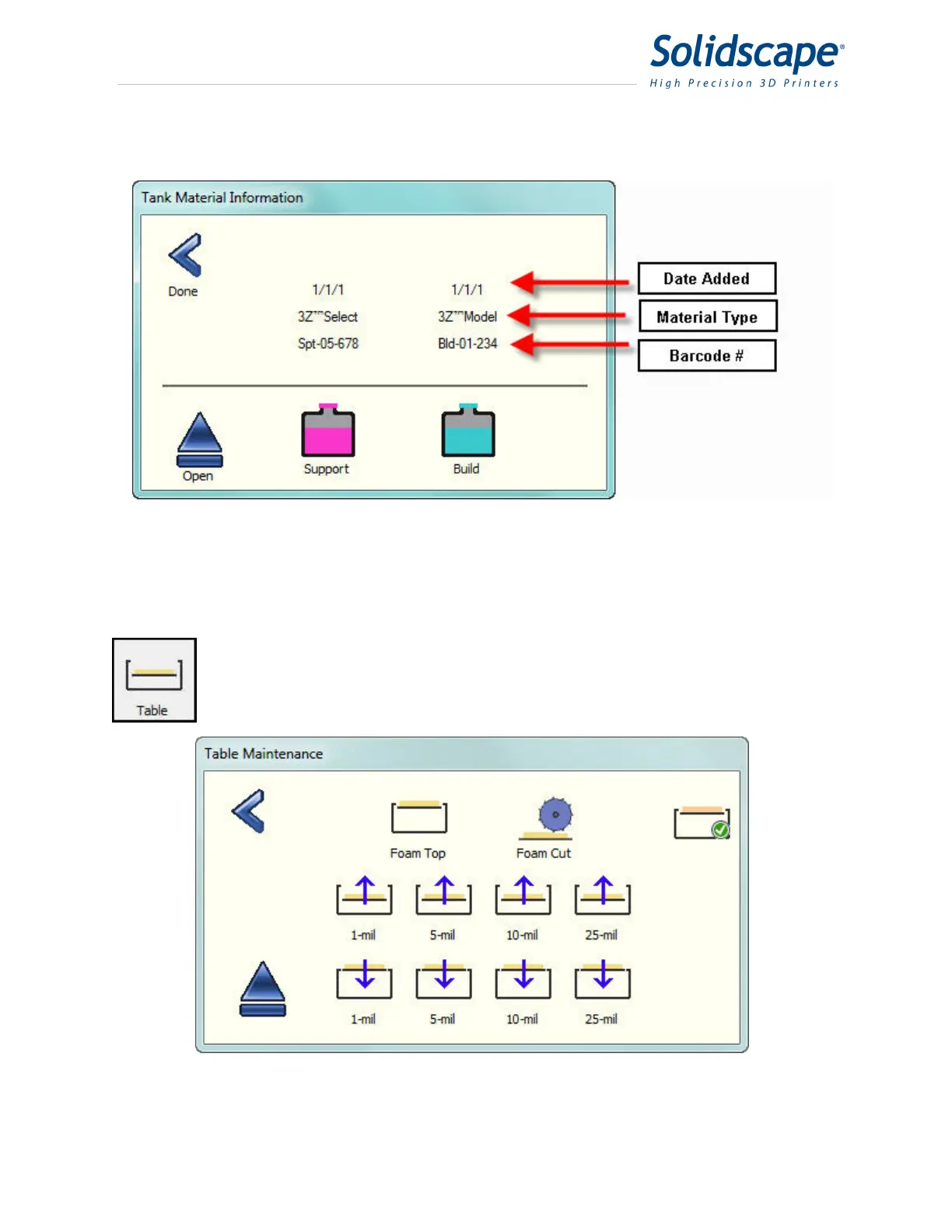

Figure 8-3 Tank Material Information
8.2.4 Table
Touching the table icon opens the Table Maintenance dialog box. Touching the
individual icons will allow the user to move the table up or down a specific amount,
or move the table to the up most position. The user can also perform a foam cut of
the 3Z Base. Each time the foam cut icon is pressed, the 3Z Base
will be cut .004 inches (.1016mm). See Figure 8-4 Table Position Information.
Figure 8-4 Table Position Information
