Solidscape 3Z Series - Windows Xp Static Ip Address Assignment; Figure 10-13 Starting Windows XP Control Panel

Connecting the Printer 51
radio button to select “Use the following IP address” and enter 192.168.0.1 for the IP address
and 255.255.255.0 for the subnet mask. Click the
button to close the Internet
Protocol Version 4 (TCP/IPv4) Properties window. Click the
button to close the
Local Area Connection Properties window. Close any windows that are still open and reboot the
PC.
10.8 Windows XP Static IP Address Assignment
Click on the Windows XP Start button and select “Control Panel”. In the control panel,
double click on the “Network Connections” icon (you may need to click the link “Switch to
Classic View” to see the Network Connections icon).


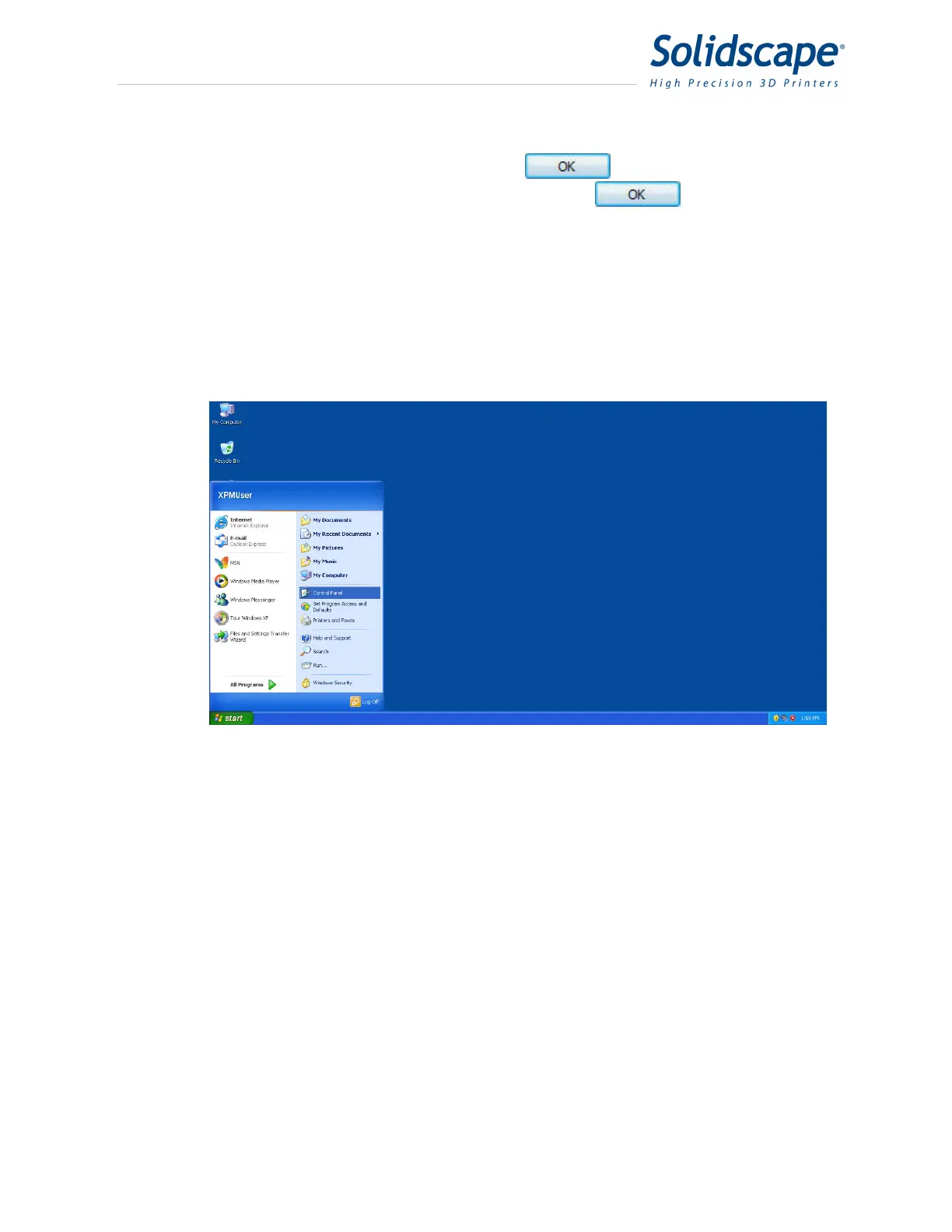

Figure 10-13 Starting Windows XP Control Panel
