(2) Remove the E ring of the pinch arm lifting
shaft with tweezers.
(3) Pull out the pinch arm assembly just above
from the pinch arm lifting shafts.
2. Pinch roller replacement
(1) Remove one screw, then remove the pinch
roller.
(2) Wipe the pinch shaft with soft cloth.
(3) Insert a new pinch roller into the pinch shaft
in the direction indicated by the figure and
tighten it with one screw.
[Tightening torque: 9 x 10
_2
N.m
{0.9 kgf.cm}]

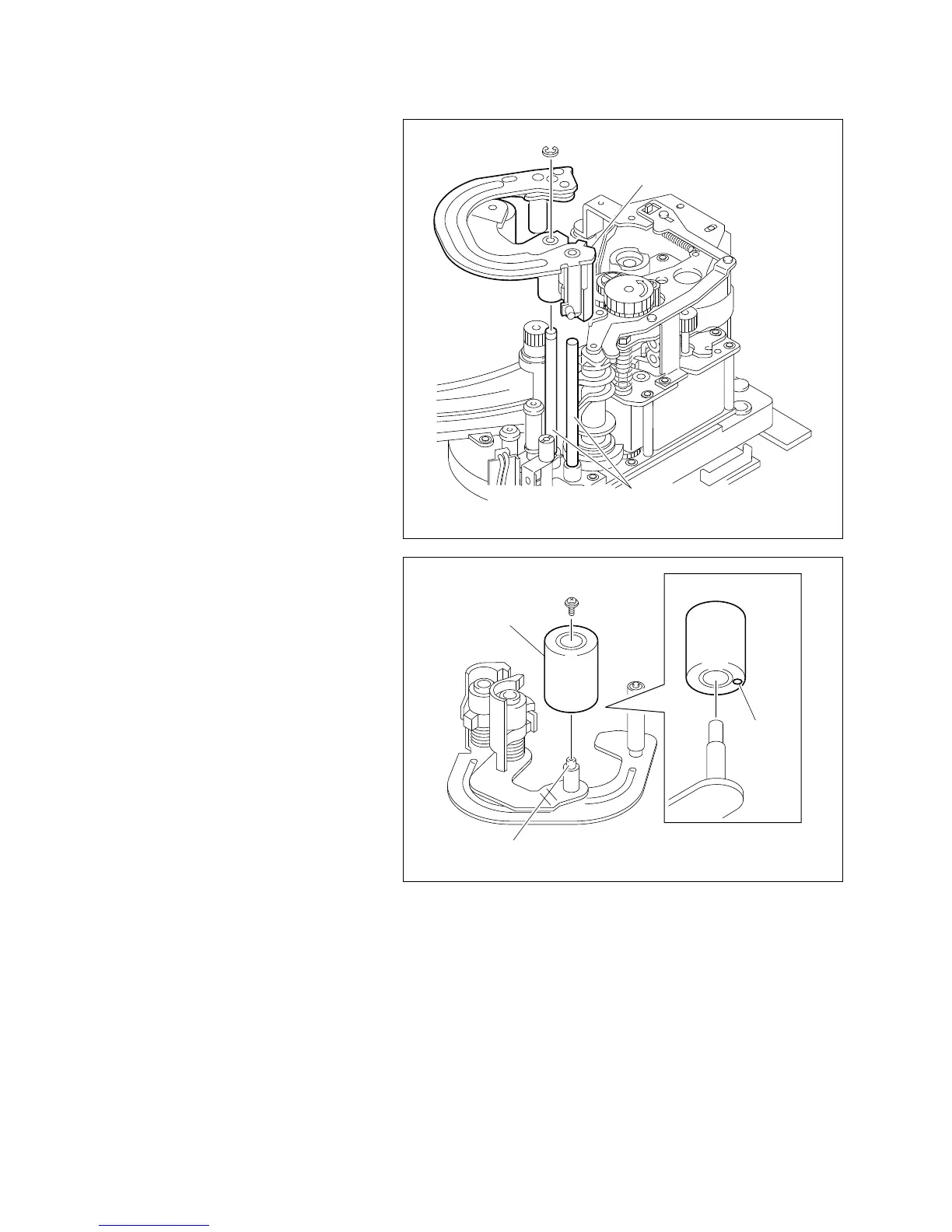

3-7. Pinch Roller Replacement
E ring
Pinch arm assembly
Pinch arm lifting shafts
PWH1.4 x 3.5
Pinch roller
Pinch roller
White
marking
Pinch shaft (cleaning with dry cloth)
