3-35
BVW-55 P2
(2) Remove the timing belt from the pulley on
the back of the mechanical deck.
n
Be careful not to stretch or bend the removed
timing belt.
Installation
2. Swing gear replacement
(1) Remove the one percision screw, then
remove the gear assembly from the mechani-
cal deck.
(2) Remove the stop washer and pull out the
swing gear and pulley.
(3) Clean the shaft of the gear assembly with a
soft cloth.
(4) Apply one half of oil to the shaft of the gear
assembly.
(5) Pass a new swing gear through the shaft of
the gear assembly.
(6) Pass the pulley removed in step (2) through
the shaft of the gear assembly and fasten
them using a new stop washer.
(7) Install the gear assembly in the mechanical
deck with the one percision screw.
[Tightening torque: 9 x 10
_2
N.m
{0.9 kgf.cm}]

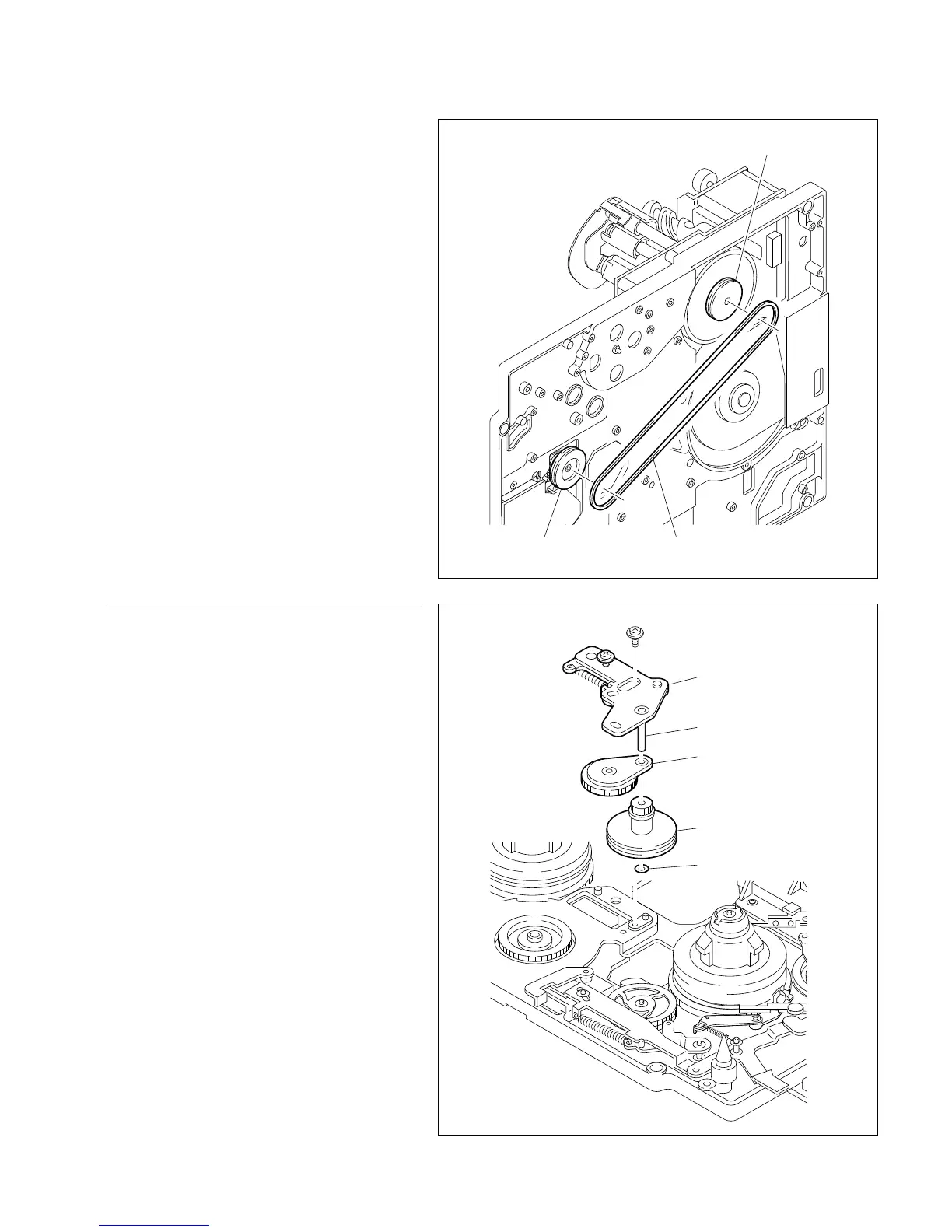

3-8. Swing Gear REplacement
Pulley of swing gear Timing belt
Pulley of capstan motor
Precision
PWH1.4 x 3.5
Stop washer
Swing gear
Shaft
Gear assembly
Pulley
To Next Page
