3-36
BVW-55 P2

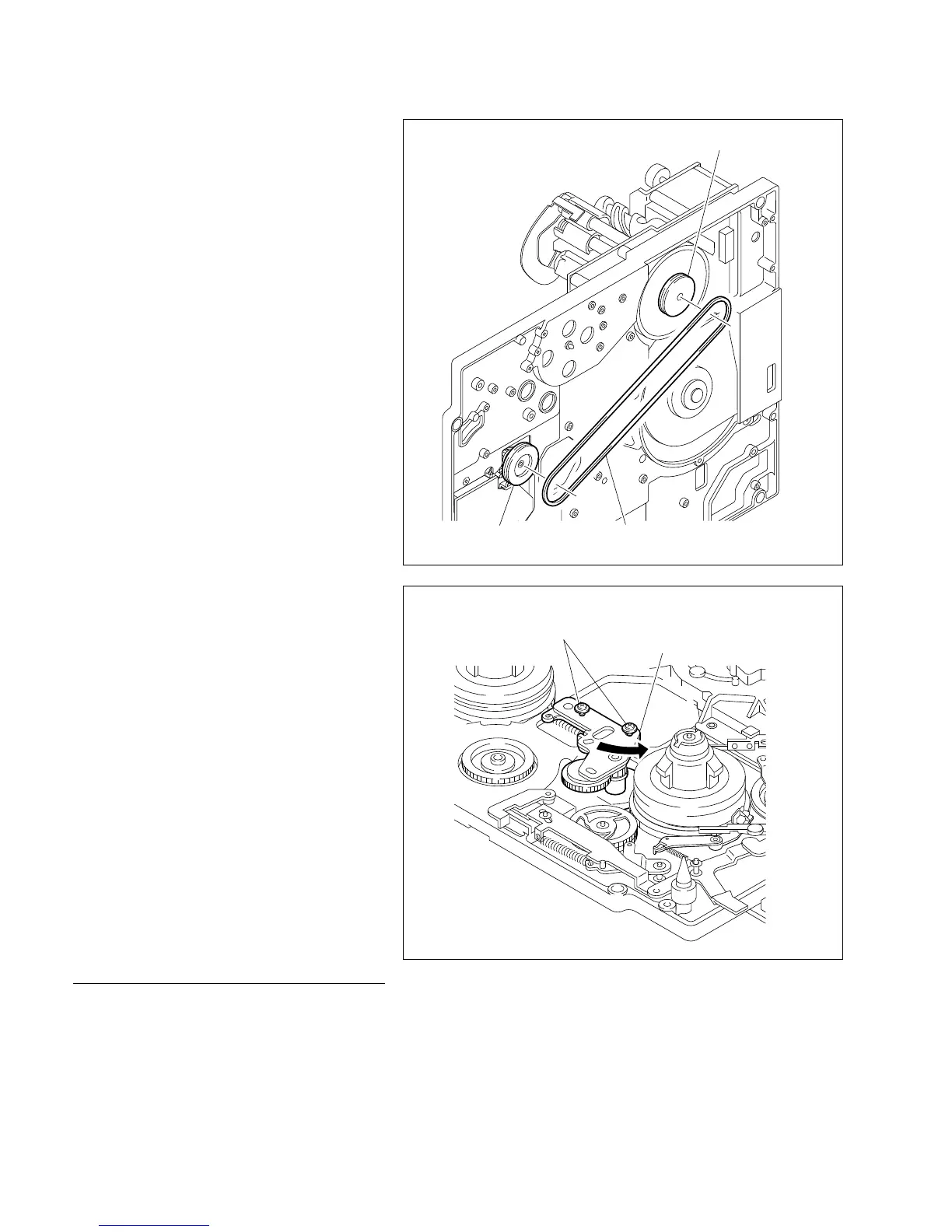

3. Timing belt installation
(1) Clean the pulleys of the swing gear and
capstan motor with cleaning cloth moistened
with cleaning fluid.
(2) Loop the timing belt removed in procedure 1
over the pulley of the swing gear .
(3) Loop the other end of the timing belt over the
pulley of the capstan motor.
3-8. Swing Gear REplacement
(4) Push the arm of the gear assembly in the
direction indicated by the arrow with fingers
and release it gently. The arm of the gear
assembly slightly returns in the clockwise
direction by spring force.
(5) Tighten the two screws loosened in step (1)
of procedure 1. At that time, do not hold the
arm of the gear assembly with fingers.
[Tightening torque: 9 x 10
_2
N.m
{0.9 kgf.cm}]
n
The tension of the timing belt is adjusted by
performing steps (4) and (5).
(6) Apply locking fluid to the screws after
tightened in step (5). When applying, avoid
the slot of the screw.
Adjustment after replacement
4. Tape running adjustment
(Refer to Section 5-4.)
Pulley of swing gear
(cleaning)
Timing belt
Pulley of capstan motor
(cleaning)
2 Screw
(Tighten after 1 is done.)
1 Arm
(Push it in the arrow direction,
and then release gently.)
To Next Page
