3-49
BVW-55 P2
Removal

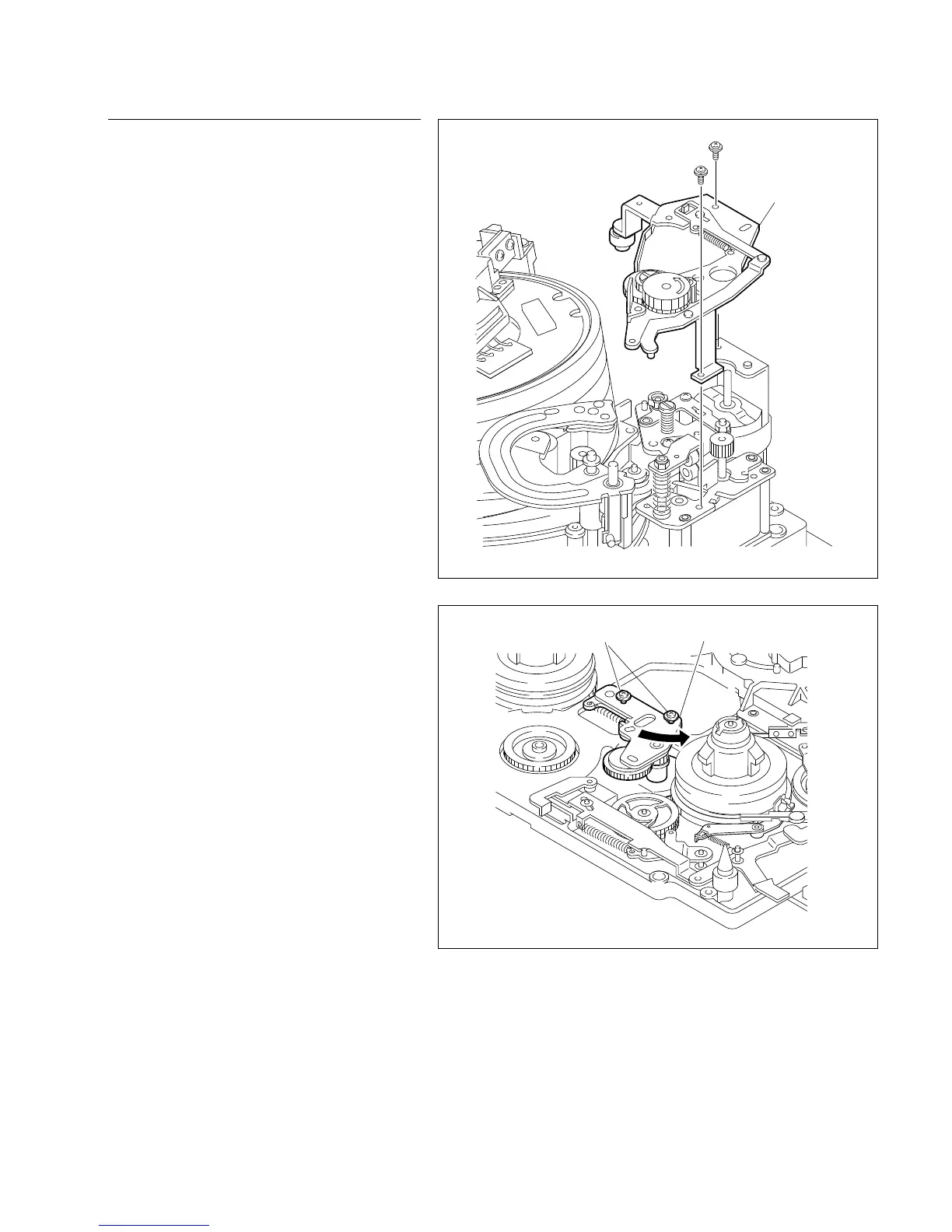

1. VH cleaner assembly removal
Remove the two screws, then remove the VH
cleaner assembly.
3-13. Capstan Motor Replacement
2. Timing belt removal
(1) Loosen the two screws shown in the figure of
the gear assembly by one half to one turn.
PWH1.4 x 3.5
VH cleaner assembly
Screw (loosen)
Gear assembly
