Sony BVW-55 - Page 33

1-23
BVW-55
SL300
S800
21
SL301
SL302
SL303
SL400
SL401
SL402
SL403
A
2
3
4
5
1
BCDEFGH
SL602
SL603
SL600
SL601
SL502
SL503
SL500
SL501

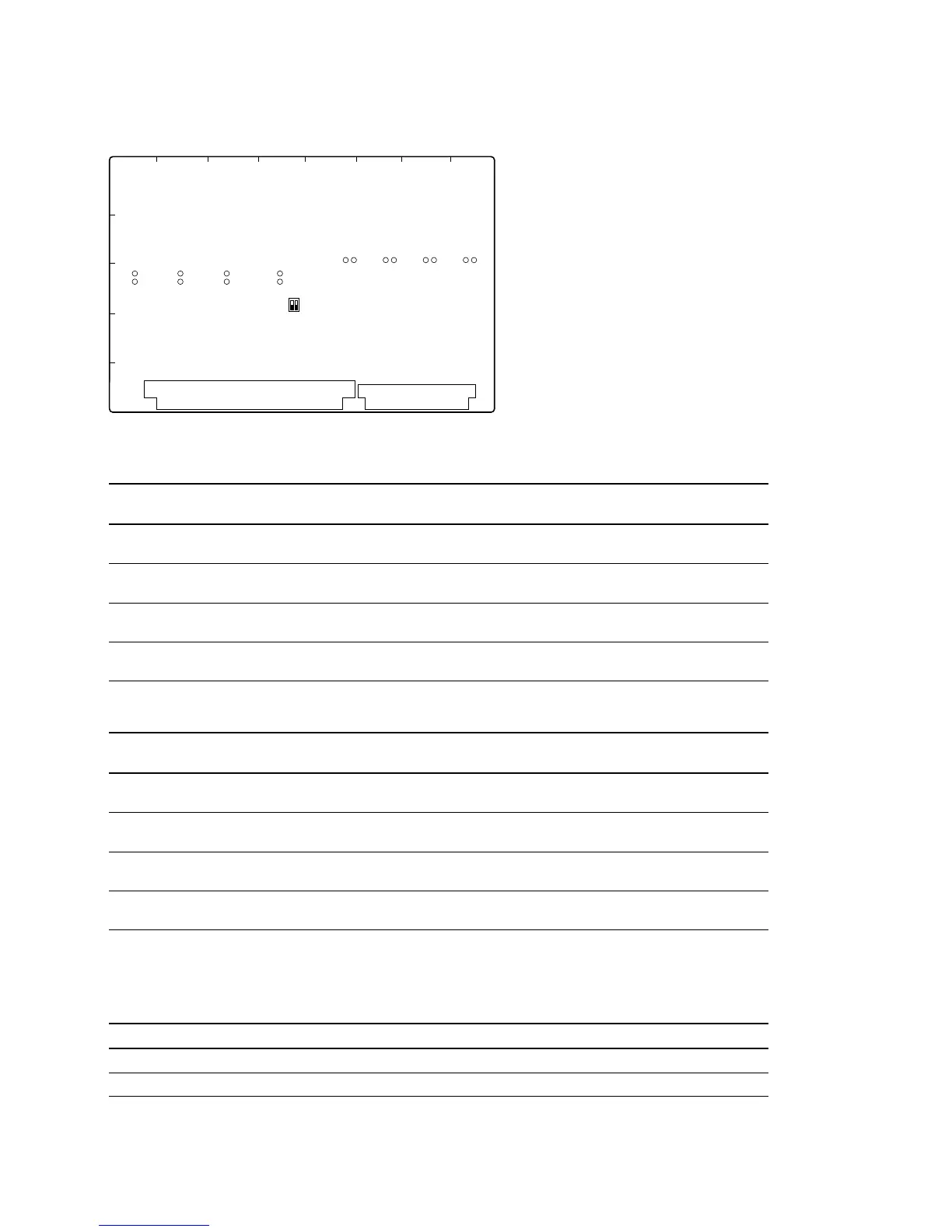

APR-42 Board (Side A)
ON

APR-42 Board
Settings for SDI Audio Input Headroom CH1 to CH4 (for slit lands)
Input headroom ( ) : Factory setting
Channel Ref.No. (Indication) (20 dB) 18 dB 16 dB
CH1 SL300 (18 dB) Open Short Open
SL301 (16 dB) Open Open Short
CH2 SL302 (18 dB) Open Short Open
SL303 (16 dB) Open Open Short
CH3 SL400 (18 dB) Open Short Open
SL401 (16 dB) Open Open Short
CH4 SL402 (18 dB) Open Short Open
SL403 (16 dB) Open Open Short
Settings for SDI Audio Output Headroom CH1 to CH4 (for slit lands)
Output headroom ( ) : Factory setting
Channel Ref.No. (Indication) (20 dB) 18 dB 16 dB
CH1 SL500 (18 dB) Open Short Open
SL501 (16 dB) Open Open Short
CH2 SL502 (18 dB) Open Short Open
SL503 (16 dB) Open Open Short
CH3 SL600 (18 dB) Open Short Open
SL601 (16 dB) Open Open Short
CH4 SL602 (18 dB) Open Short Open
SL603 (16 dB) Open Open Short
Switches
n
Do not change settings of the factory-use switches.
Ref.No. Description Factory setting
S800-1 Factory use OFF
S800-2 Factory use OFF
1-9. Settings for Internal Switches/Slit Lands
