1-24
BVW-55
S881
S300 S400
2
2
1
121
A
2
3
4
5
1
BCDEFGH

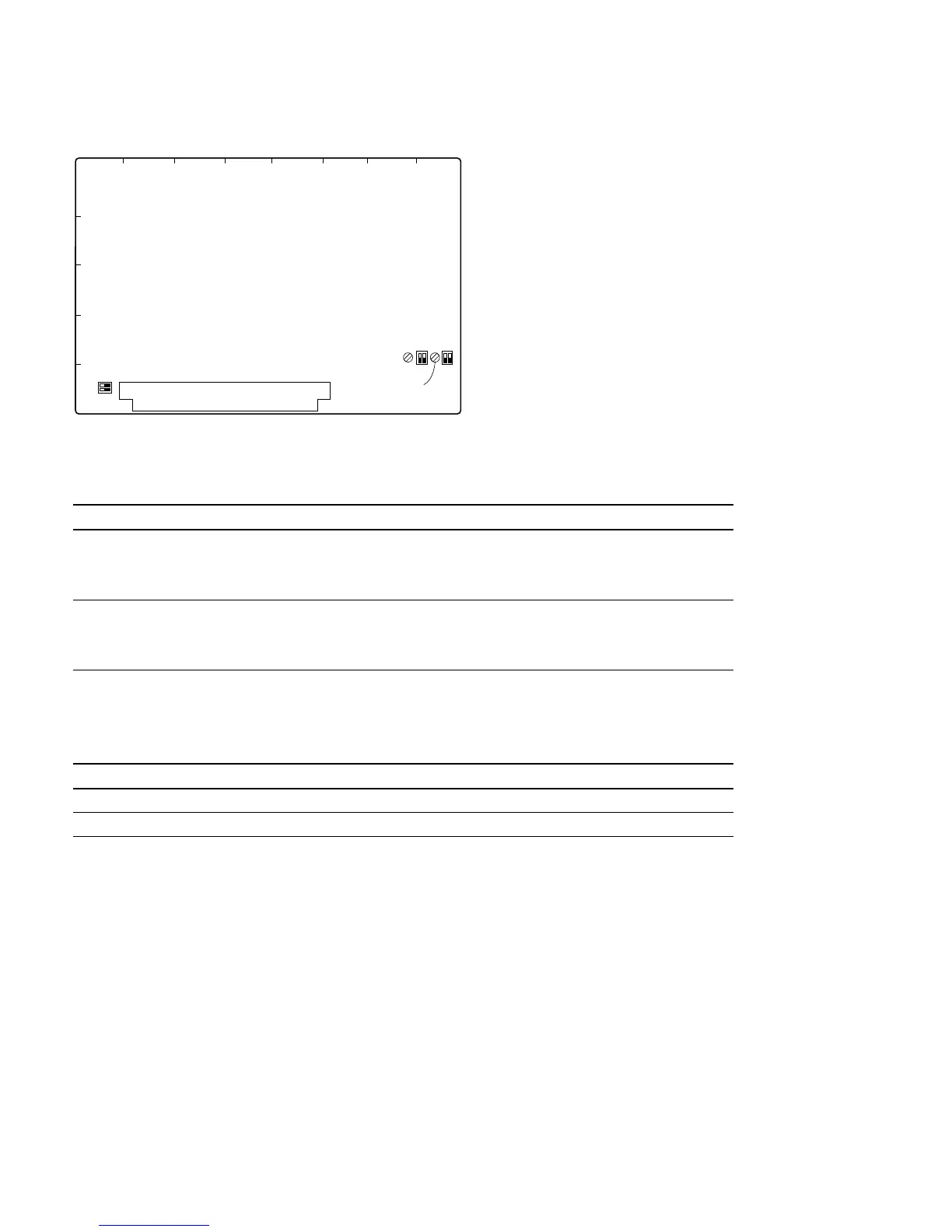

AU-262 Board (Side A)
ON
ON ON
RV400
RV300
1-9. Settings for Internal Switches/Slit Lands
AU-262 Board
HEAD TUNE switches (for longitudinal audio playback)
At installation, it is unnecessary to change setting of the switches.
Channel Ref.No Description
CH1 S300 Adjusts the CH1 head amp high frequency response together with RV300
This switch adjusts the resonance frequency and RV300 adjusts the audio head
dumping
Switch position differs depending on the adjustment condition at the factory
CH2 S400 Adjusts the CH2 head amp high frequency response together with RV400
This switch adjusts the resonance frequency and RV400 adjusts the audio head
dumping
Switch position differs depending on the adjustment condition at the factory
Switches
n
Do not change settings of the factory-use switches.
Ref.No. Description Factory setting
S881-1 Factory use OFF
S881-2 Factory use OFF
