4-59
BVW-55 P2
B2 x 4
CN3
CN2
B2 x 4
Inverter board
Harness clamp

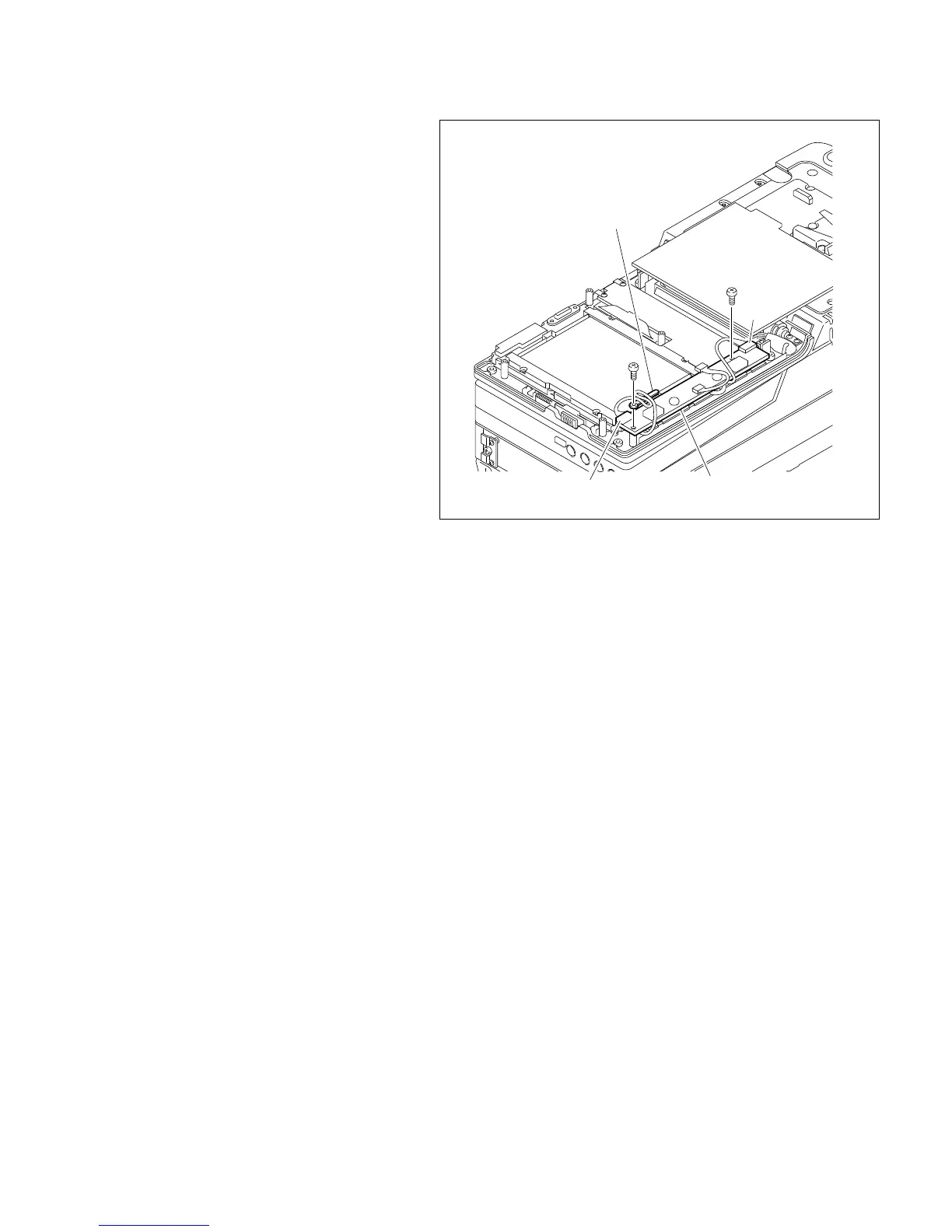

5. Inverter board installation
(1) Connect the harness connectors of the
backlights to connectors CN2 and CN3 on the
inverter board.
(2) Install the inverter board with the two screws.
(3) Clamp the harness of the backlight using the
harness clamp as shown in the figure.
6. DP-300 board installation
(1) Connect the connector CN7 of the DP-300
board to the CN-1541 board.
(2) Reinstall the DP-300 board with the four
screws.
(3) Reconnect the harness connector disconnect-
ed in (1) of step 1 to CN6 on the DP-300
board.
4-17-2. LCD Monitor Replacement
To Next Page
