1-29
BVW-55
AB C DEFGH
1
2
3

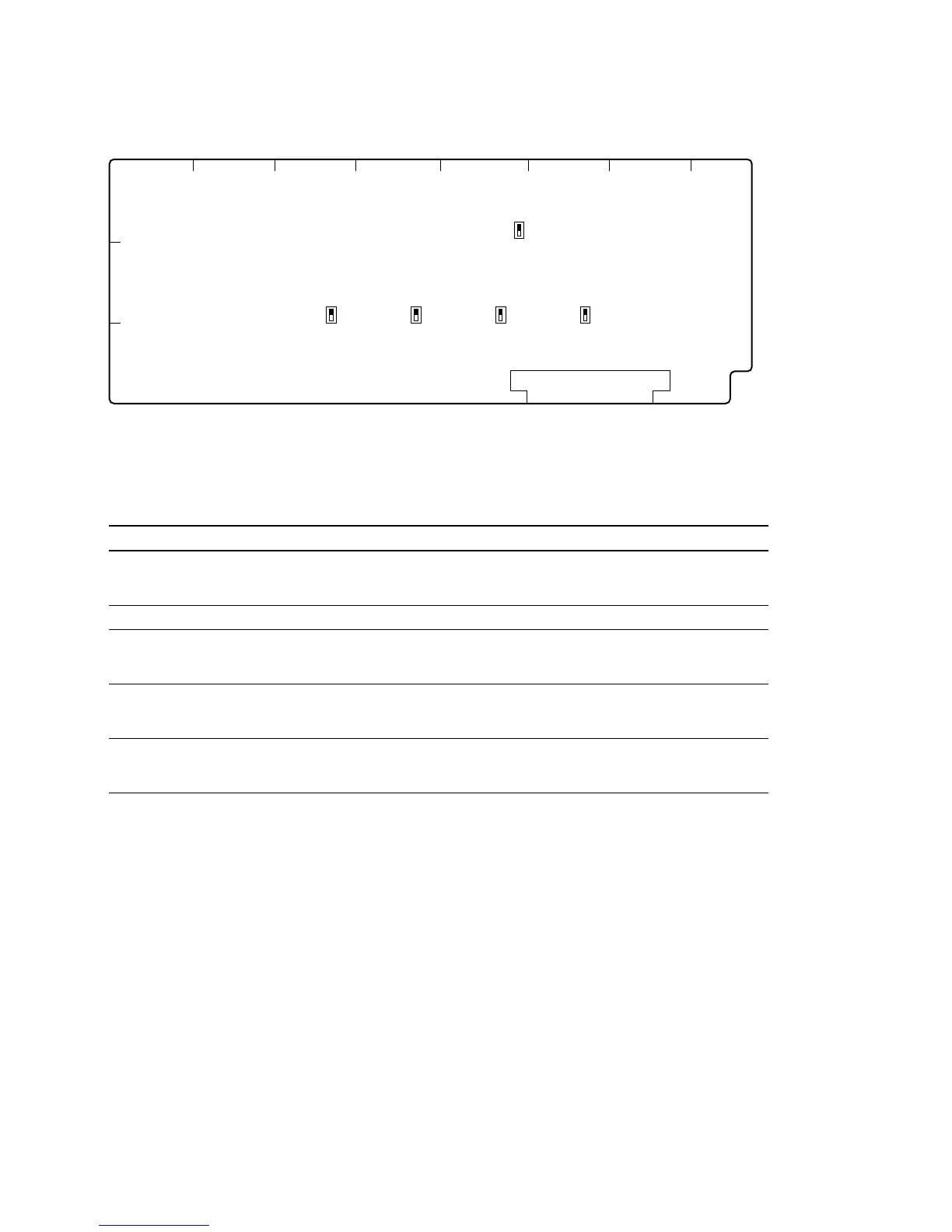

RP-107 Board (Side A)
S401
NORM
CB REC
ADJ
S301
NORM
CA REC
ADJ
S201
NORM
YB REC
ADJ
S151
NORM
ADJ
S101
NORM
YA REC
ADJ
1-9. Settings for Internal Switches/Slit Lands
RP-107 Board
Switches
n
Do not change setting of the factory-use switch.
Ref.No. Switch name Description Factory setting
S101 YA REC When adjusting YA REC current, set this NORM (Upper position)
switch to “ADJ” (lower position) and connect
the current probe to TP101 and TP102.
S151 Factory use NORM (Upper position)
S201 YB REC When adjusting YB REC current, set this NORM (Upper position)
switch to “ADJ” (lower position) and connect
the current probe to TP201 and TP202.
S301 CA REC When adjusting CA REC current, set this NORM (Upper position)
switch to “ADJ” (lower position) and connect
the current probe to TP301 and TP302.
S401 CB REC When adjusting CB REC current, set this NORM (Upper position)
switch to “ADJ” (lower position) and connect
the current probe to TP401 and TP402.
To Next Page
