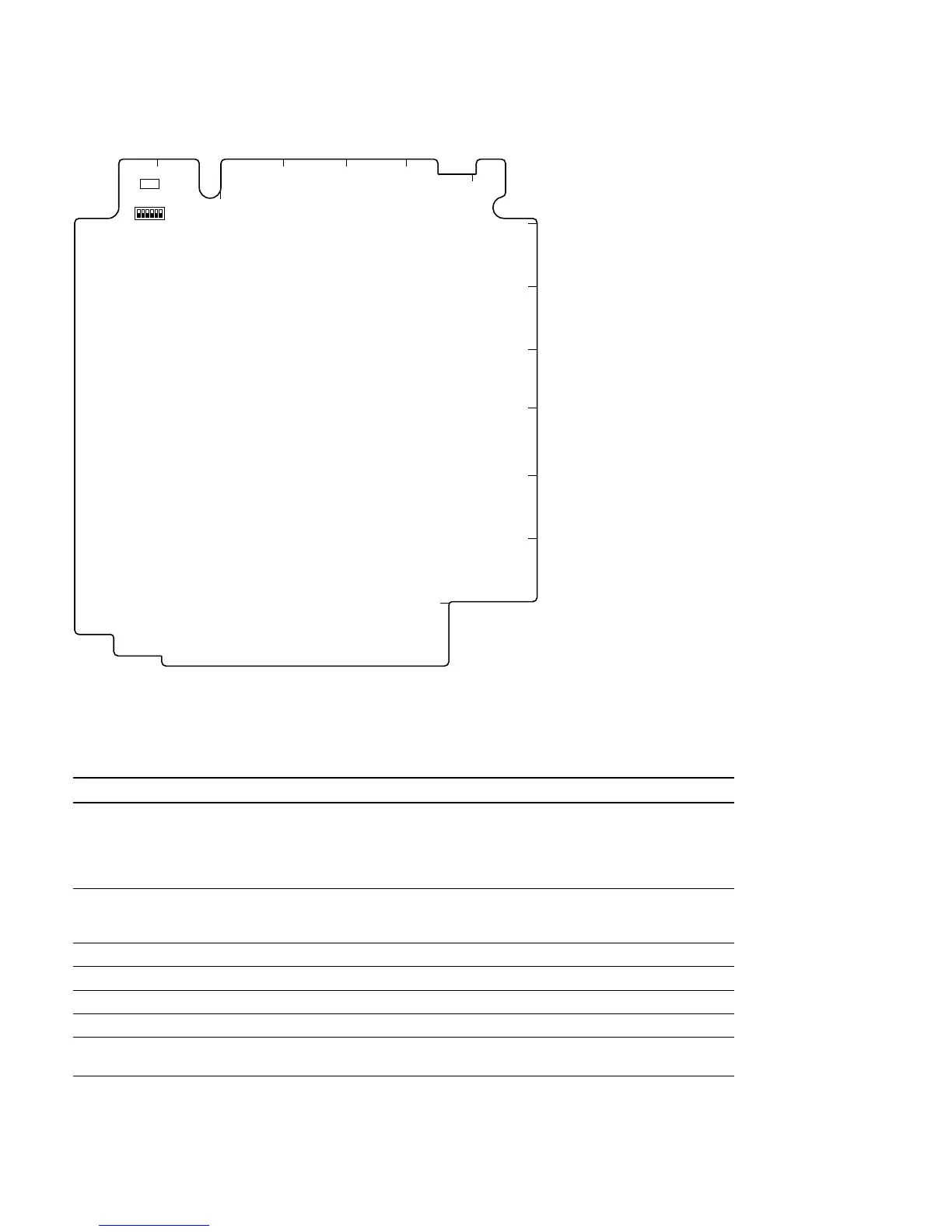

SV-206 Board (Side B)
S100
S101
ON
123456
SV-206 Board
Switches
n
Do not change settings of the factory-use switches.
Ref.No. Switch name Description Factory setting
S100-1 CASSETTE Turns on and off the function to assume that the cassette OFF
COMPARTMENT compartment is locked without the cassette compartment
LOCK installed
ON: Assumes the cassette compartment is locked
OFF: Normal mode
S100-2 SERVO ERR Turns on and off the function to detect the servo error OFF
NOT DET ON: Servo error is not detected
OFF: Normal mode
S100-3 Factory use OFF
S100-4 Factory use OFF
S100-5 Factory use OFF
S100-6 Factory use OFF
S101 INITIAL When powered on while pressing this switch, the servo –––
adjustment data is returned to its default value
1-9. Settings for Internal Switches/Slit Lands
