BVW-55
SY-272 Board
Switches
n
Do not change settings of the factory-use switches.
Ref.No. Switch name Description Factory setting
S101 SYSTEM RESET Press to reset system control operation –––
S201 MAINTE MODE Press to start the maintenance mode –––
START
S202-1 EXTENDED Turns on and off the indication of extended setup menu OFF
MENU OFF: Not indicated
ON: Indicated
S202-2 MAINTE MODE OFF: Not accessible to the maintenance mode from the OFF
ACEESS control panel
ON: Accessible to the maintenance mode from the
control panel
S202-3 Factory use OFF
S202-4 Factory use OFF
S202-5 Factory use OFF
S202-6 Factory use OFF
S202-7 J/UC OFF: for Japan ON
ON: except Japan
S202-8 525/625 OFF: 525/60 model OFF
ON: 625/50 model
S101
S201
1
2
3
4
A B C D EF

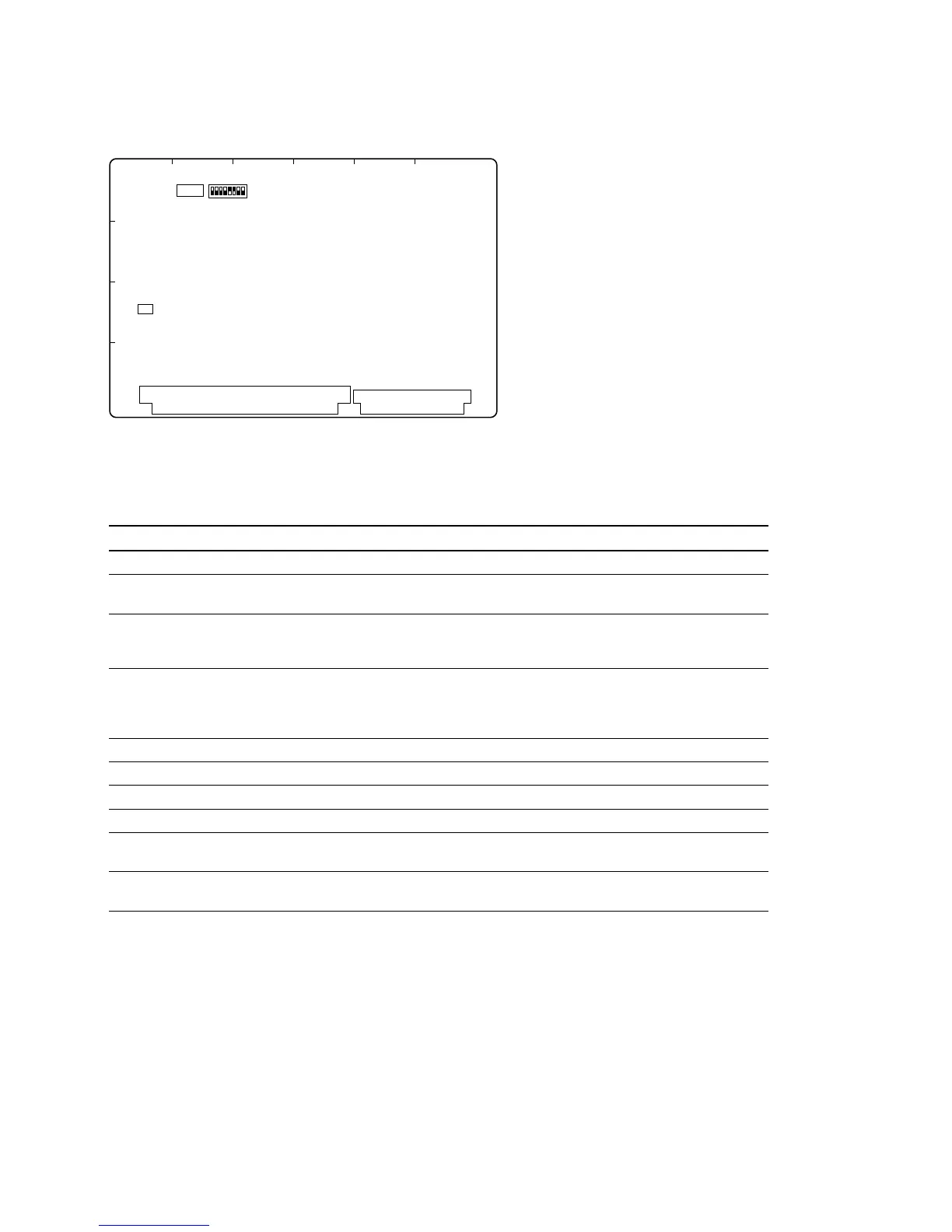

SY-272 Board (Side A)
S202
ON
12345678
1-9. Settings for Internal Switches/Slit Lands
