3-5
BVW-55
TAPE MAINTENANCE MODE
C0 : SERVO CHECK
C2 : AUDIO/VIDEO CHECK
A0 : SERVO ADJUST
A1 : BETACAM REC ADJUST
A2 : AUDIO/VIDEO ADJUST
A3 : BETACAM PB ADJUST
A4 : MECHANISM ADJUST
*
TAPE MAINTENANCE MODE
C0 : SERVO CHECK
C2 : AUDIO/VIDEO CHECK
A0 : SERVO ADJUST
A1 : BETACAM REC ADJUST
A2 : AUDIO/VIDEO ADJUST
A3 : BETACAM PB ADJUST
A4 : MECHANISM ADJUST
*
Turn JOG dial
2
Turn JOG dial
3
Turn JOG dial
2
3
Turn JOG dial
Turn JOG dial
2
3
Turn JOG dial
Turn JOG dial
2
Turn JOG dial
3
Press [SET]
button
Press [MENU] button Press [MENU] button
Press [SET]
button
Press [MENU] button Press [MENU] button
Turn the JOG dial to move the “*” mark.
Move the “*” mark to the mode (menu)
you wish to open and press the SET button.
The mode (menu) is then opened.
Turn the search dial to display each mode
(menu) in the same row.
Display the mode (menu) which you wish
to open and press the SET button.
The mode (menu) is then opened.
Example in Superimpose Picture
Example in sub LCD
MAINTENANCE MODE
M0 : TAPE MAINTENANCE
M2 : ERROR LOGGER
M3 : OTHERS
M4 : SETUP MAINTENANCE
*
MAINTENANCE MODE
M0 : TAPE MAINTENANCE
M2 : ERROR LOGGER
M3 : OTHERS
M4 : SETUP MAINTENANCE
*
Turn JOG dial
2
Turn JOG dial
3
MAINTENANCE MODE
M0 : TAPE MAINTENANCE
M2 : ERROR LOGGER
M3 : OTHERS
M4 : SETUP MAINTENANCE
*
M2 -ERRO R LOGGER
Turn JOG dial
2
3
Turn JOG dial
M3 -OTHE R S
M0 -TAPE MAINTEN
C0 -SERV O CHECK C2 -AUDI O/VIDEO

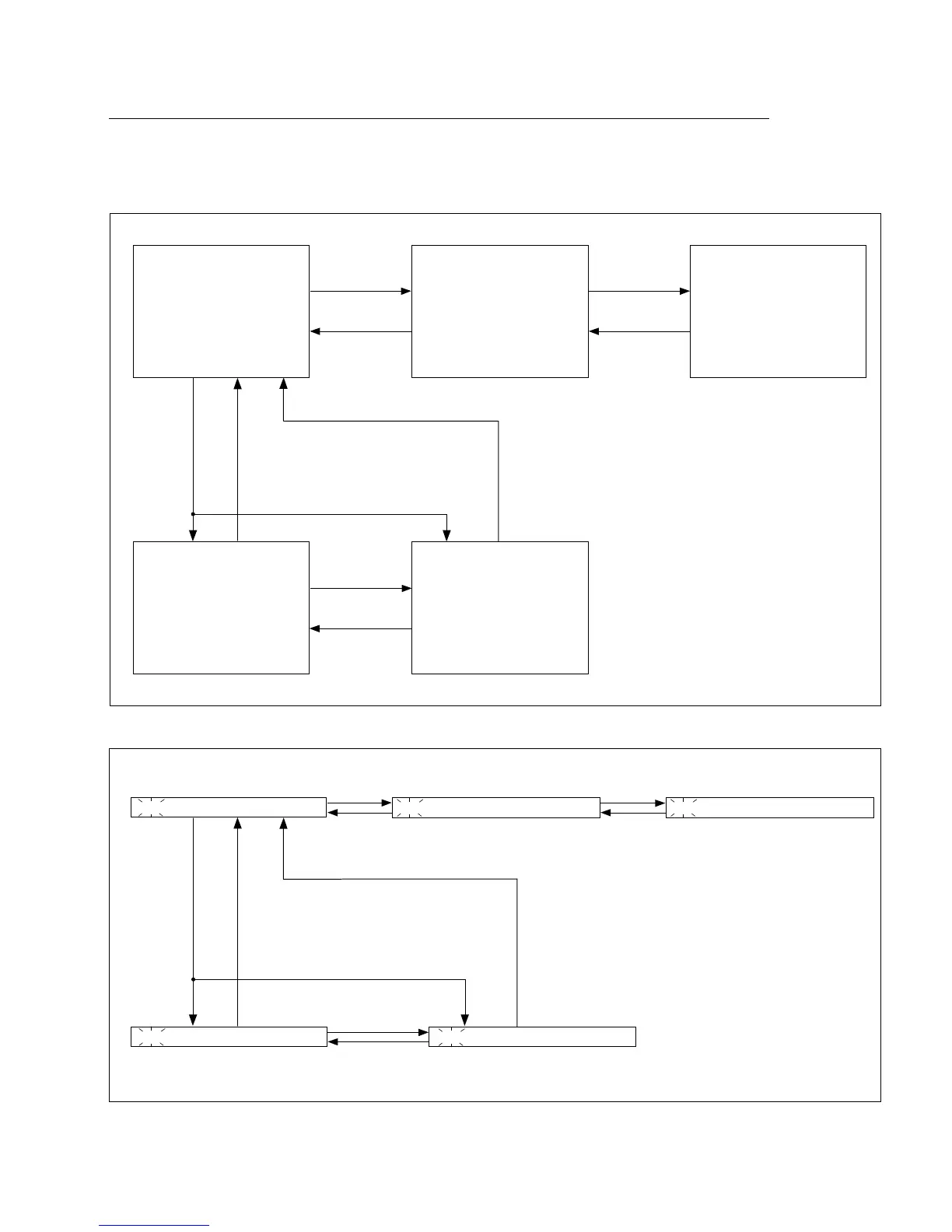

Specifying the Menu (Mode) and Item
How to specify the menu (mode) and item using the JOG dial (JOG mode) is described below with the
mode selection given as an example.
3-1. Overview of Maintenance Mode
To Next Page
