3-17
BVW-55

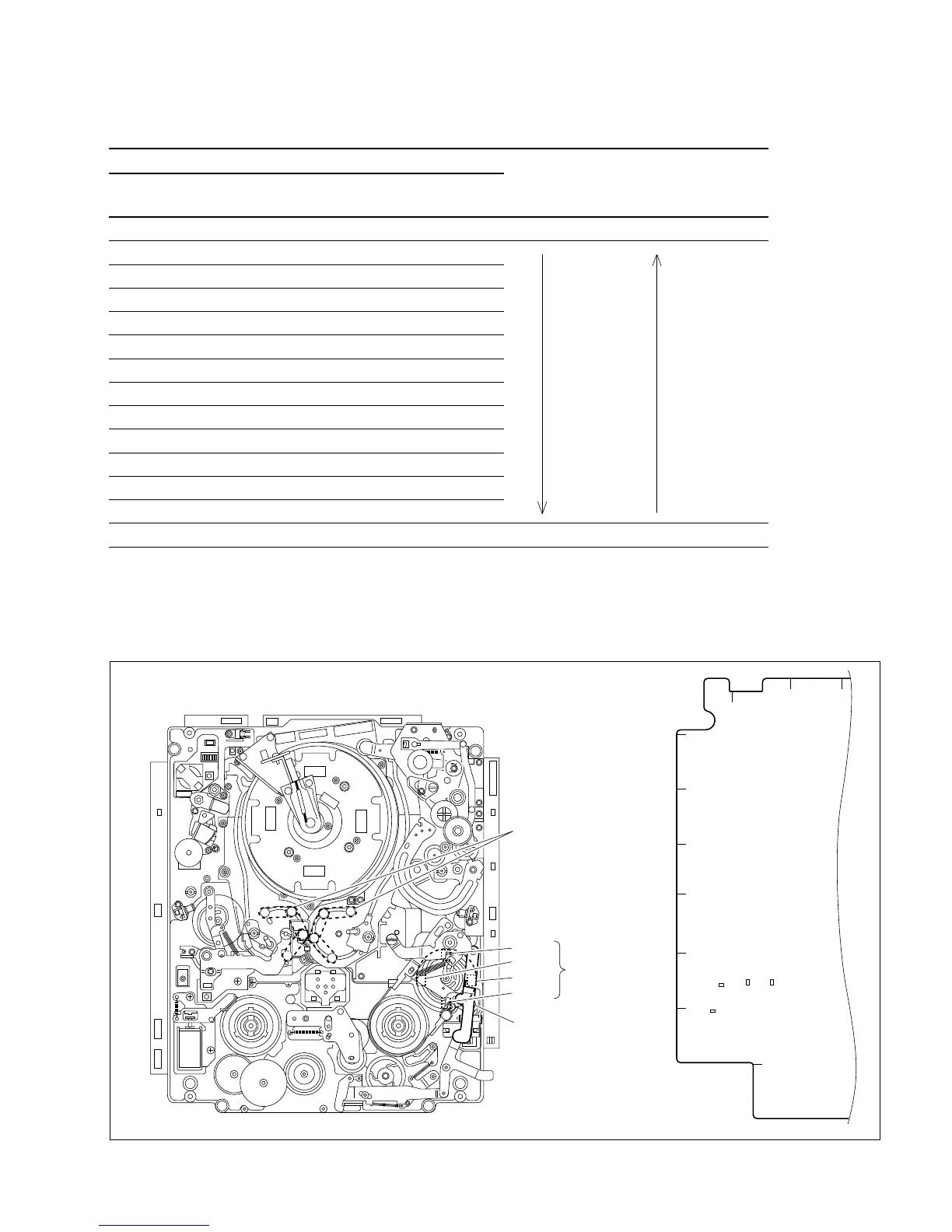

Locations of Threading End and Unthreading End Sensors
3-2. TAPE Maintenance Mode (M0)
3-2-2. SERVO CHECK Mode (C0)
Code transition of the function cam
State of sensors (on the SV-206 board) Condition of this unit
PH304 PH303 PH302 PH301
(TP304) (TP303) (TP302) (TP301)
1 1 1 0 UNTHREAD END
1100
1 1 0 1 THEADING
1001
1000
1010
1011
0011
0010
0000
0001
0 1 0 1 UNTHREADING
0100
0 1 1 0 THREAD END
TP301
TP302
TP304
TP303
A
B
C
1
2
3
4
5
6
7
8
SV-206 Board
(A Side)
PH303
PH302
PH304
PH301
Function cam
sensors
Threading link
Function cam
