STR-DA2800ES
10
Jig No. Jig Name Part No. Pitch (mm) Cores Remark
5
1.25_26_M
J-2501-348-A
1.25 26
For CONTROL board (CN2801, CN2826)
1.25_26_F For NETWORK board (CN1103, CN1104)
Flexible fl at cable 26P J-2501-365-A Length 300 mm

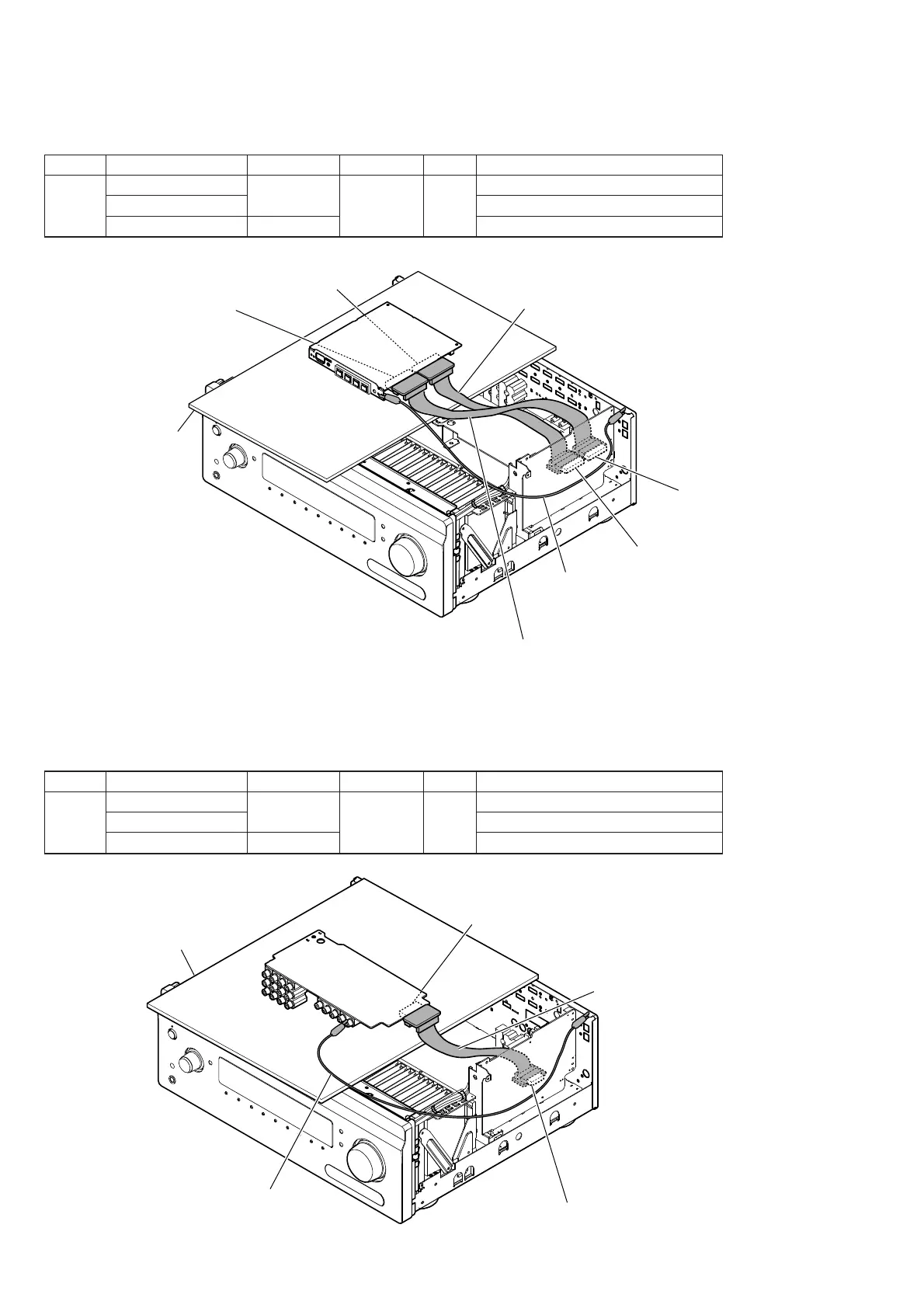

NETWORK BOARD SERVICE POSITION
• Please connect following extension jig.
Connect extension jig 5 to the
NETWORK board (CN1103) and
CONTROL board (CN2826).
insulating sheet
CONTROL board
(CN2826)
NETWORK board
(CN1103)
CONTROL board
(CN2801)
NETWORK board
(CN1104)
Connect extension jig 5 to the
NETWORK board (CN1104) and
CONTROL board (CN2801).
alligator clip
Note:
Connect altogether the metal part
on the boards connected with the
chassis using the alligator clip.
Jig No. Jig Name Part No. Pitch (mm) Cores Remark
5
1.25_26_M
J-2501-348-A
1.25 26
For CONTROL board (CN2780)
1.25_26_F For A-VIDEO board (CN6504)
Flexible fl at cable 26P J-2501-365-A Length 300 mm
A-VIDEO BOARD SERVICE POSITION
• Please connect following extension jig.
Connect extension jig 5 to the
A-VIDEO board (CN6504) and
CONTROL board (CN2780).
A-VIDEO board
(CN6504)
insulating sheet
CONTROL board
(CN2780)
alligator clip
Note:
Connect altogether the metal part
on the boards connected with the
chassis using the alligator clip.
To Next Page
