STR-DA2800ES
9

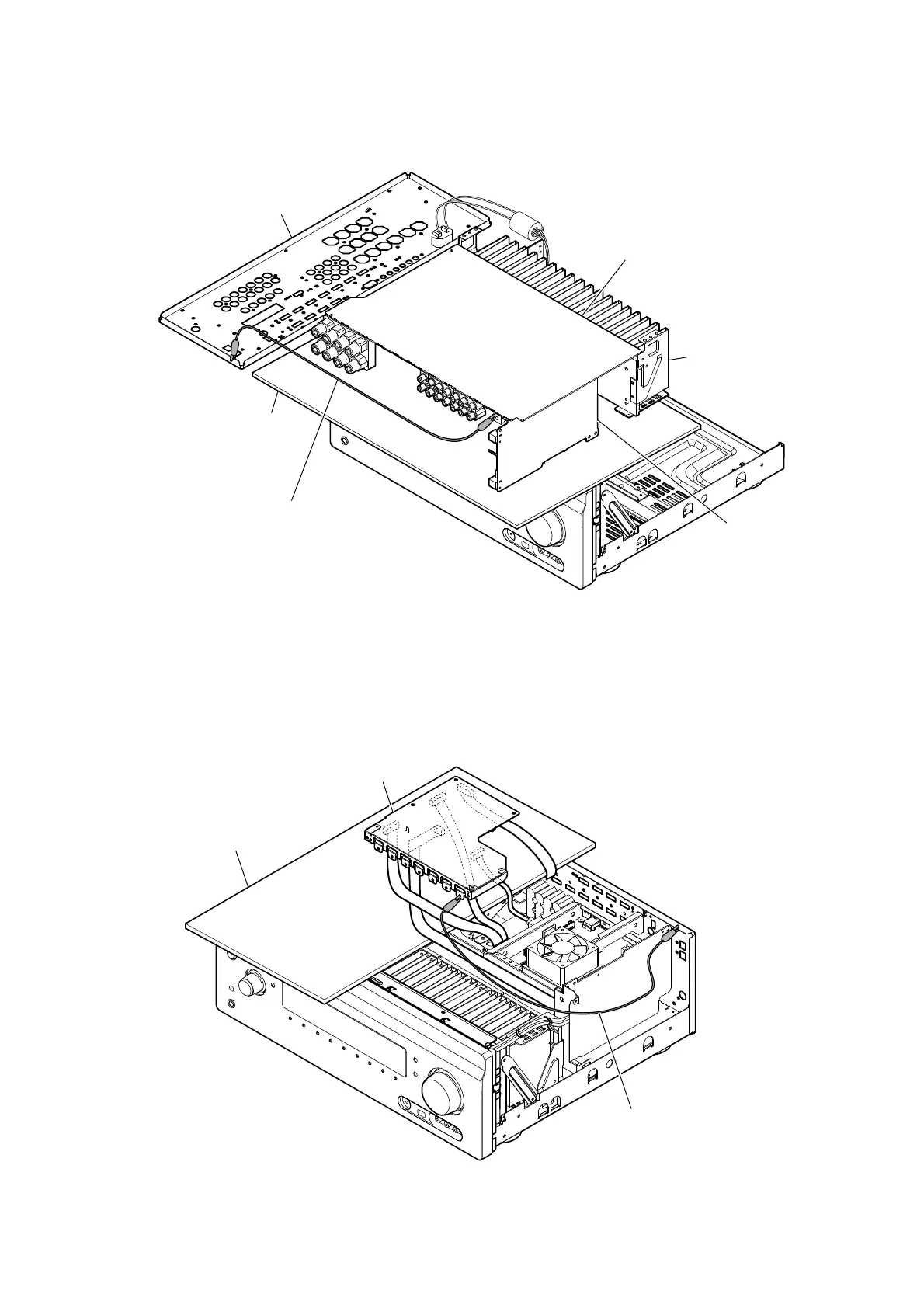

MAIN BOARD SERVICE POSITION
insulating sheet
MAIN board
heat sink block
CONTROL board
rear panel block
alligator clip
Note:
Connect altogether the metal part
on the boards connected with the
chassis using the alligator clip.
D-VIDEO BOARD SERVICE POSITION
insulating sheet
D-VIDEO board
alligator clip
Note:
Connect altogether the metal par
t
on the boards connected with the
chassis using the alligator clip.
