Sony STR-DA2800ES - Page 8

STR-DA2800ES
8
Jig No. Jig Name Part No. Pitch (mm) Cores Remark
2
1.25_26_F
J-2501-356-A
1.25 26
For CONTROL board (CN2891)
1.25_26_F For D-AUDIO board (CN2003)
Flexible fl at cable 26P J-2501-365-A Length 300 mm
3
2.00_19_M
J-2501-368-A
1.25 19
For MAIN board (CN301)
2.00_19_F For D-AUDIO board (CN1114)
Flexible fl at cable 19P J-2501-370-A Length 400 mm
4
2.00_5_M
J-2501-369-A
1.25 5
For MAIN board (CN300)
2.00_5_F For D-AUDIO board (CN2401)
Flexible fl at cable 5P J-2501-371-A Length 400 mm

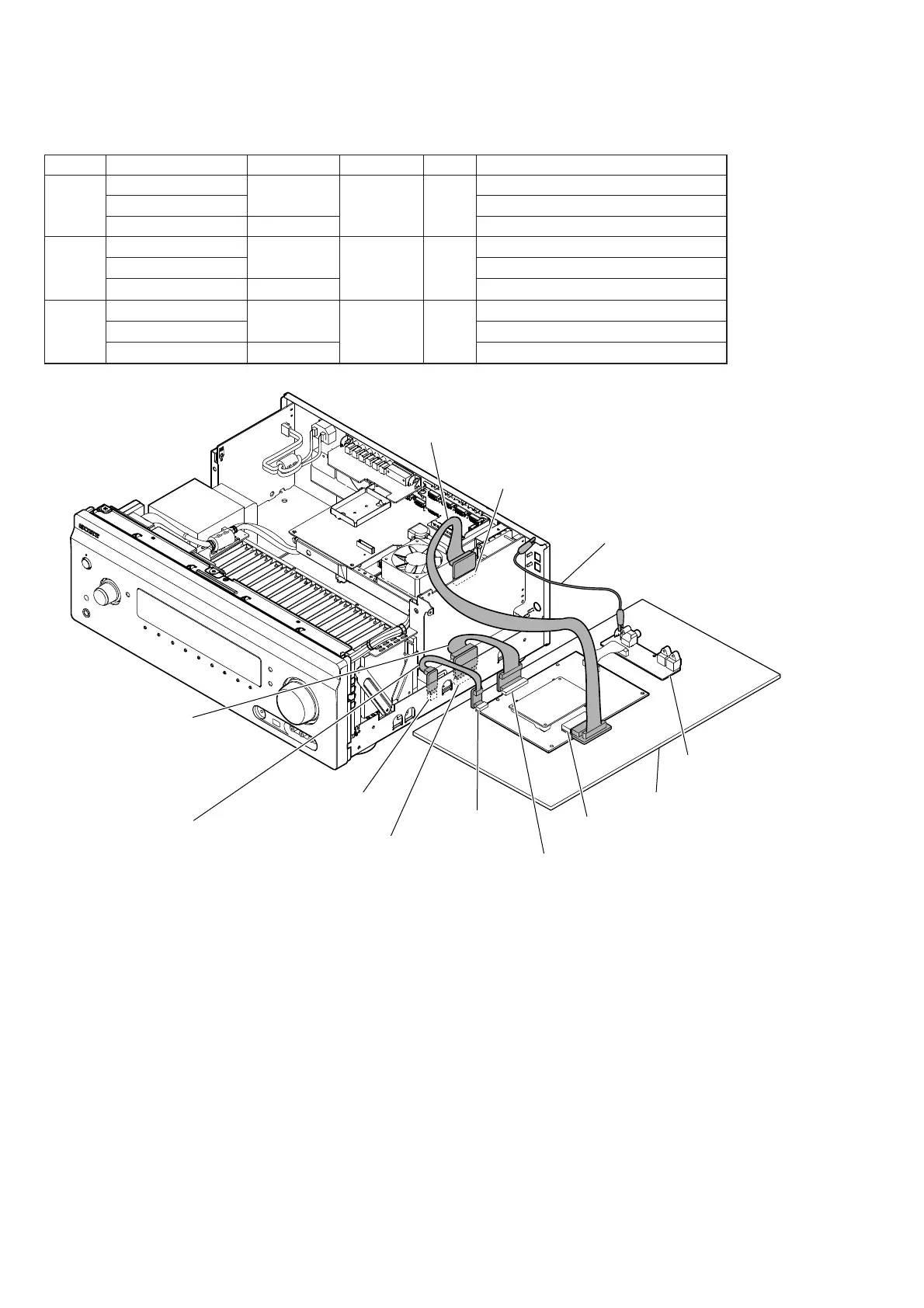

D-AUDIO BOARD SERVICE POSITION
• Please connect following extension jig.
OPT-COAX board
insulating sheet
Connect extension jig 2
to the D-AUDIO board (CN2003)
and CONTROL board (CN2891).
Connect extension jig 4
to the D-AUDIO board (CN2401)
and MAIN board (CN300).
Connect extension jig 3
to the D-AUDIO board (CN1114)
and MAIN board (CN301).
CONTROL board
(CN2891)
alligator clip
Note:
Connect altogether the metal par
t
on the boards connected with the
chassis using the alligator clip.
D-AUDIO board
(CN2003)
D-AUDIO board
(CN1114)
D-AUDIO board
(CN2401)
MAIN board
(CN301)
MAIN board
(CN300)
