STR-DA2800ES
7
Jig No. Jig Name Part No. Pitch (mm) Cores Remark
1
1.25_22_M
J-2501-350-A
1.25 22
For CONTROL board (CN2515, 2701)
1.25_22_F For MAIN board (CN302, 303)
Flexible fl at cable 22P J-2501-364-A Length 300 mm
2
1.25_26_F
J-2501-356-A
1.25 26
For CONTROL board (CN2891)
1.25_26_F For D-AUDIO board (CN2231)
Flexible fl at cable 26P J-2501-365-A Length 300 mm

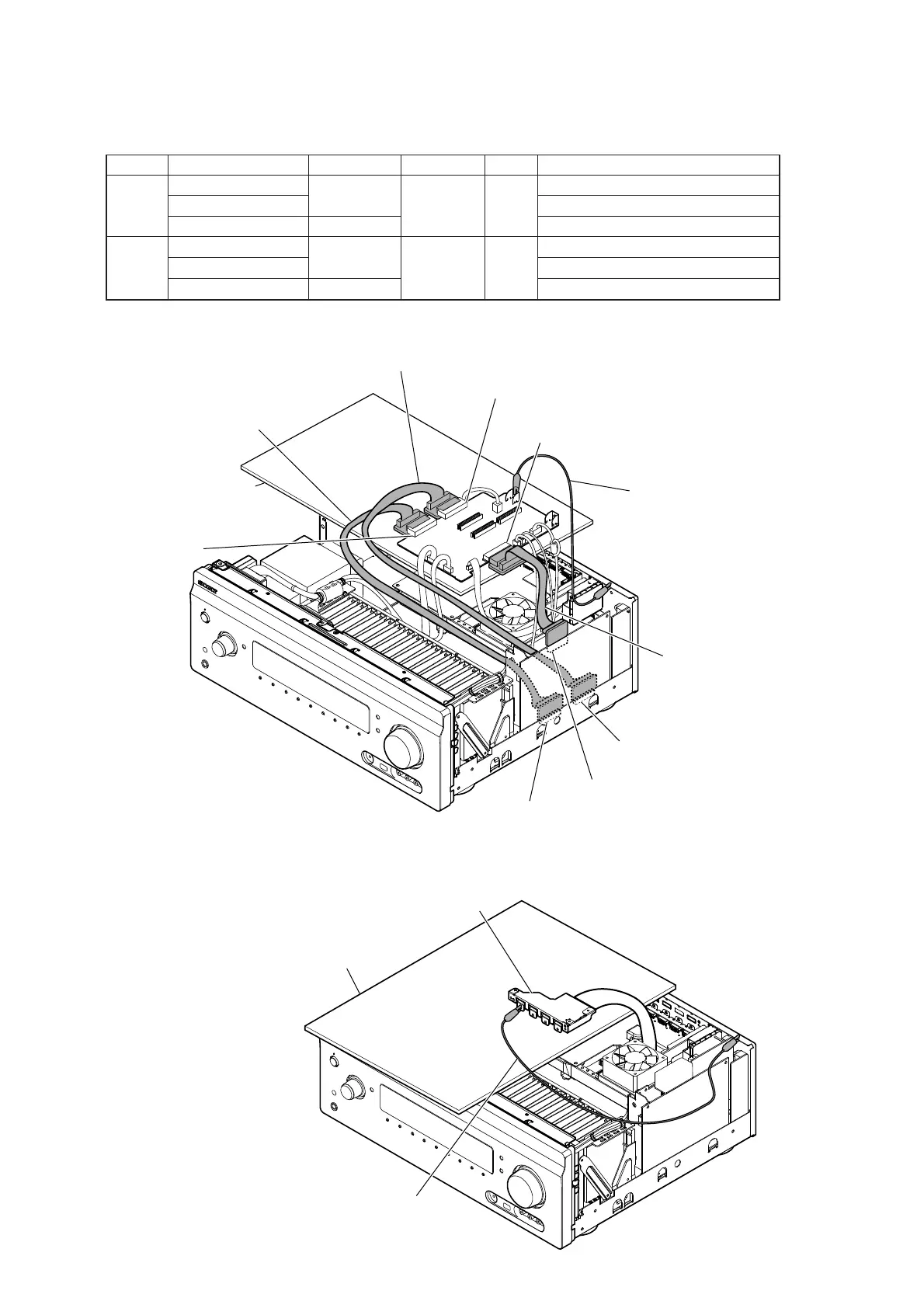

CONTROL BOARD SERVICE POSITION
• Please connect following extension jig.
Connect extension jig 1
to the CONTROL board (CN2515)
and MAIN board (CN302).
Connect extension jig 1
to the CONTROL board (CN2701)
and MAIN board (CN303).
Connect extension jig 2
to the CONTROL board (CN2891)
and D-AUDIO board (CN2231).
CONTROL board
(CN2515)
MAIN board
(CN303)
MAIN board
(CN302)
CONTROL board
(CN2891)
CONTROL board
(CN2701)
D-AUDIO board
(CN2231)
insulating sheet
alligator clip
Note:
Connect altogether the metal part
on the boards connected with the
chassis using the alligator clip.
SUB D-VIDEO BOARD SERVICE POSITION
insulating sheet
SUB D-VIDEO board
alligator clip
Note:
Connect altogether the metal part
on the boards connected with the
chassis using the alligator clip.
To Next Page
