Hardware Specifications
Sourcefire 7000 Series Devices
Chapter 6
3D7110 and 3D7120 Chassis Rear View
The rear of the chassis contains the management port, connection ports,
grounding studs, and power supplies.
3D7110 and 3D7120 (Chassis: GERY-1U-8-C-AC or GERY-1U-8-FM-AC) Rear View
The following table describes the features that appear on the rear of the
appliance.
Reserved
USB 2.0 Ports
Management Interface VGA Port Serial Port ID LED Redundant Power Supplies
Grounding Studs Power Supply LEDs

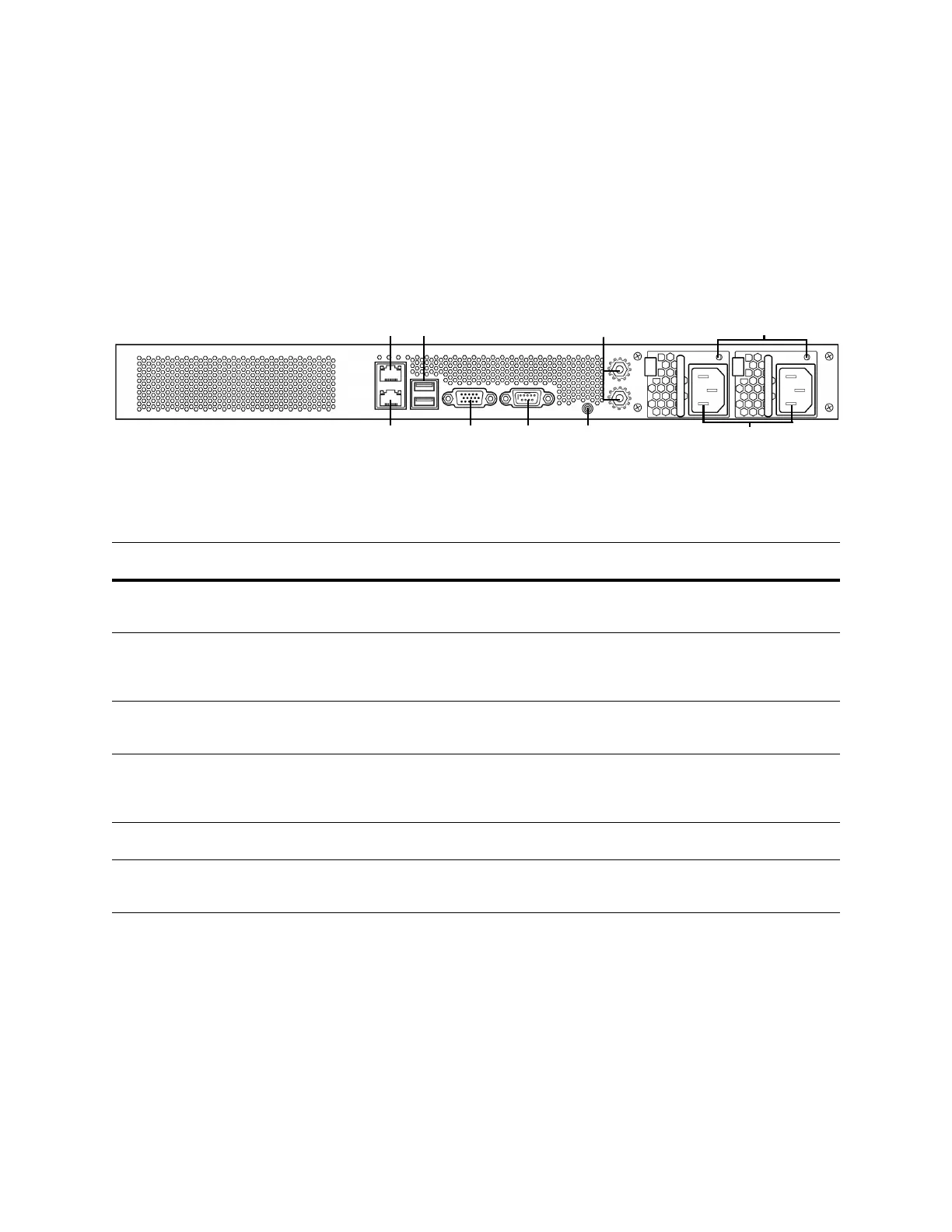

3D7110 and 3D7120 System Components: Rear View
FEATURES DESCRIPTION
VGA port
USB port
Allows you to attach a monitor, keyboard, and mouse to the device to
establish a direct workstation-to-appliance connection.
10/100/1000 Ethernet
management interface
Provides for an out-of-band management network connection. The
management interface is used for maintenance and configuration
purposed only and is not intended to carry service traffic.
System ID LED Helps identify a system installed in a high-density rack with other
similar systems. The blue light indicates that the ID button is pressed.
Grounding studs Allows you to connect the appliance to the Common Bonding
Network. See the Power Requirements for Sourcefire Devices on
page 240 for more information.
Redundant power supplies Provides power to the device through an AC power source.
Power supply LEDs Indicates the status of the power supply. See 3D7110 and 3D7120
Power Supply LED on page 160.
