Version 5.2 Sourcefire 3D System Installation Guide 163
Hardware Specifications
Sourcefire 7000 Series Devices
Chapter 6
The following table describes the features on the front of the appliance.
3D7115 and 3D7125 Front Panel
3D7115 and 3D7125 System Components: Front View
FEATURE DESCRIPTION
LCD panel Operates in multiple modes to configure the device,
display error messages, and view system status. For
more information, see Using the LCD Panel on a Series 3
Device on page 111.
Front panel USB
2.0 port
Allows you to attach a keyboard to the device.
Front panel Houses LEDs that display the system’s operating state, as
well as various controls, such as the power button. For
more information, see 3D7115 and 3D7125 Front Panel on
page 163.
Sensing
interfaces
Contain the sensing interfaces that connect to the
network. For more information, see 3D7115 and 3D7125
Sensing Interfaces on page 165.

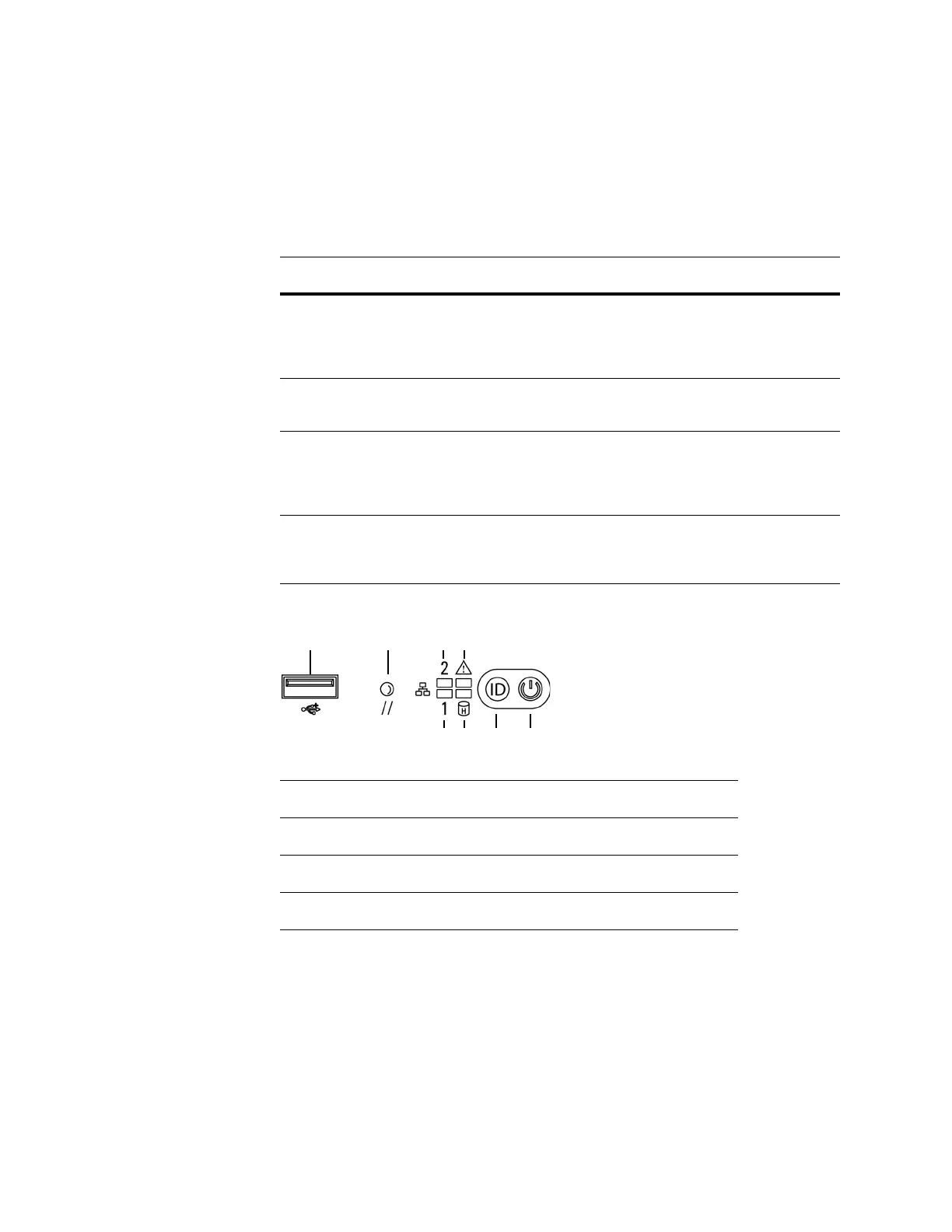

3D7115 and 3D7125 Front Panel Components
A USB 2.0 connector E NIC1 activity LED
B Reset button F Hard drive activity LED
C NIC2 activity LED G ID button
D System status LED H Power button and LED
ABCD
EF G H
