Source fire Sourcefire 3D System - Page 68

Version 5.2 Sourcefire 3D System Installation Guide 68
Installing a Sourcefire 3D System Appliance
Identifying the Sensing Interfaces
Chapter 3

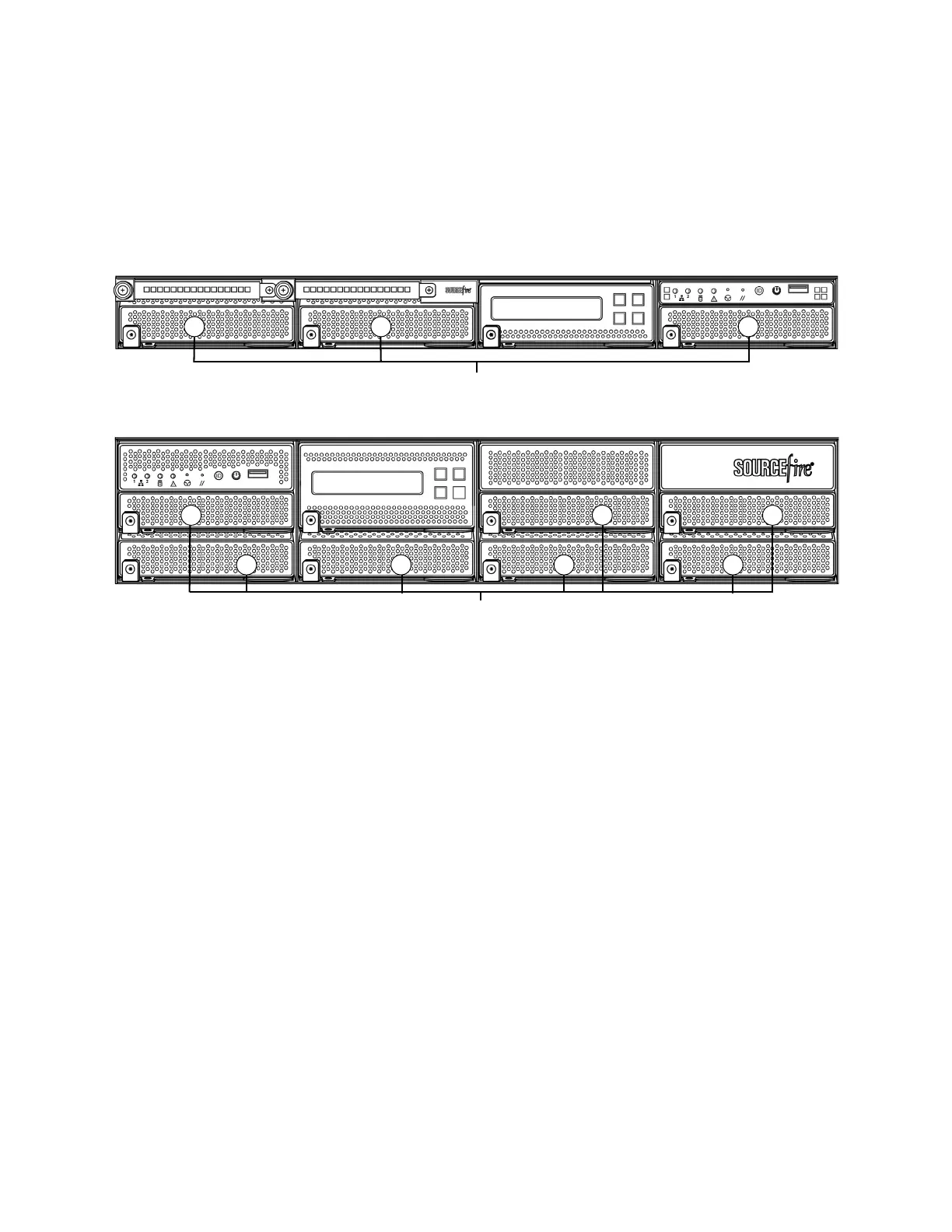

The following illustrations of the front of the chassis indicates the location of the
module slots that contain the sensing interfaces.
81xx Family Front Chassis View
82xx Family Front Chassis View
8000 Series Modules
The 8000 Series can be delivered with the following modules with configurable
bypass capability:
• a quad-port 1000BASE-T copper interface with configurable bypass
capability. See Quad-Port 1000BASE-T Copper Configurable Bypass
NetMod on page 69 for more information.
• a quad-port 1000BASE-SX fiber interface with configurable bypass
capability. See Quad-Port 1000BASE-SX Fiber Configurable Bypass NetMod
on page 69 for more information.
• a dual-port 10GBASE (MMSR or SMLR) fiber interface with configurable
bypass capability. See Dual-Port 10GBASE (MMSR or SMLR) Fiber
Configurable Bypass NetMod on page 70 for more information.
• a dual-port 40GBASE-SR4 fiber interface with configurable bypass
capability. See Dual-Port 40GBASE-SR4 Fiber Configurable Bypass NetMod
on page 71 for more information.
