Description of the BMK-8i ACCU stud welding device
Operating Instructions Soyer Bolzenschweißtechnik 25
The PH-9 SRM
12
and PH-9 SRM
12
+G stud welding guns can be connected to the
BMK-8i ACCU stud welding device as standard guns. Using an adapter, the PH-
3 SRM stud welding gun can also be connected to it.
7.2.1 Stud welding with SRM® technology
The welding procedure recommended by SOYER® for operating the BMK-8i
ACCU is the patented SRM® welding procedure (patent no.: 10 2004 051 389) in
conjunction with the also newly developed HZ-1 universal stud with a plane end
face and centring tip (patent no.: 10 2006 016 553).
SRM® stands for stud welding in a radially symmetric magnetic field.
This innovative welding technology allows for welding in a ratio of 1:10 of the
sheet metal thickness to the stud diameter (up to now 1:4) with the use of ceramic
rings being no longer needed.
The various advantages of the SRM® procedure open up completely new possi-
ble applications in the entire stud welding area (for additional information, please
visit: www.srm-technology.de).
Functional principle
The advantages of the SRM® welding procedure are as follows:
• No annoying welding beads
• Welding under difficult conditions, now also without ceramic rings
• Reduced penetration in the sheet metal
• Less energy consumption and shorter welding time
• No welding spatters

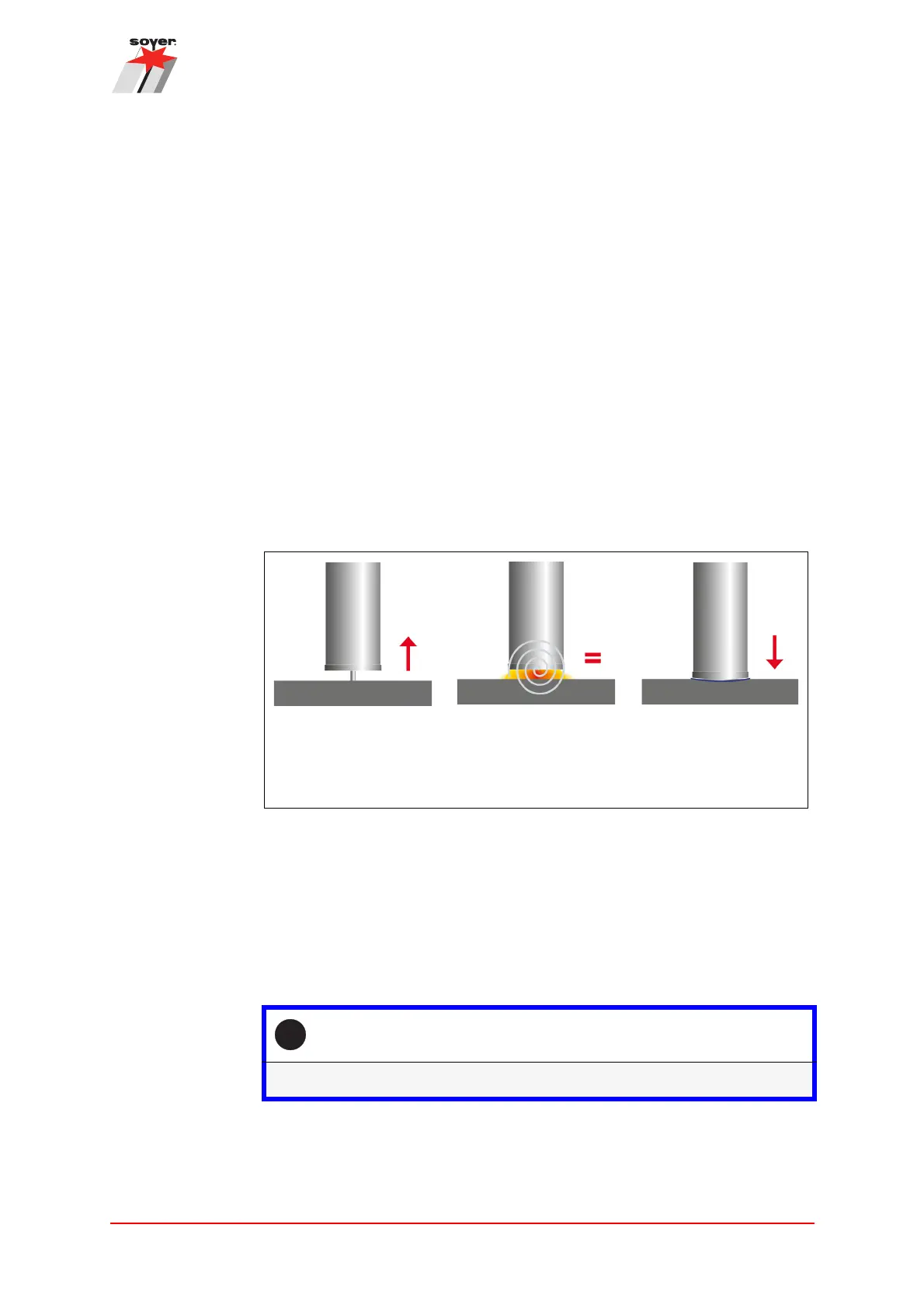

The stud tip is placed
into contact with the
workpiece and raised.
The arc is triggered.
The ignited arc is guided
through a magnetic field
and melts both join parts
on their entire surface.
The stud is immersed in
the very flat penetration
zone and is inseparably
connected.
For more information on this subject, please visit: www.soyer.com.
