Soyer PH-9 SRM12 - Adjusting the Gas Pre-Flow Time

Settings
68 Operating Instructions Soyer Bolzenschweißtechnik
13.1.4 Adjusting the gas pre-flow time
If no values have been specified, the table in chapter “13.1.1 Support tables for
device settings” on page 65 may help you to adjust the basic settings.
In the gas test mode, it can be checked whether the shielding gas flows through
the gun’s shielding gas shroud. As soon as the release button on the gun is
pressed, shielding gas flows out of the gun’s shielding gas shroud for the time set
in seconds. It is thus also possible to flush the gas lines with shielding gas before
starting work.
Adjusting the gas pre-flow time
Step 1: Connect the device as described in chapter “12.2 Connection of
the stud welding device and the stud welding guns” on page 59.

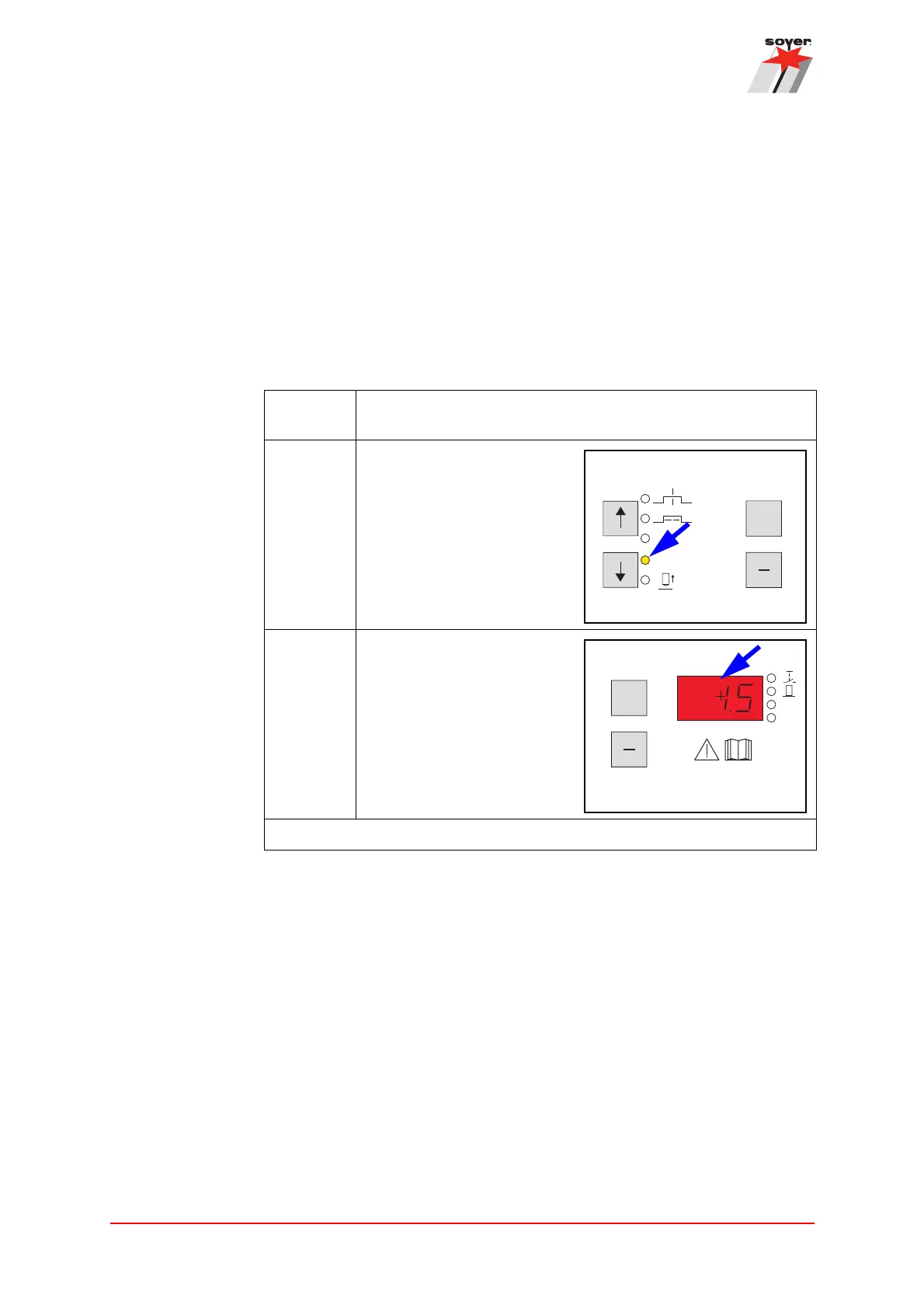

Step 2: Use the arrow keys ↑↓ to
select the position for the
gas pre-flow time.
If selected correctly, the
LED lights up.
Step 3: Use the +/- keys to set the
desired value (1-5 s) for
the gas pre-flow time on
the display.
The gas pre-flow time is adjusted.
+
