Description of the SRM® stud chuck
36 Operating Instructions Soyer Bolzenschweißtechnik

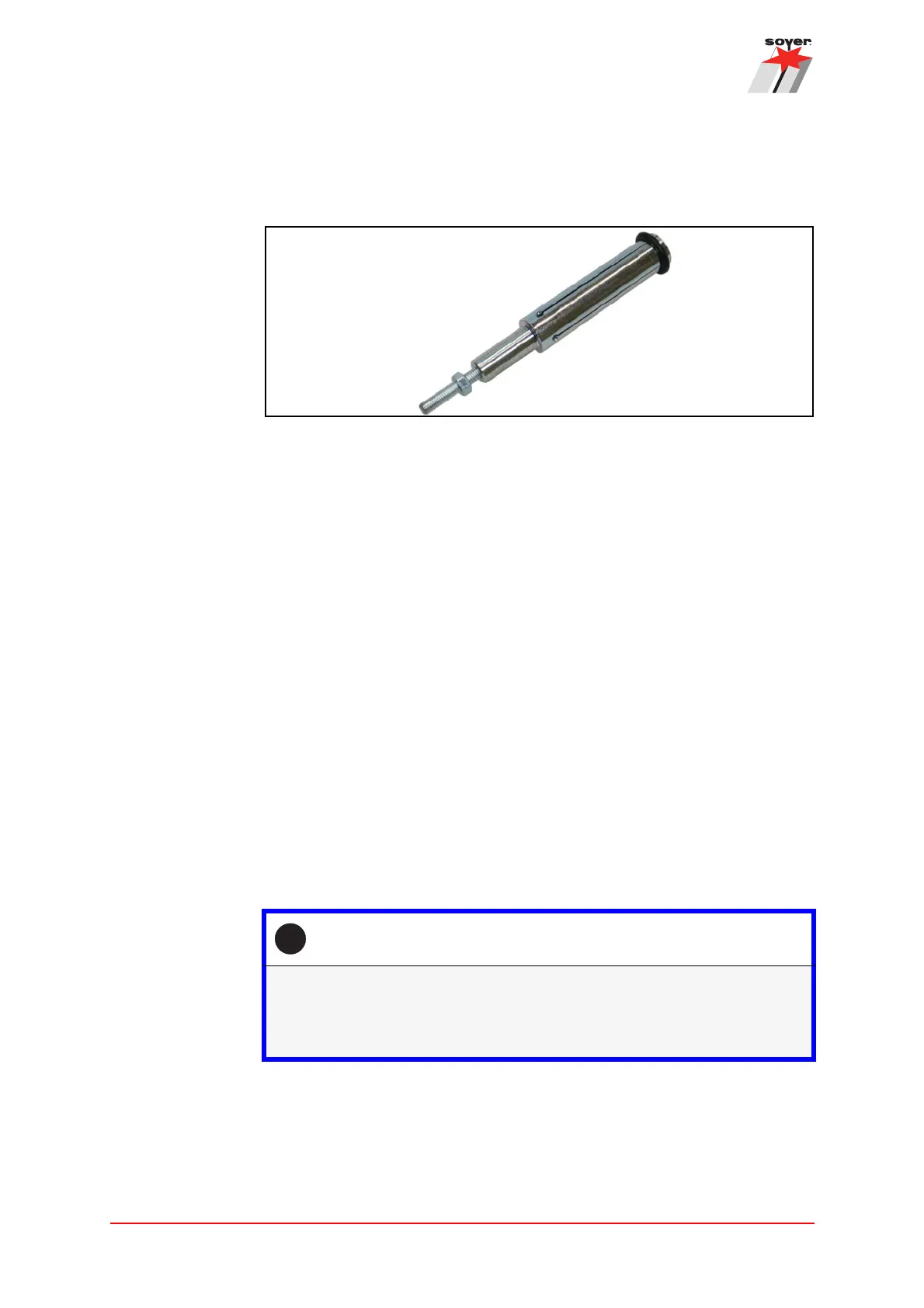

8. Description of the SRM® stud chuck
In principle, every welding gun is provided with a stud chuck that matches the
welding stud. For the SRM® welding procedure, the following stud chucks are
available:
Adjustable stud chucks:
• SRM® stud chuck M6 - F05307
• SRM® stud chuck M8 - F05215
• SRM® stud chuck M10 - F05217*
• SRM® stud chuck M12 - F05219*
* When using stud chucks with BMK-12i or BMK-16i devices.
Corresponding to the stud diameter, stud chucks must be installed/changed in the
gun.
Adjustable stud chucks must be set to the stud length.
8.1 Adjusting SRM® stud chucks
SRM® stud chucks must be adjusted to the length of the welding stud and, if
necessary, to the gun size.
The standard stud chuck can hold studs with a length of up to 60 mm.
i
For different stud diameters, different stud chucks are required.
When using studs with a length > 45 mm, the stop screw must be
shortened.
