Description of the PH-3N SRM stud welding gun
Operating Instructions Soyer Bolzenschweißtechnik 53
11. Description of the PH-3N SRM stud welding gun

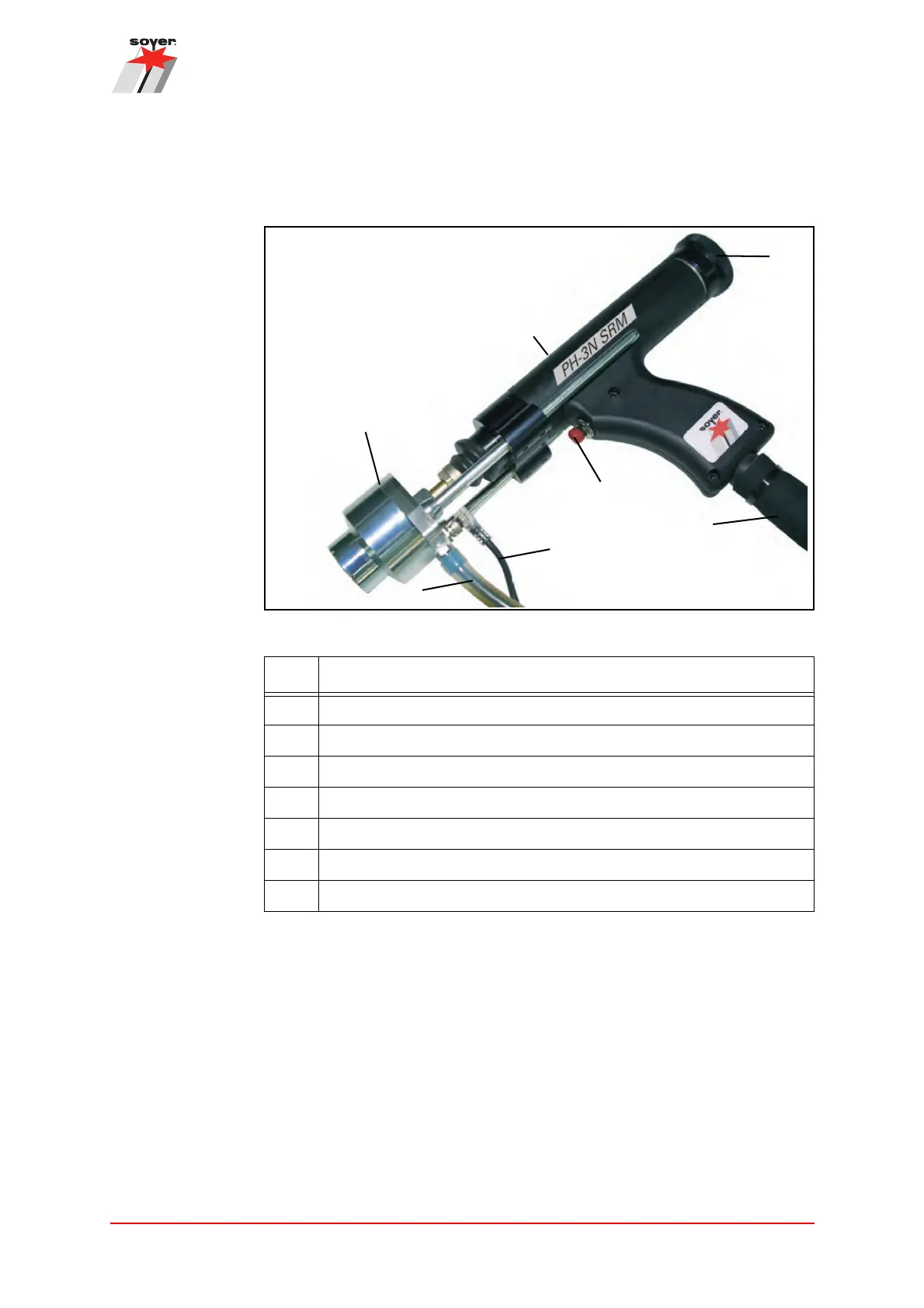

Figure 7: PH-3N SRM stud welding gun
The gun is equipped with a lifting magnet. The stud is lifted by a magnet before
the welding process and lowered automatically for welding.
The height of the lift is also decisive for the welding result.
The lift height can be determined via the lift time using the stud welding device.
See chapter “13.1.5 Adjusting the lift time (height of lift) in the setting mode” on
page 69.
The height of lift is adjusted using the dial on the gun.
Item Designation
a PH-3N SRM stud welding gun, gap welding gun with lifting magnet
b Shielding gas shroud with SRM® technology
c Release button
d Power and control cable for connection with the stud welding device
e Dial for adjusting the height of lift/lift time
f SRM® supply for connection with the stud welding device
g Gas supply for connection with the stud welding device
a
d
c
b
e
f
g
