Description of the PH-9 SRM
12
stud welding gun
38 Operating Instructions Soyer Bolzenschweißtechnik
9. Description of the PH-9 SRM
12
stud welding gun

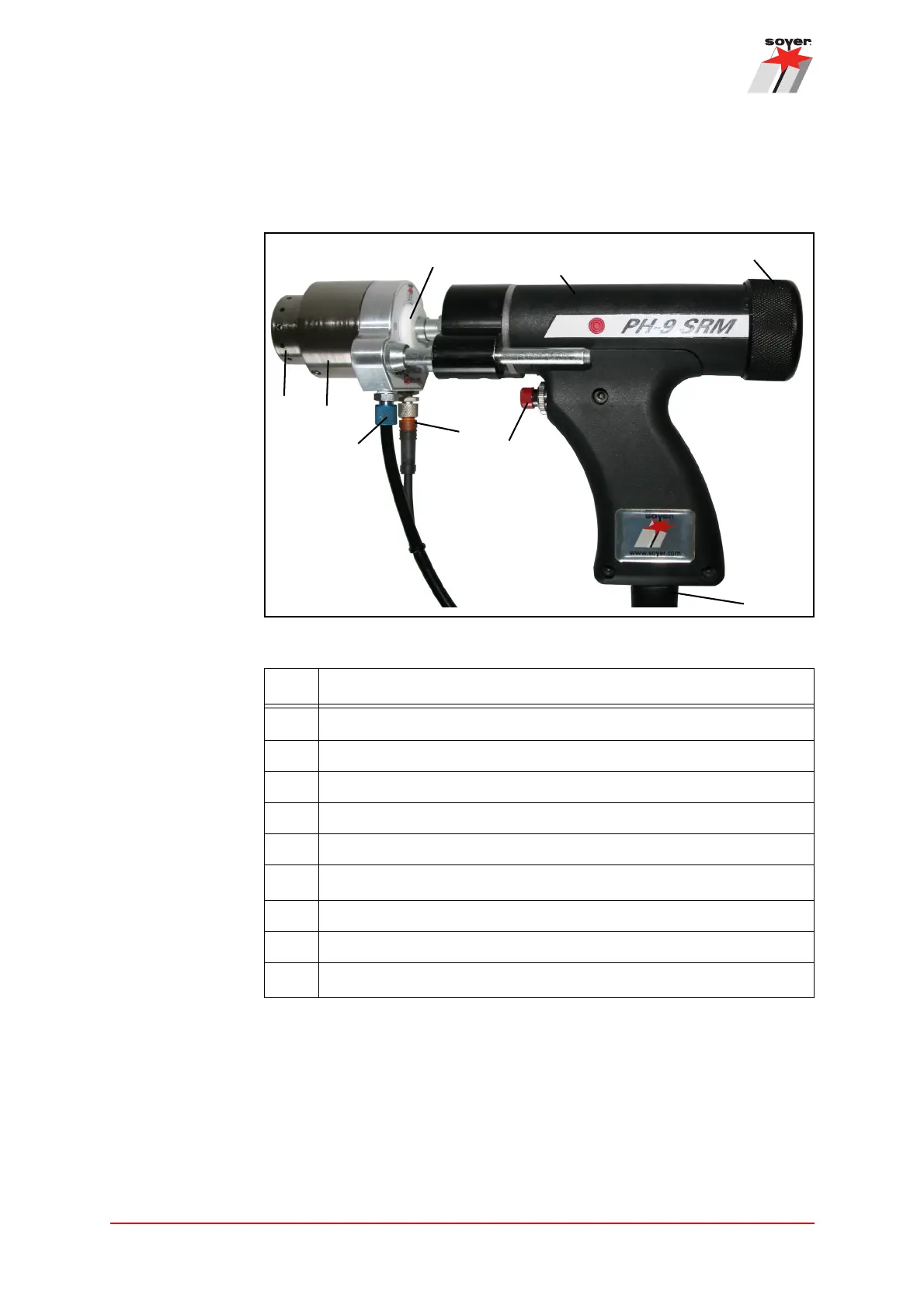

Figure 5: PH-9 SRM
12
stud welding gun
The gun is equipped with a lifting magnet. The stud is lifted by the lifting magnet
before the welding process and lowered automatically for welding.
The height of the lift is also decisive for the welding result.
The lift height can be determined via the lift time using the stud welding device.
See chapter “13.1.5 Adjusting the lift time (height of lift) in the setting mode” on
page 69.
Item Designation
a
PH-9 SRM
12
stud welding gun with lifting magnet
b Shielding gas shroud with SRM® technology
c Release button
d Power and control cable for connection with the stud welding device
e Dial for adjusting the height of lift/lift time
f
Gas insert for SRM
12
shielding gas shroud
g SRM® supply for connection with the stud welding device
h Gas supply for connection with the stud welding device
i
SRM
12
support tube insert
a
d
c
b
e
f
h
g
i
