Soyer PH-9 SRM12 - Installing the SRM Stud Chuck in PH-9 SRM 12

Description of the PH-9 SRM
12
stud welding gun
40 Operating Instructions Soyer Bolzenschweißtechnik

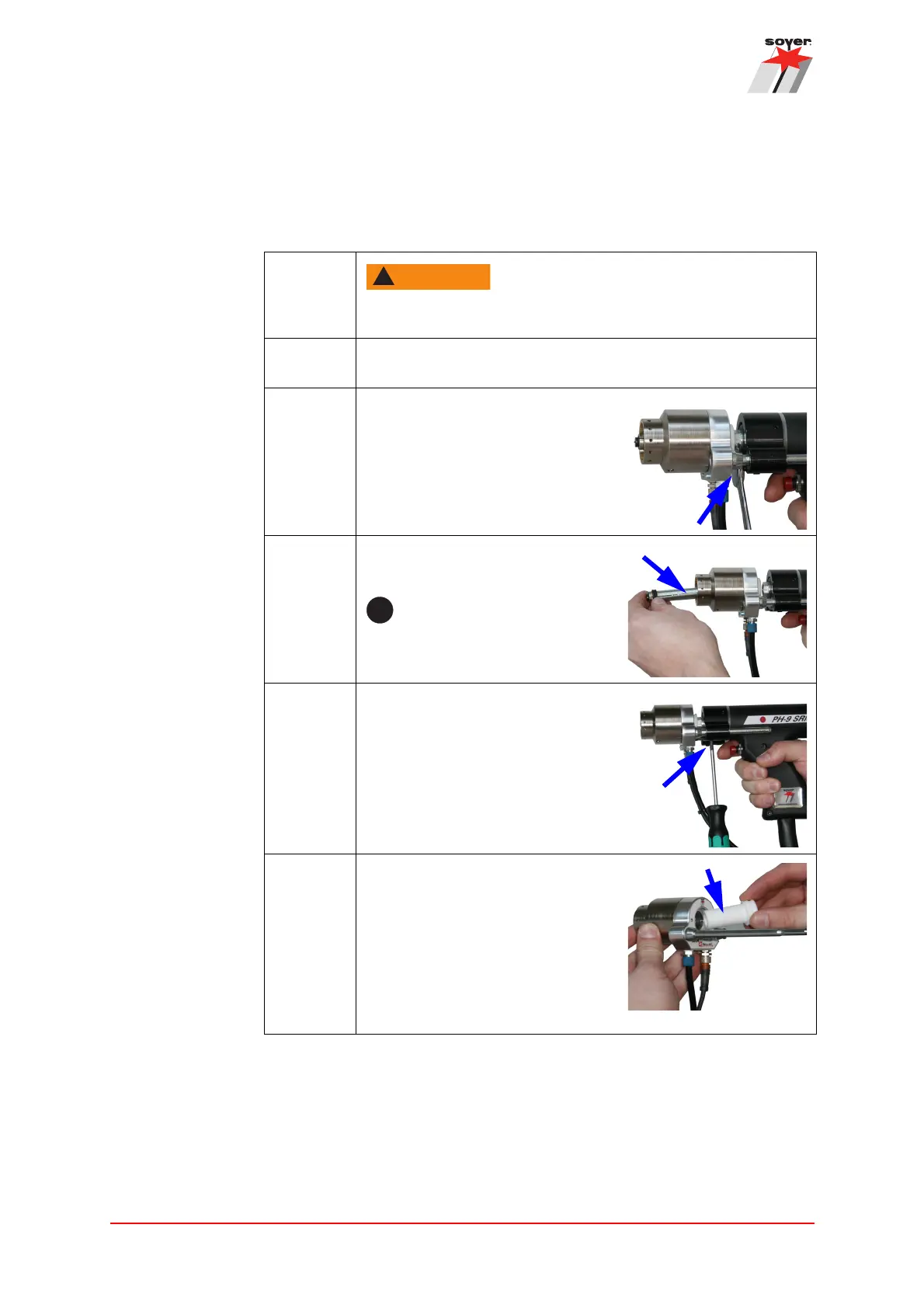

9.2 Installing the SRM® stud chuck in PH-9 SRM
12
Installing the SRM® stud chuck.
Step 1:
WARNING
WARNING
!
Switch off the stud welding device when the gun is
connected to it.
Step 2: Set the stud chuck to the desired stud (see chapter “8.1 Adjust-
ing SRM® stud chucks” on page 36).
Step 3: Undo the union nut.
Step 4: If there is still a stud chuck in the
gun, remove it.
i
It is easier to remove it if you
use pliers as an aid.
Step 5: Remove the support with the
shielding gas shroud.
To this end, loosen the four Allen
screws.
Step 6: Change the gas insert according to
the desired stud.
Gas inserts:
• Item no.: M6 = F06738
• Item no.: M8 = F06739
• Item no.: M10 = F06740
• Item no.: M12 = F06741
