12.2 Connection of the stud welding device and the stud welding guns
12.2.1 Mains connection
After installation, connect the stud welding device to power supply using the
mains plug. See chapter “7.4 Technical data of the BMK-8i ACCU stud welding
device” on page 31.

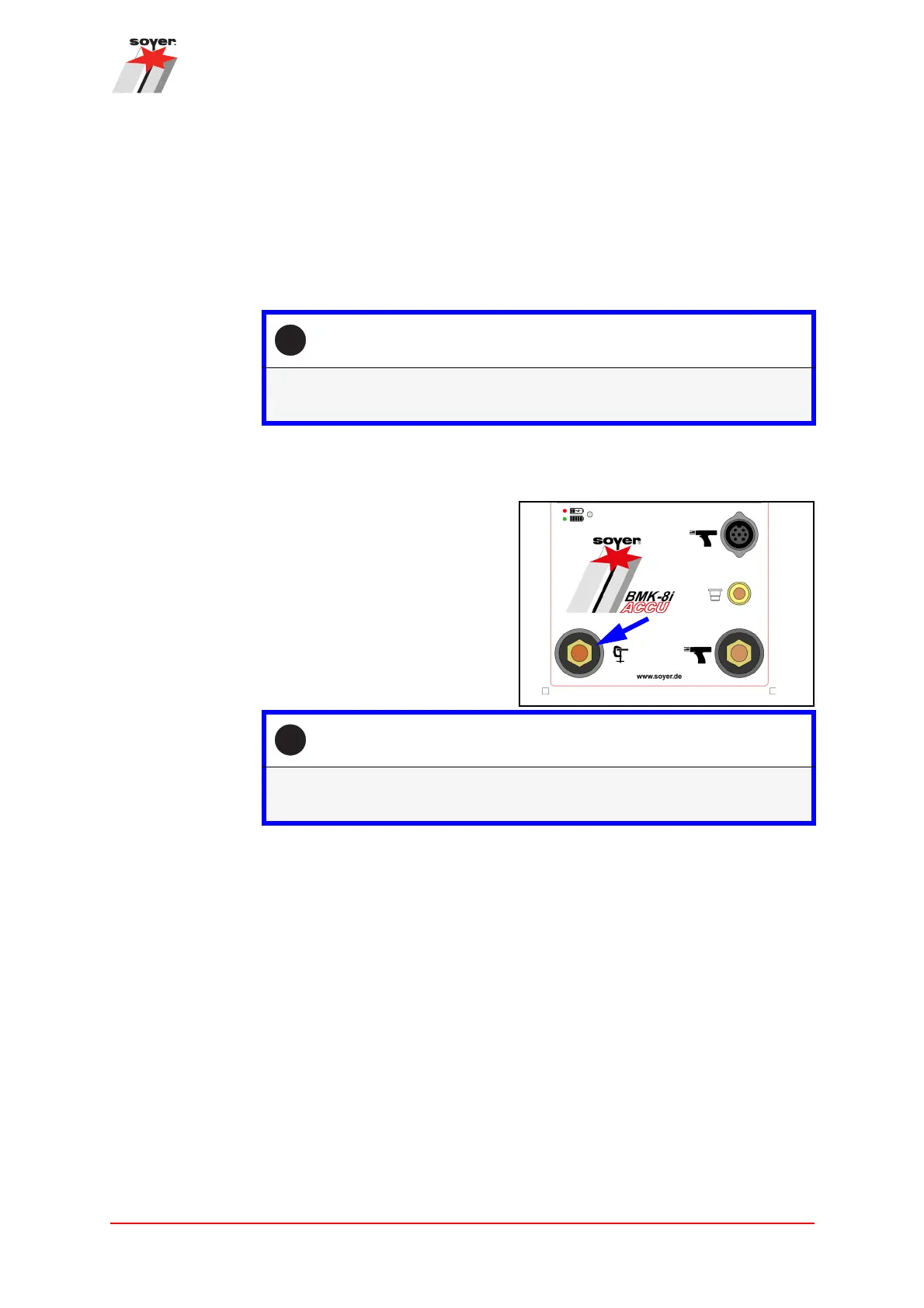

12.2.2 Connecting the earth cable
A secure earth connection must be
established between the workpiece
onto which the studs are welded
and the stud welding device.
Insert the earth cable into the socket
and turn the plug to the right up to
the stop.
Then connect the earth cable to
the workpiece (ensure a conductive
connection).
i
When switching on the device, all LEDs on the front panel light up
briefly.
i
When establishing the connection, observe the colour marking of the
cables.
