10. Description of the PH-9 SRM
12
+G stud welding
gun
PH-9 SRM
12
+G stud welding gun with integrated earth attachment (+G).

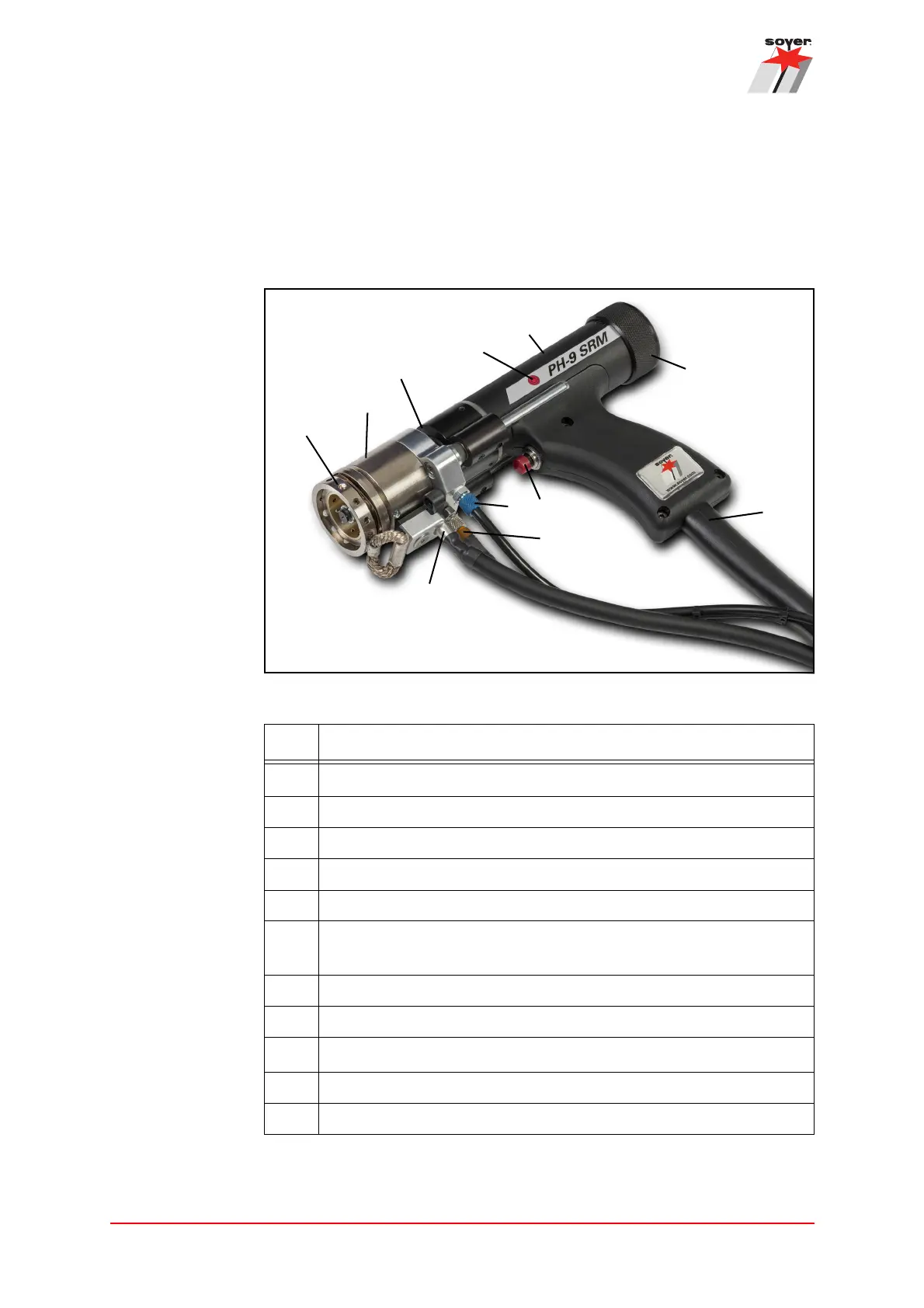

Figure 6: PH-9 SRM
12
+G stud welding gun
Item Designation
a
PH-9 SRM
12
+G stud welding gun with lifting magnet
b Shielding gas shroud with SRM® technology
c Release button
d Power and control cable for connection with the stud welding device
e Dial for adjusting the height of lift/lift time
f
Gas insert for SRM
12
+G shielding gas shroud (between the shielding
gas shroud and gun)
g SRM® supply for connection with the stud welding device
h Gas supply for connection with the stud welding device
i
SRM
12
+G support tube insert, with earth attachment
j Earth connection
k Button for two-hand release (red point on the gun’s label)
a
d
c
b
e
f
h
g
i
j
k
