Description of the BMK-8i ACCU stud welding device
Operating Instructions Soyer Bolzenschweißtechnik 27
7.3 Overview of the controls

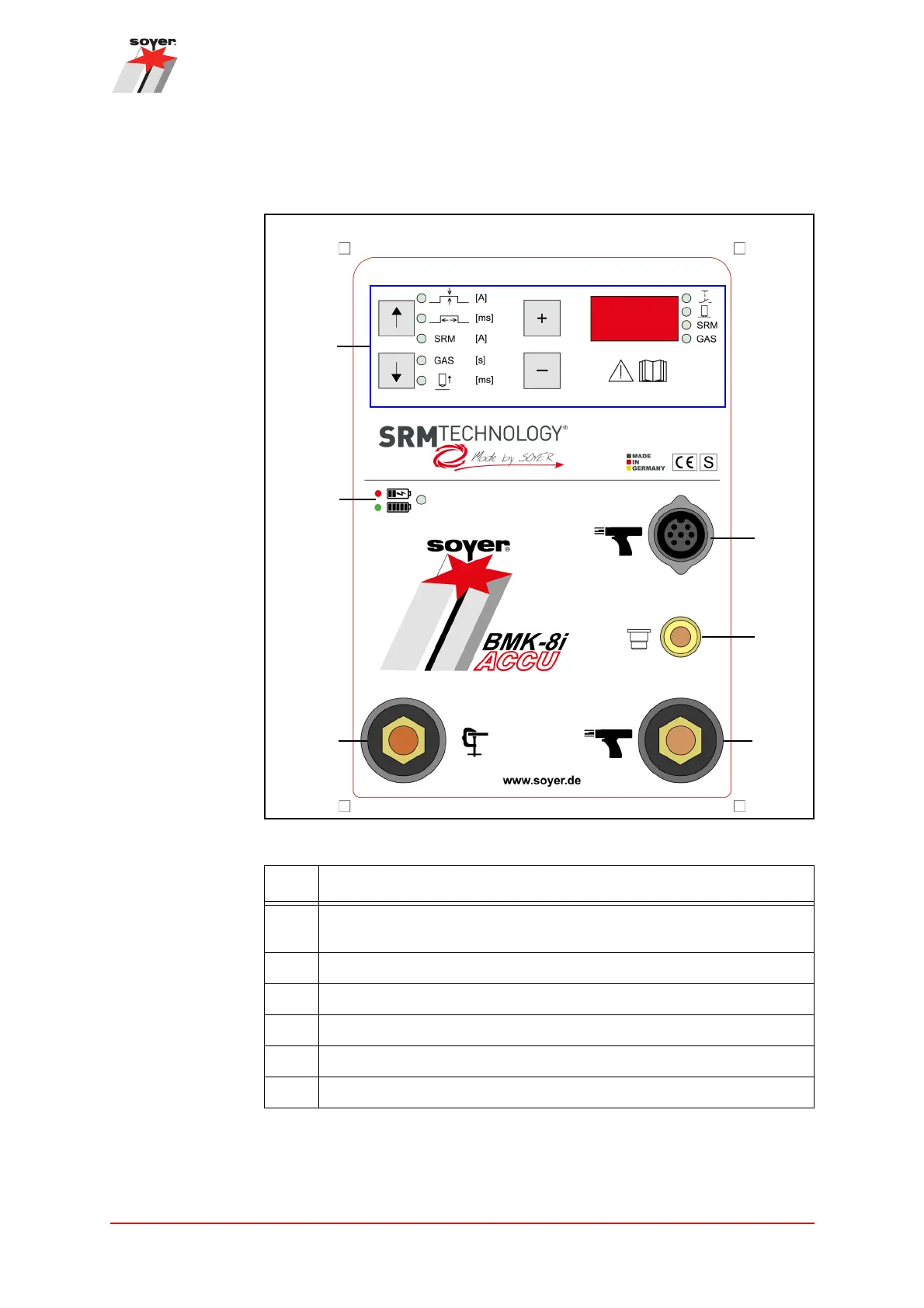

Figure 1: Overview of the front panel
Item Designation
a Selection and display range with display and function keys
(see chapter “7.3.1 Display and setting range” on page 29)
b Control cable connection of the gun
c Shielding gas connection of the gun, KD 1/4 coupling socket
d Welding cable connection of the gun
e Connection of the earth cable
f Charging status indicator of the battery
a
e
b
c
d
f
