Setup and connection
60 Operating Instructions Soyer Bolzenschweißtechnik
12.2.3 Connecting the stud welding gun
Only use the welding guns approved by the manufacturer. See chapter “7.5 Per-
mitted stud welding guns” on page 34.

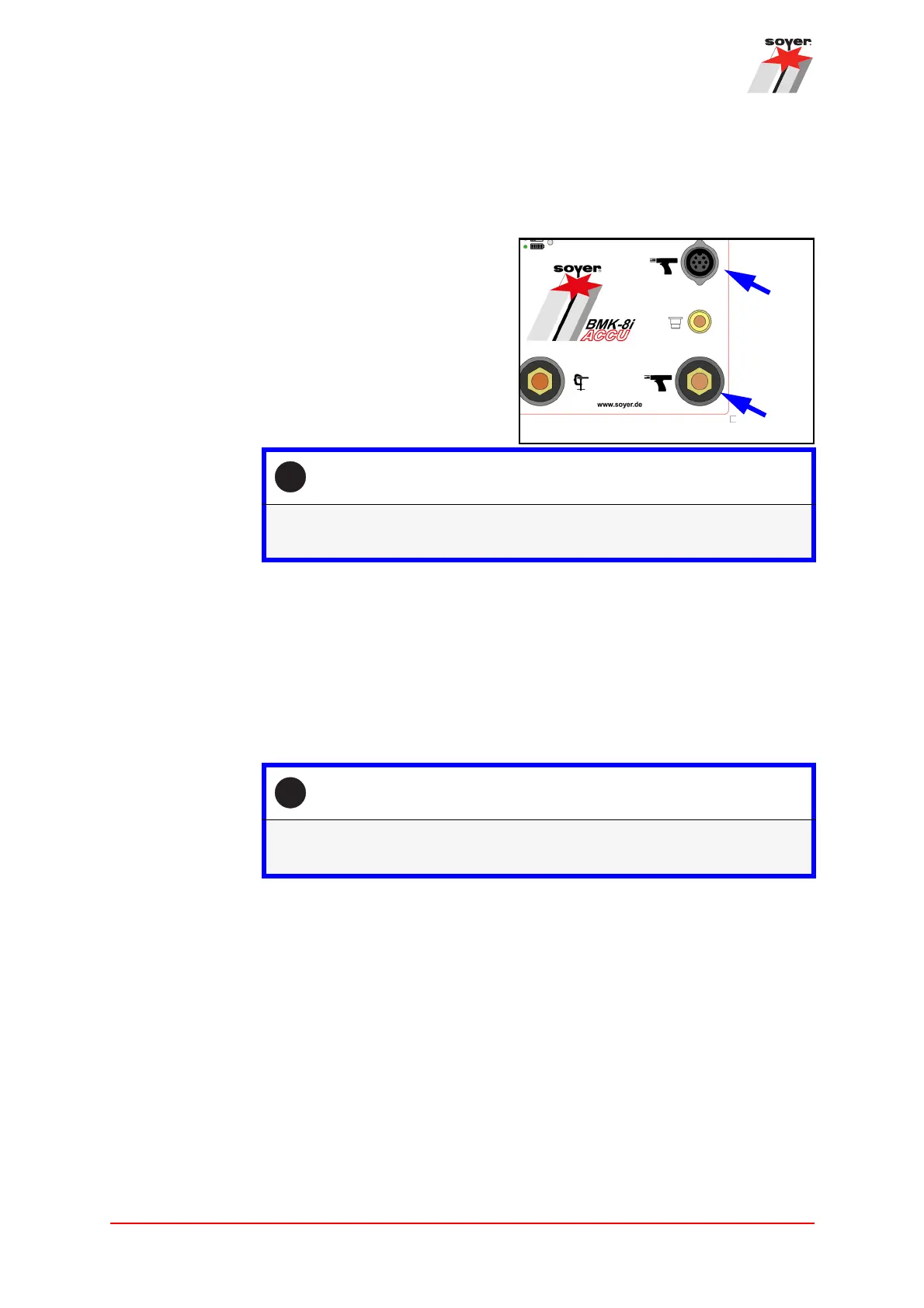

Plug the welding cable into the
socket (a) and turn the plug to
the right up to the stop.
Plug the control cable into the
control cable socket (b) and tighten
the union nut.
12.2.4 Connecting the shielding gas supply
Prior to any welding using shielding gas, an adequate gas supply connection
must be established.
The gas connection on the back panel is used to supply the stud welding device
with gas via a pressure reducer (pressure reducing valve not included in the
scope of delivery).
Make sure to check if special adapters may be required to connect the
gun (see chapter “7.5 Permitted stud welding guns” on page 34).
The maximum permissible operating value for the shielding gas quantity
is 12 l/min.
