Setup and connection
Operating Instructions Soyer Bolzenschweißtechnik 61

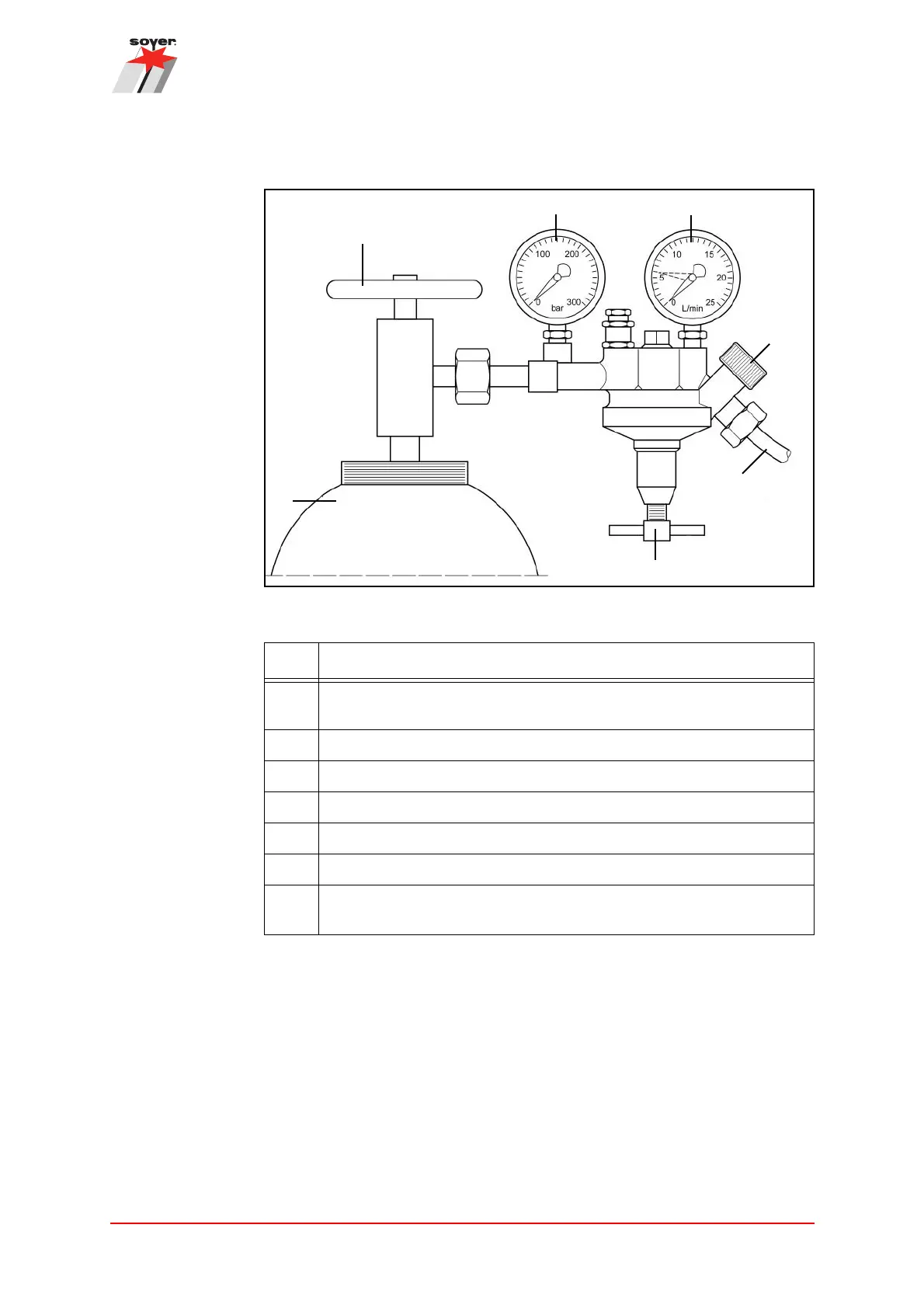

Example of a shield gas cylinder with connection fitting (not included in
the scope of delivery).
Figure 8: Example of gas supply
Item Designation
a Gas cylinder with shielding gas (for recommended mixtures, see
page 63)
b Main shut-off valve
c Manometer for displaying the gas pressure in the gas cylinder [bar]
d Gas flow meter [l/min] (pressure reducing valve)
e Shut-off valve for the gas connection hose of the stud welding device
f Gas connection hose of the stud welding device
g Valve for regulating the gas flow rate (maximum permissible gas
quantity: 12 l/min)
