Description of the PH-9 SRM
12
stud welding gun
Operating Instructions Soyer Bolzenschweißtechnik 41

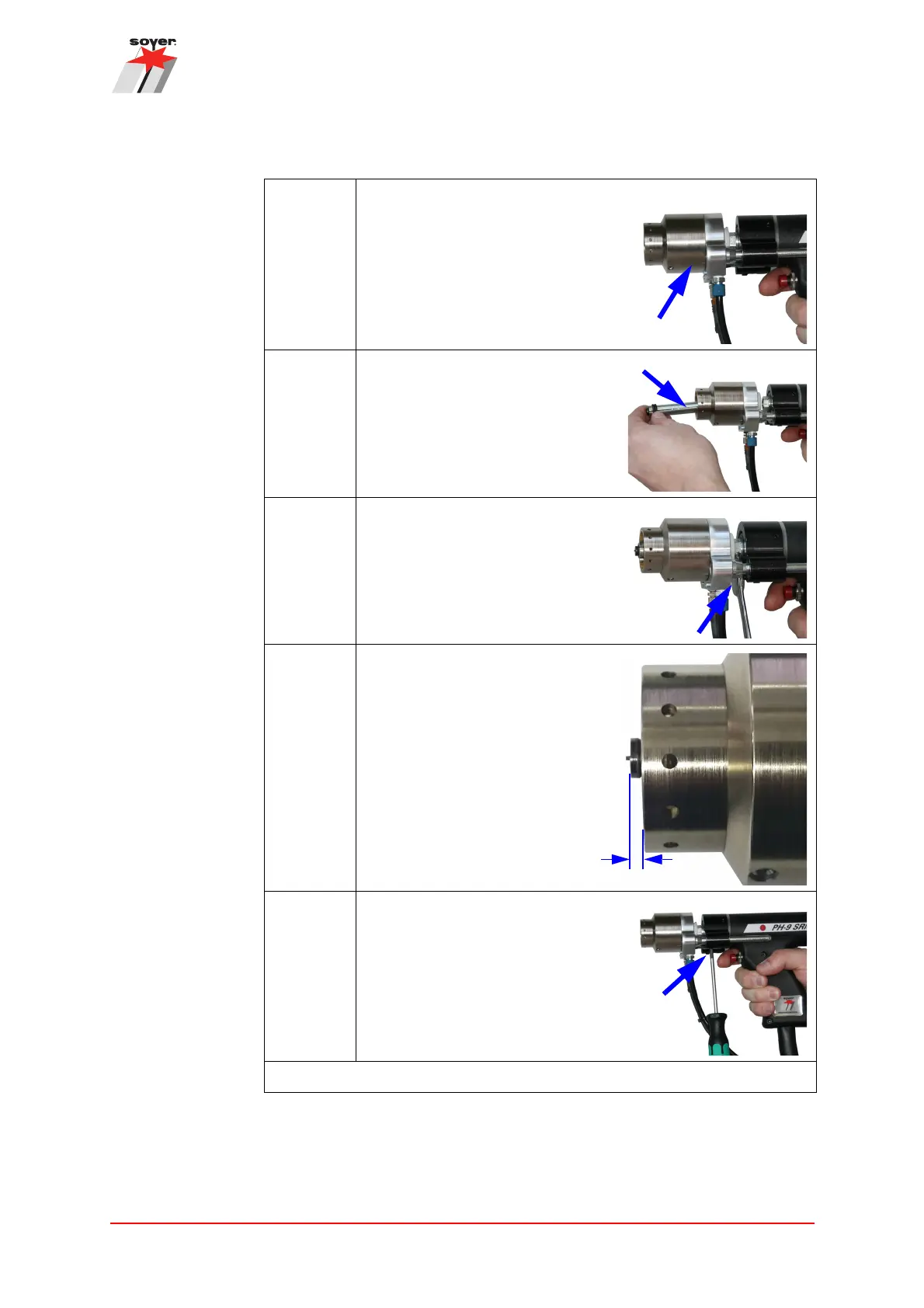

Step 7: Slide the support with the shielding
gas shroud onto the gun.
Step 8: Slide the stud chuck up to the stop
into the spring piston of the gun.
Step 9: Hand-tighten the union nut.
Step 10: Insert a stud and check the stud
protrusion.
The stud/stud flange must
protrude 1 - 1.5 mm from the
shielding gas shroud.
If applicable, correct the settings
of the stud chuck by moving the
support.
Step 11: Tighten the four Allen screws.
The assembly is complete.
Installing the SRM® stud chuck.
1 - 1.5 mm
