Description of the SRM® stud chuck
Operating Instructions Soyer Bolzenschweißtechnik 37
Adjusting
stud chucks

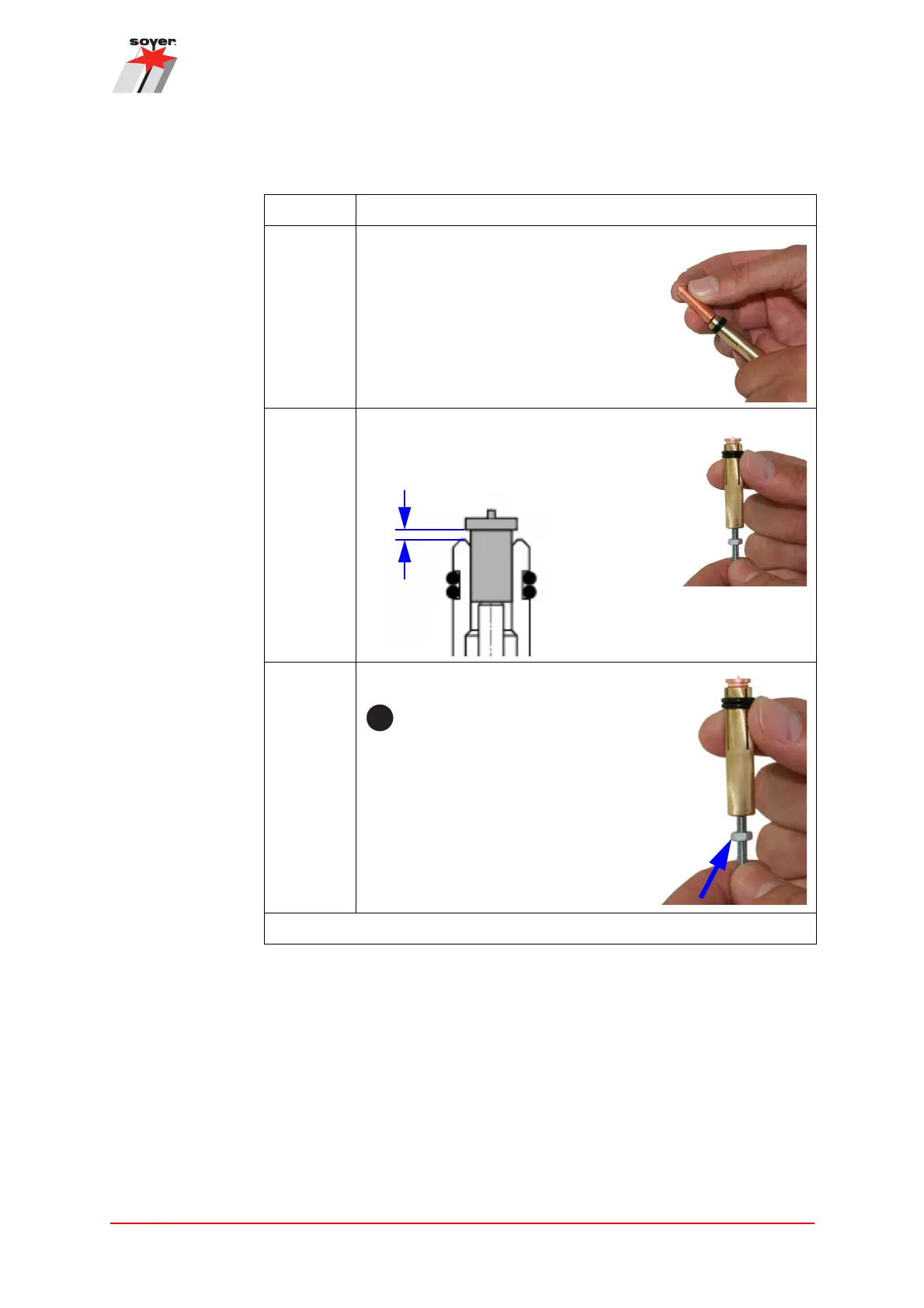

Adjusting SRM® stud chucks
Step 1: Select the stud chuck according to the required stud diameter.
Step 2: Insert the stud into the stud chuck.
Step 3: Adjust the stop screw so that the top
of the flange of the stud sits between
3 mm and 5 mm above the stud
chuck when it touches the screw.
Step 4: Fix the stop screw with the lock nut.
At a stud projection of more
than 5 mm, the required trans-
verse magnetic field is
deflected laterally, which may
result in uncontrolled SRM®
welding.
The adjustment is complete.
