Description of the PH-9 SRM
12
+G stud welding gun
Operating Instructions Soyer Bolzenschweißtechnik 51

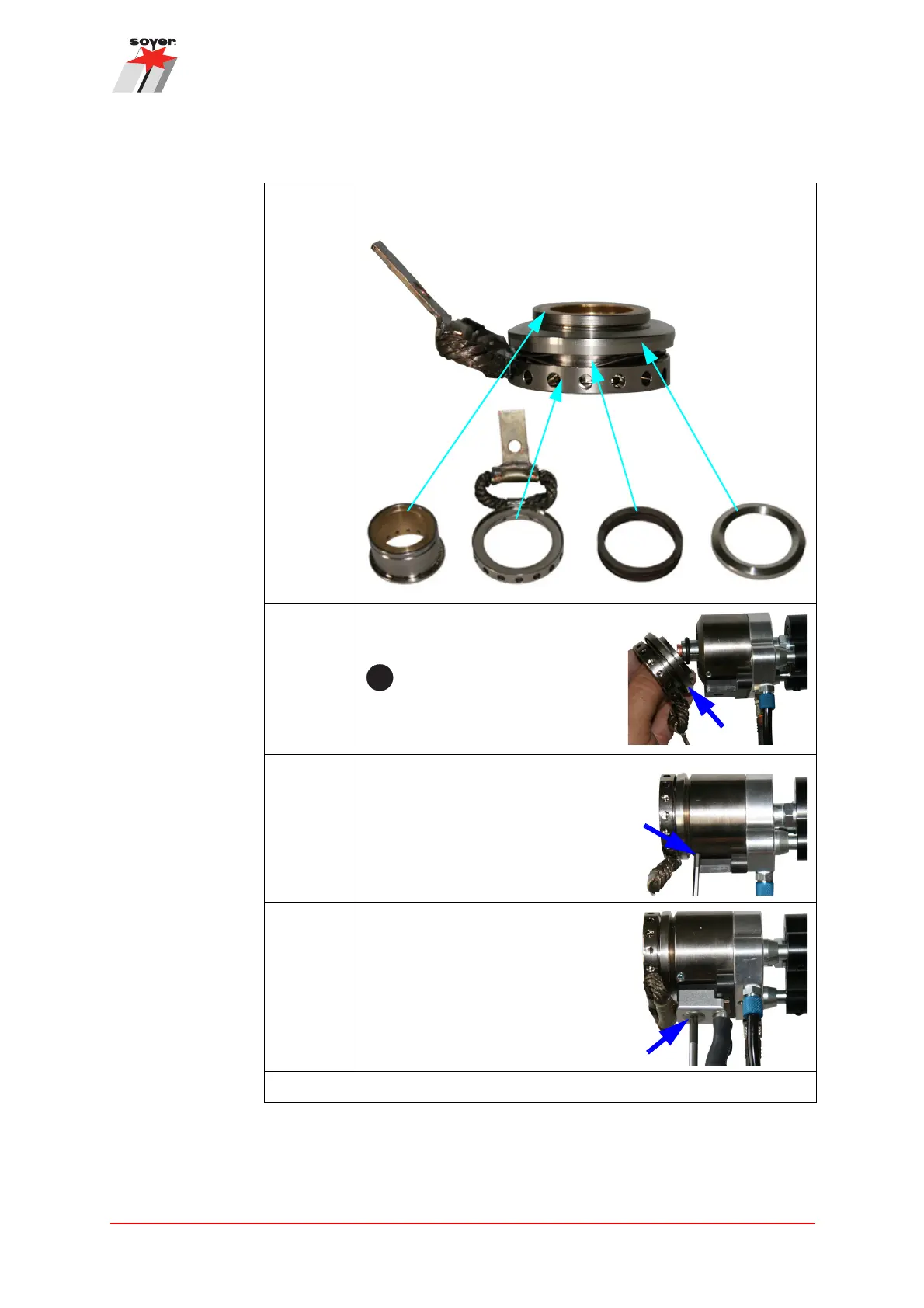

Step 5: Assemble the new support tube insert. Ensure correct order
(from left to right at the bottom) and orientation.
Step 6: Slide the new support ring up to the
stop into the holder.
i
When inserting it, make sure
that the support tube insert and
the holder surface are clean.
Step 7: Tighten the two threaded pins on the
support housing hand-tight.
Step 8: Tighten the Allen screw of the earth
connection with a tightening torque
of 2.5 - 3 Nm.
The assembly is complete.
Replacing the SRM
12
support tube insert.
