Description of the PH-3N SRM stud welding gun
56 Operating Instructions Soyer Bolzenschweißtechnik

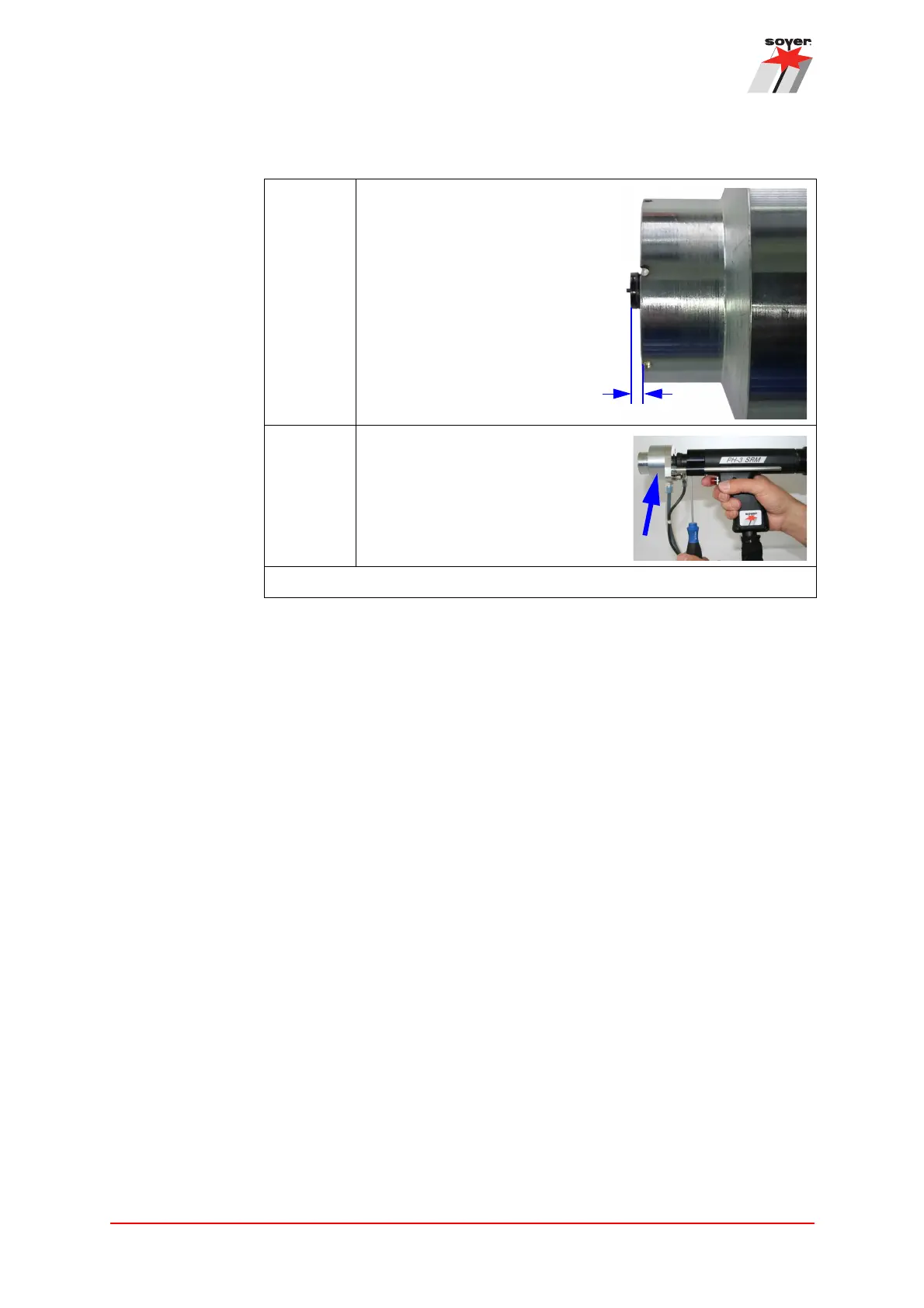

Step 8: Insert a stud and check the
stud protrusion.
The stud/stud flange must
protrude 1 - 1.5 mm from the
shielding gas shroud.
If applicable, correct the settings
of the stud chuck by moving the
support.
Step 9: Fasten the support with the shielding
gas shroud to the gun.
The assembly is complete.
Installing the SRM® stud chuck.
