Settings
70 Operating Instructions Soyer Bolzenschweißtechnik
Notes on the setting mode
• The adjustment can be repeated as often as needed. To prevent the magnetic
coil from overheating, however, it is necessary to wait for approx. one second
between two test lifts.
Step 4: Position the gun on the workpiece and
press the release button on the gun for
the welding.
The currently set value for the lift time is
shown in [ms] on the display. The longer
the lift time, the higher the height of the lift.
Experience and a few attempts are needed to determine the
correct lift time. For reference values for the correct lift time, see
chapter “13.1.1 Support tables for device settings” on page 65.
Changing the lift time:
You can change the lift time using the adjusting ring on
the welding gun for the height of lift of the stud. Pull out
the adjusting ring and turn it to make the adjustment.
Press the adjusting ring back in to fix it in place after
you have made the adjustment.
Please observe chapter “ Notes on the PH-9
SRM
12
+G welding gun” on page 71.
Step 5: Ensure that the device is in the operating mode by selecting one
of the upper three functions (green LEDs).

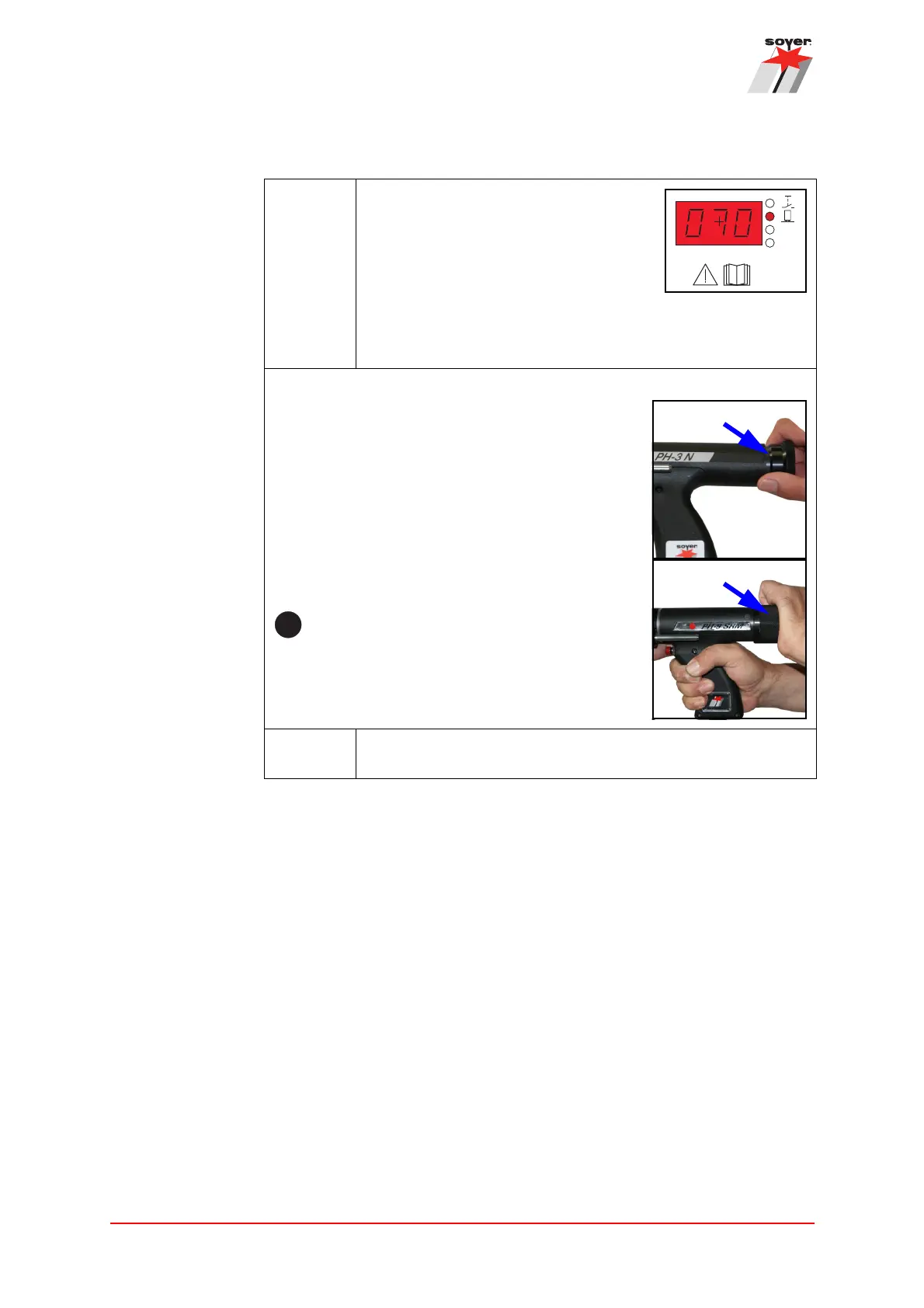

Adjusting the lift time/height of lift with the stud welding device
