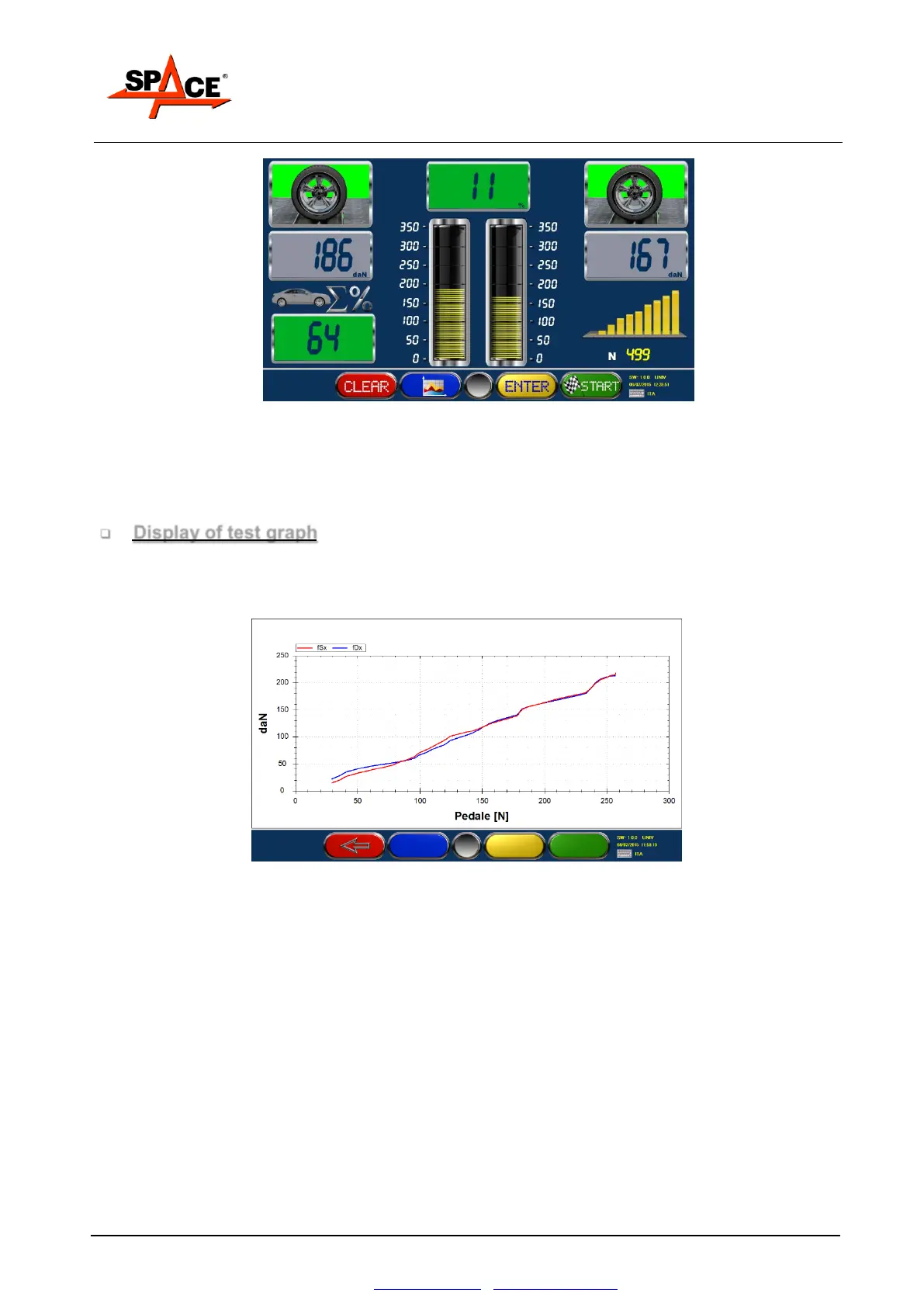

Figure 54
IMPORTANT!: To pass onto the next stage, after completing axle test, the vehicle axle must be
moved off the rollers. If the axle on the rollers is the driving axle and the brake tester motors
are not self-braking, the rollers will have to be started by means of the START/F4 key to
facilitate exit.
Display of test graph
At the end of the axle braking procedure, by pressing key F2 on the remote control, a braking
force pattern graph can be displayed.
Figure 55
The x - axis shows the left and right braking forces, while the y – axis shows the time that has
passed (see Figure 55) or the pressure applied on the brake pedal if the system features a
measuring unit.
Press STOP/F1 to exit from graph display and return to numerical test display.
NOTE. The graph shows up to 15 seconds of test from when the minimum braking threshold is
passed (normally about 20 daN).
