6-54 Programming Your Application
605C Frequency Inverter
Functional Description
LOCAL REVERSE
Range: FALSE / TRUE
Indicates demanded direction in Local Reference mode, saved on power down.
COMMS SETPOINT
Range: -300.00 to 300.00 %
This setpoint is the target reference that the Inverter will ramp to in Remote Reference Comms
mode (not including trim). The direction is always positive, i.e. forward.
MAX SPEED CLAMP
MIN SPEED CLAMP
SPEED SETPOINT
SPEED DEMAND
REVERSE
SPEED TRIM

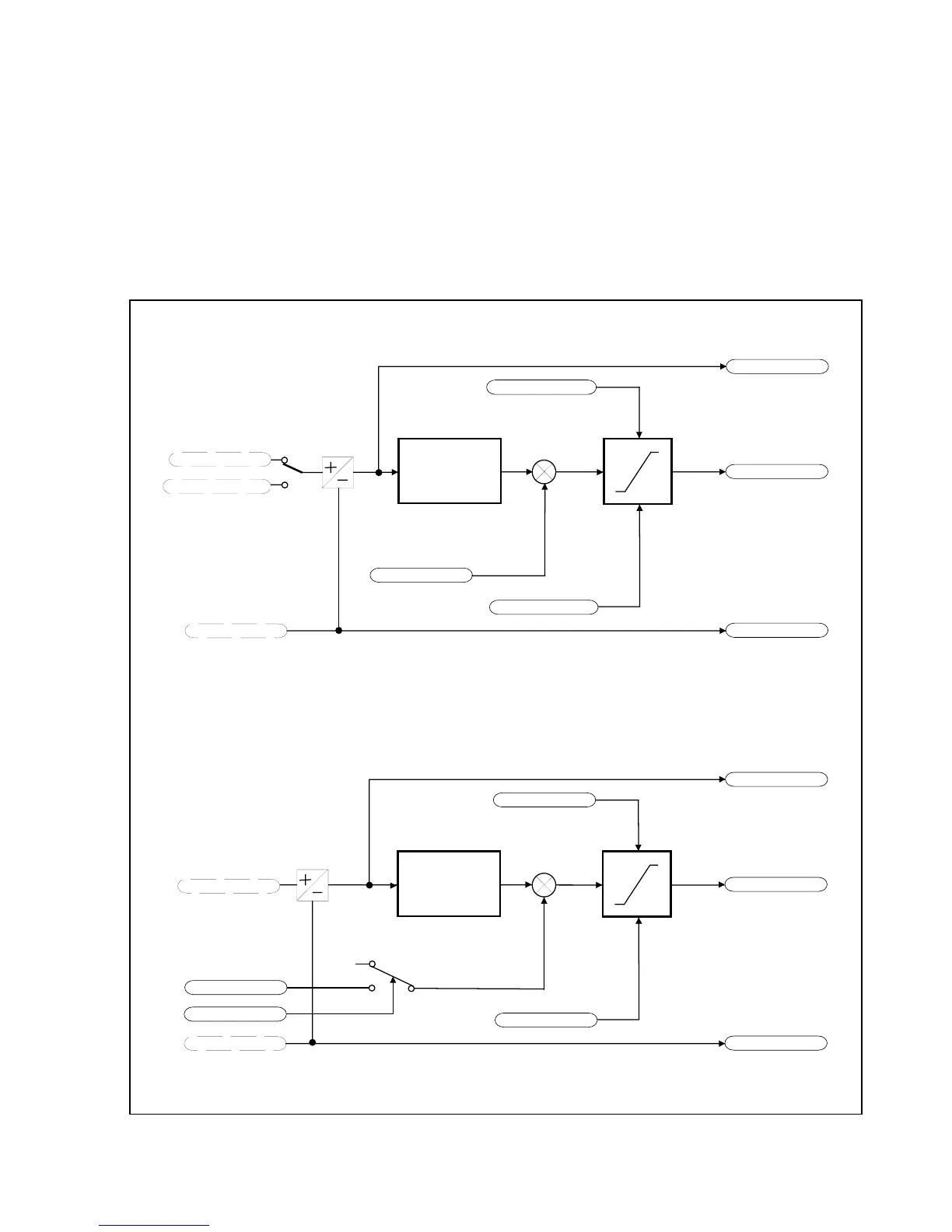

REMOTE SETPOINT *
REMOTE REVERSE *
SYSTEM
RAMP
MAX SPEED CLAMP
MIN SPEED CLAMP
SPEED SETPOINT
SPEED DEMAND
REVERSE
SPEED TRIM
TRIM IN LOCAL
LOCAL SETPOINT *
LOCAL REVERSE *
SYSTEM
RAMP
0
COMMS SETPOINT *
*
Set only from Comms, tag 269
REMOTE SETPOINT if Remote Reference Terminal mode
COMMS SETPOINT if Remote Reference Comms mode
*
Set only from the Operator Station
(Mode is selectable in COMMS CONTROL block)
Remote Reference
Local Reference
sign change
sign change
+
+
+
+
