605C Frequency Inverter
Understanding the Product Code
The 605C unit is fully identified using a ten block alphanumeric code which records how the
Inverter was calibrated, and its various settings when despatched from the factory.

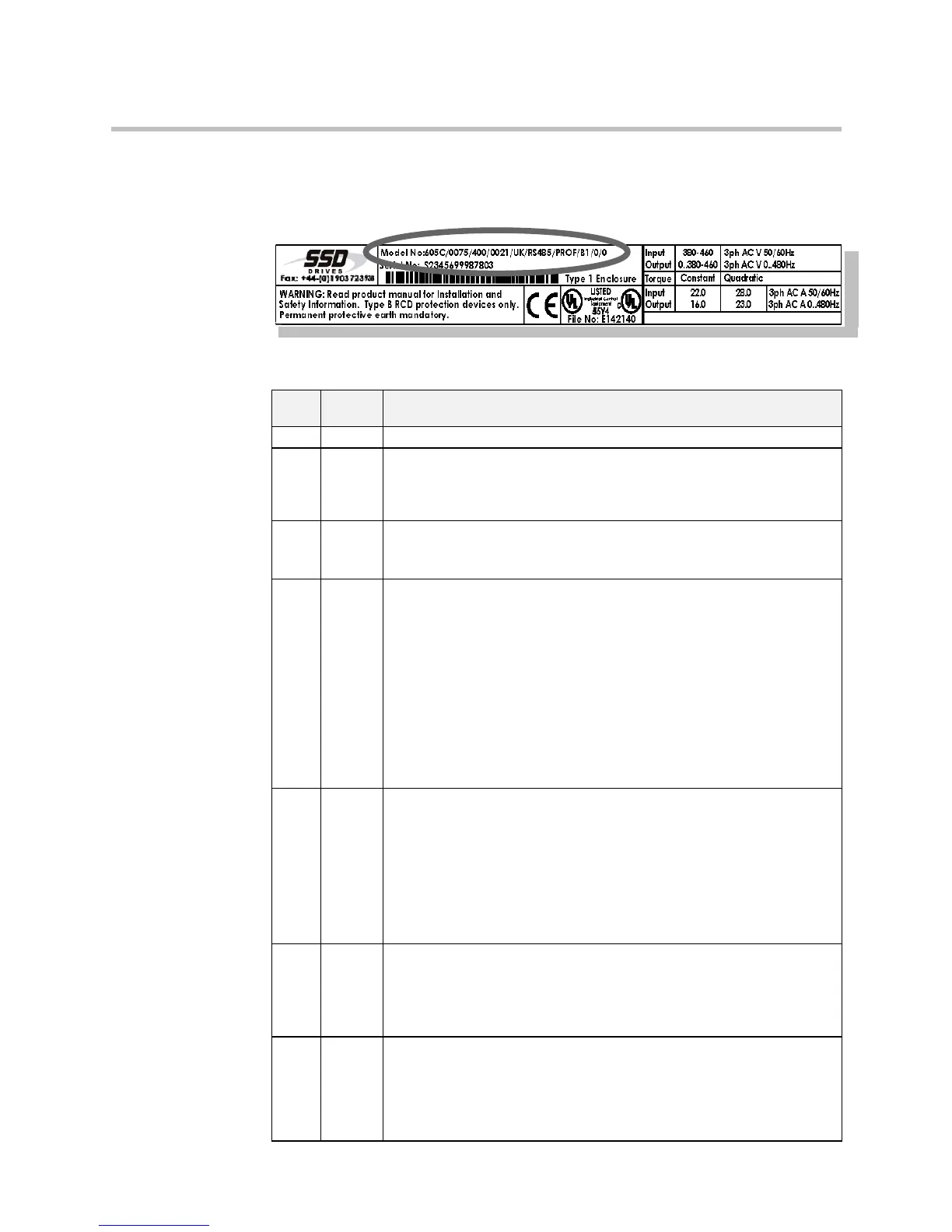

The Product Code appears as the “Model No.”. Each block of the Product Code is identified as
below:
Note: The Language field controls the default setting for the BASE FREQUENCY parameter.
Block
No.
Variable Description
1 605C Generic product
2 XXXX Four numbers specifying the power output, for example:
0055 = 5.5kW
0075 = 7.5kW
0110 = 11kW
3 XXX Three numbers specifying the nominal input voltage rating:
400 380 to 460V (
±10%) 50/60Hz
500 500V (
±10%) 50/60Hz
4 XXXX Four digits specifying the mechanical package including livery and
mechanical package style:
First two digits Livery
00 Standard SSD Drives livery
01-99 Defined customer liveries
Third digit Mechanical packaging style
1 Standard (IP20), protected panel mounting
2 IP20 and falling dirt protection (UL Type 1) wall mounting
Fourth digit Operator Station
0 No Operator Station
1 6051 Operator Station option fitted
5 XX Two characters specifying the user interface language.
These characters are the same as used for computer keyboard specifications:
UK English (50Hz)
US United States (English + 60Hz)
GR German (50Hz)
FR French (50Hz)
SP Spanish (50Hz)
P5 P Language (50Hz)
P6 P Language (60Hz)
6 XXX Three characters specifying the speed feedback option, 6054 (Technology
Option 1), installed over and above the standard features of the product:
0 No additional option fitted
RS422 Wire ended encoder feedback RS422
HTTL Wire ended encoder feedback HTTL
7 XXXX Four characters specifying the communications option protocol, 6055
(Technology Option 2), and its hardware implementation method:
0 No technology option fitted
EI00 EI ASCII/Bisync with hardware implementation 1 (RS485/422)
PROF Profibus protocol
LINK LINK protocol
