Installing the Inverter 3-11
605C Frequency Inverter
External Brake Resistor
Two standard heat
resistors are available
from SSD Drives.
These resistors should
be mounted on a
heatsink (back panel)
and covered to prevent
injury from burning.

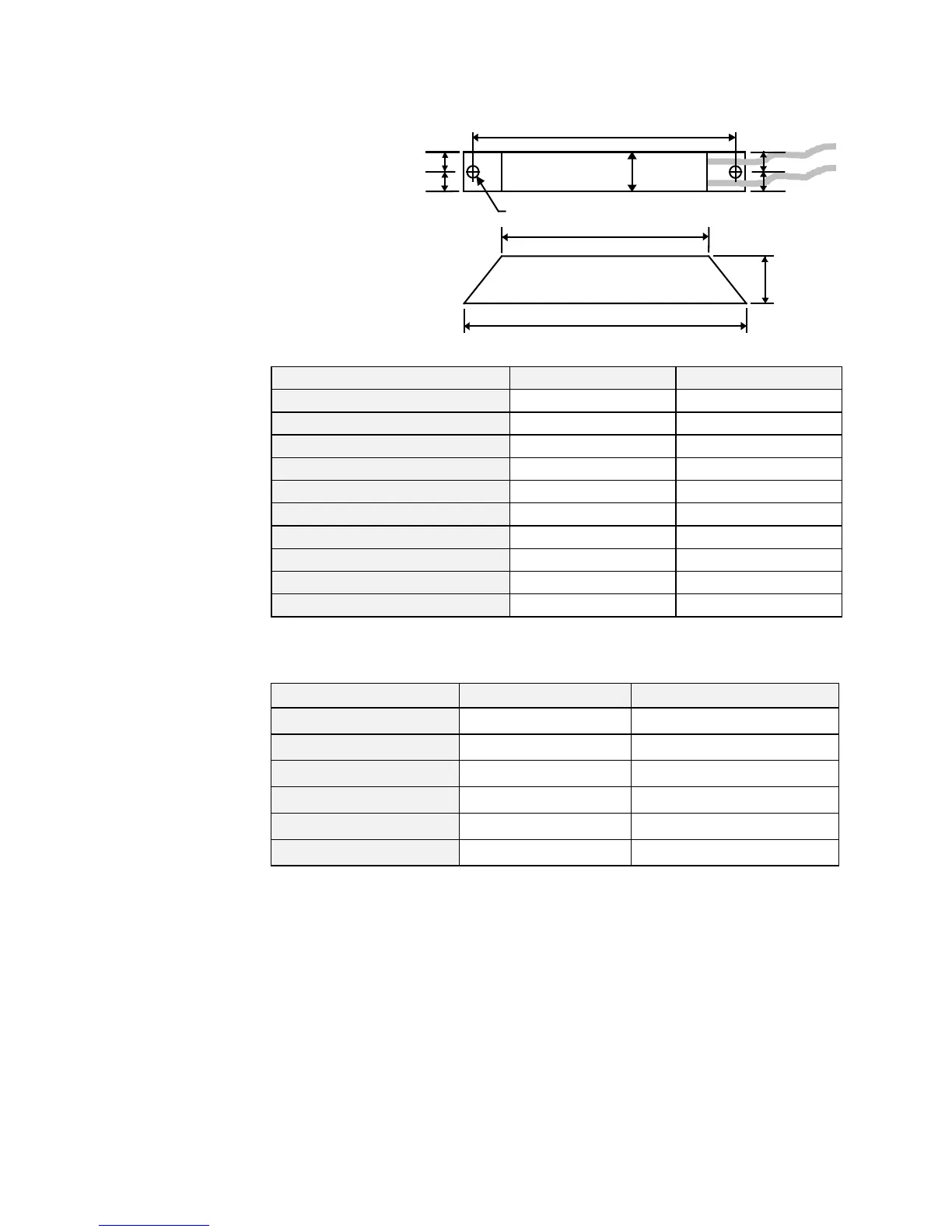

Figure 3-11
Brake Resistor
Outline Dimensions
(mm)
Part number CZ463068 CZ388396
Dimensions H1 (mm) 165 335
H2 (mm) 125 295
E (mm) 146 316
D (mm) 60 60
W (mm) 30 30
a (mm) 13 13
b (mm) 17 17
d (mm - diameter) 5.3 5.3
Flying lead length (mm) 500 500
Electrical Connection M5 spade M5 ring
Table 3-1 Brake Resistor Dimensions
H1
D
flying leads
E
H2
W
a
b
d
a
b
Part Number CZ389853 CZ463068
Resistance
100Ω 56Ω
Max wattage 100W 200W
5 second rating 500% 500%
3 second rating 833% 833%
1 second rating 2500% 2500%
Electrical connection M4 spade M5 spade
Table 3-2 Braking Resistor Details
