6-16 Programming Your Application
605C Frequency Inverter
BRAKE CONTROL
This is used to control electro-mechanical
motor brakes in hoist and lift applications.

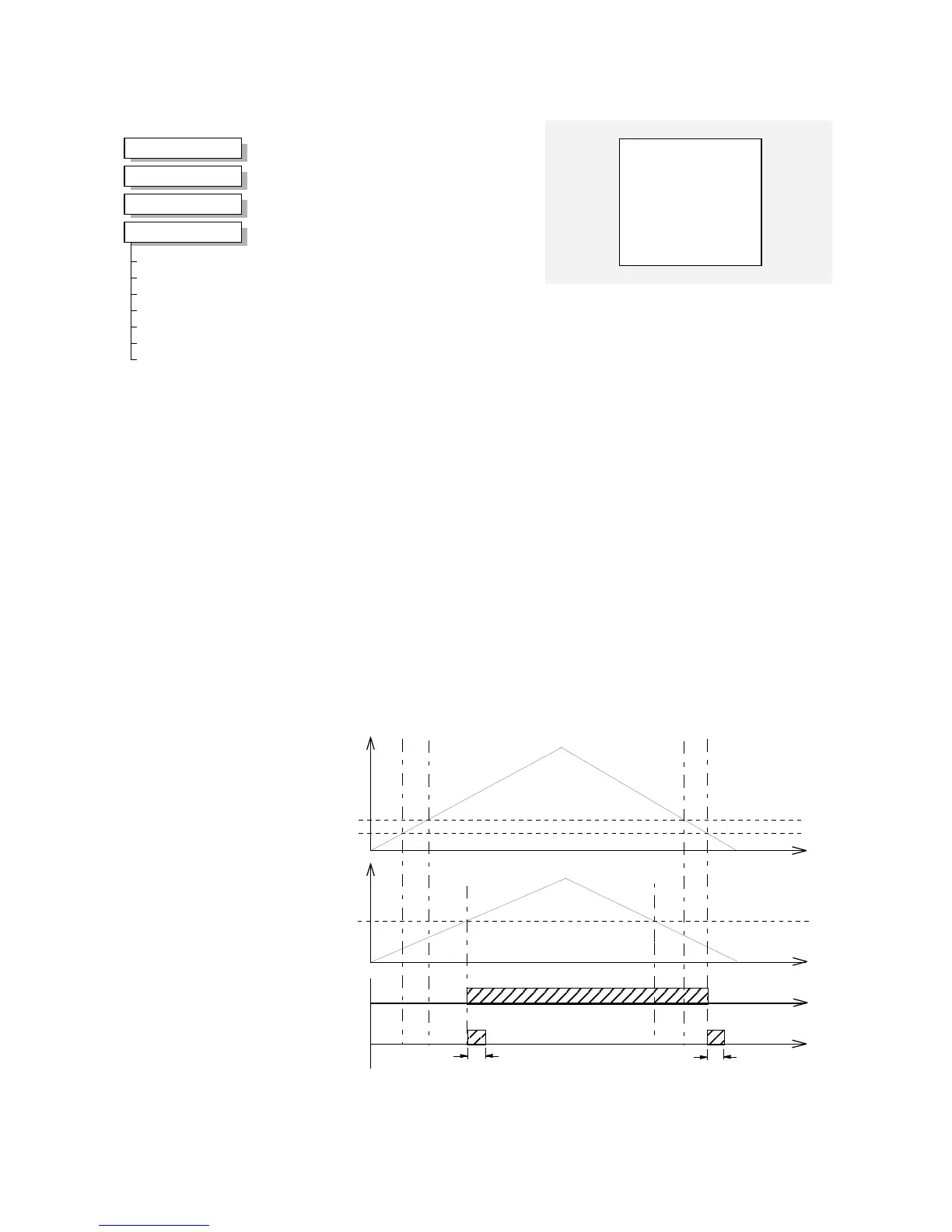

Functional Description
time
time
time
time
frequency
ON FREQUENCY
OFF FREQUENCY
RELEASE
HOLD
ON LOAD
load
t = ON HOLD TIME
t = OFF HOLD TIME
MMI Menu Map
1
SETUP PARAMETERS
2
FUNCTION BLOCKS
3
SETPOINT FUNCS
4
BRAKE CONTROL
BRAKE ON LOAD
BRAKE ON FREQ
BRAKE OFF FREQ
BRAKE ON HOLD
BRAKE OFF HOLD
BRAKE RELEASE
BRAKE HOLD
BRAKE CONTROL
RELEASE [587]
–
FALSE
HOLD [590]
–
FALSE
50.00 % – [584] ON LOAD
–
5.0 Hz
–
[585] ON FREQUENCY
–
3.0 Hz
–
[586] OFF FREQUENCY
–
0.00 s
–
[588] ON HOLD TIME
–
0.00 s
–
[589] OFF HOLD TIME
–
Parameter Descriptions
ON LOAD
Range: 0.00 to 150.00 %
Load level at which the external motor brake is applied.
ON FREQUENCY
Range: 0.0 to 480.0 Hz
Frequency at which the external motor brake is applied.
OFF FREQUENCY
Range: 0.0 to 480.0 Hz
Frequency at which the external motor brake is released.
ON HOLD TIME
Range: 0.00 to 60.00 s
Sets the duration of the pulse output on HOLD when RELEASE becomes TRUE.
OFF HOLD TIME
Range: 0.00 to 60.00 s
Sets the duration of the pulse output on HOLD when RELEASE becomes FALSE.
RELEASE
Range: FALSE / TRUE
Boolean output providing a signal to operate the brake delay
HOLD
Range: FALSE / TRUE
Becomes TRUE when the brake is toggled On or Off by the function block, and remains
TRUE for the duration set by OFF HOLD TIME or ON HOLD TIME.
